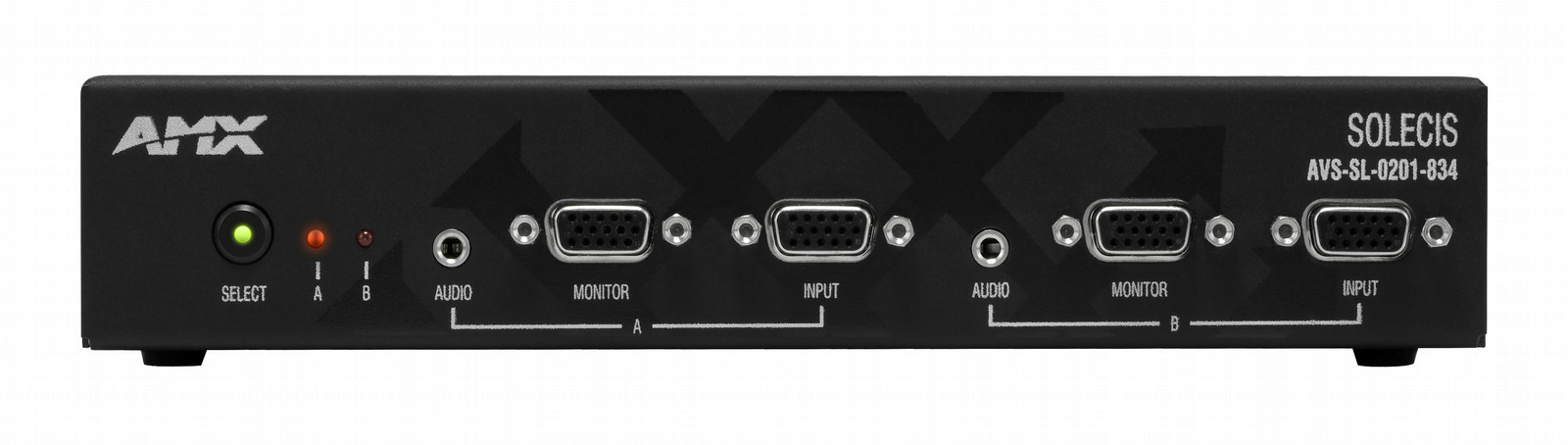

AMX AVS-SL-0201-834 video switch

AVS-SL-0201-834 - 2x1:2 RGBHV HD-15, BNC, Stereo Switcher <b>OVERVIEW</b>
The Solecis AVS-SL-0201-834 is a dual-input PC interface with stereo audio. Switching between sources can be controlled from RS-232, the front panel, auto switching with priority or via contact closure connection. Two simultaneous main outputs are available on both BNC and HD-15 connectors. The outputs are both 75 Ohms driven with TTL sync restore for connection to long cable runs. The audio inputs follow the video and are converted to balanced or unbalanced outputs. The AVS-SL-0201-834 may be used as a Single-Input Interface or a 2-Input Switcher.

<b>COMMON APPLICATION</b>
An ideal 2x1 PC switching solution for small conference and training rooms to switch between two computer sources.

<b>FEATURES</b>
- Inputs: 2 (each with buffered monitor output)
- Outputs: 1:2 (displays selected input on two buffered outputs)
- Video/Type Connector Style: RGBHV, HD-15 input, BNC HD-15 output
- Bandwidth: 250 MHz
- Stereo Audio
- Signal-Present-Based Auto-Switching
- RS-232/Contact Closure Control
