Performance
| Ethernet LAN data rates |
100, 10 Mbit/s |
| Bandwidth |
2.4 GHz |
| Modulation |
CCK, OFDM, BPSK, QPSK |
Other features
| Power LED |
Y |
| Safety |
EN 60950-1, IEC 60950-1 (CB) |
| Supported data transfer rates |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 |
Antenna
| Antenna gain level (max) |
18 dBi |
| Antennas quantity |
1 |
Power
| Input voltage |
100 - 240 V |
| Power supply |
6.5 W |
| Input frequency |
50/60 Hz |
Ports & interfaces
| Interface type |
RJ-45 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| AC adapter bundled |
Y |
| Transfer rate (Mbps) |
54 Mbit/s |
NXA-WAP250G, 802.11b/g, WPA2, WPA, 802.1x

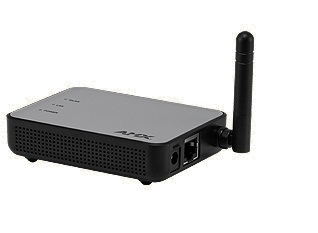

<b>802.11b/g Wireless Access Point</b>
The NXA-WAP250G 802.11b/g Wireless Access Point provides both high performance and increased security to support all Modero wireless touch panels. In addition the NXA-WAP250G provides convenient WLAN access for office/home computers with connection speeds of up to 54Mbps. It is Wi-Fi certified including enterprise-grade wireless encryption standards such as WPA2, WPA, 802.1x, and 64-bit/128-bit WEP.
- Wireless encryption standards such as enterprise-grade WPA2, WPA, 802.1x
- MAC address filtering and 64-bit/128-bit WEP encryption.
- Support for multiple VLANS (Virtual Local Area Networks), separate, secure networks can be set up and operated independently of each other through a single WAP.
- Increases deployment locations using three mode options - Access Point Mode, AP/Repeater Mode, or Bridge Mode. Use all three modes in the same network at the same time.
