Management features
Multicast support |
Y |
Quality of Service (QoS) support |
Y |
Data transmission
MAC address table |
16000 entries |
Supported data transfer rates |
10/100 Mbps |
Maximum data transfer rate |
1 Gbit/s |
Other features
Connectivity LEDs |
Y |
Networking features |
Gigabit Ethernet |
Power supply type |
AC |
Networking
Port mirroring |
Y |
Broadcast storm control |
Y |
IGMP snooping |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
IP routing |
Y |
Spanning tree protocol |
Y |
DHCP client |
Y |
DHCP server |
Y |
10G support |
N |
Ports & interfaces
SFP/SFP+ slots quantity |
2 |
Basic switching RJ-45 Ethernet ports quantity |
28 |
Console port |
RS-232 |
Security
SSH/SSL support |
Y |
MAC address filtering |
Y |
Access Control List (ACL) |
Y |
Performance
Packet buffer memory |
32 MB |
Stackable |
N |
Protocols
Management protocols |
SNMP, RMON |
Supported network protocols |
SNTP |
Operational conditions
Operating temperature (T-T) |
32 - 104 °F |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |
Additionally
Jumbo Frames support |
Y |
Wireless technologies |
Wired |

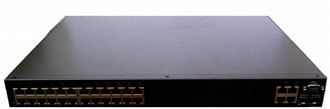

Ansel 4300. Switch type: Managed network switch, Switch layer: L3. Console port: RS-232. Networking standards: IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3u. MAC address table: 16000 entries, Supported data transfer rates: 10/100 Mbps, Maximum data transfer rate: 1 Gbit/s. Security algorithms: 802.1x RADIUS
