Technical details
| Keypad illumination |
Y |
| Processor frequency |
1000 MHz |
| Log capacity |
100000 |
| Attendance function |
Y |
| Number of templates |
200000 |
| Authentication type |
Access chip/card, Biometric, Password |
| Access code reader |
Y |
| Access chip/card reader |
Y |
| Keypad number of keys |
20 |
| Fingerprint reader |
Y |
| Built-in processor |
Y |
| Keypad integrated |
Y |
| Scan speed (min) |
0.5 mm/sec |
| Type |
Intelligent access control reader |
| Number of users |
5000 user(s) |
| Backlight |
Y |
Ports & interfaces
| PC connected |
Y |
| RS-485 ports |
1 |
| USB port |
Y |
Power
| DC voltage range |
10 - 12 V |
Display
| Built-in display |
Y |
| Display type |
TFT-LCD |
Dual-Core 1GHz Processor, 512M DDR3+2GB Flash, 3.5” TFT, WiFi, TCP/IP, RS485, USB, PoE, DC 12V 1A

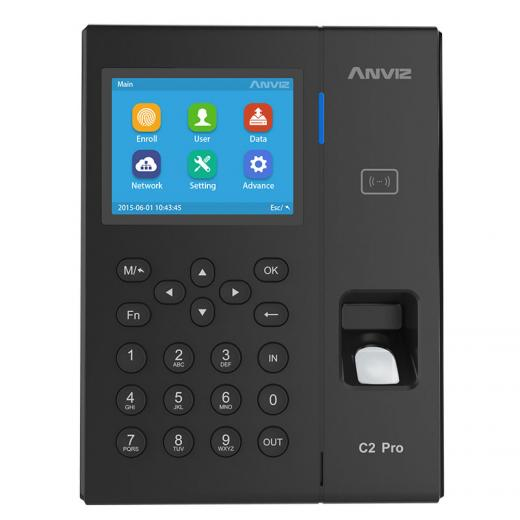

C2 Pro is a high performance time and attendance terminal aimed to the middle and high-end market. Equipped with highly efficient Dual-Core 1GHz processor, C2 Pro sustains higher performance by finishing the comparison in less than 0.5 seconds. Friendly GUI and 3.5 inches TFT LCD make C2 Pro is easy to use. It support several RFID reader module (HID, ALLEGION or ANVIZ) and RS485, PoE-TCP/IP or WiFi communication for different requirements. Based on Linux operation system, C2 Pro offers SDK and EDK for further customization of the system. It also provides 1 relay for the ringbell and a connecting to the Access Control system. All the above to meet your requirements.
- Linux platform to provide a safe and stable performance
- Finish the comparison in less than 0.5s
- Embedded fingerprint templates to IC card to realize more safety comparison on 1:1
- PoE-TCP/IP or WiFi communication for different requirements
- Provide 1 relay for belling and connecting to Access Control system
- RS232 interface can be connected to a Time & Attendance printer
- Using new material as cover make it more attractive and durable
- With humanized design, the entirely new rubber keypad brings better user experience
- Bigger and brighter 3.5 inch color display
- Installation became fast & easy through optimal design of wall-mounted board
- Ease the experience of user by brand new UI design
