Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
N |
| Cabling technology |
10/100/1000Base-T(X) |
Memory
| Memory clock speed |
533 MHz |
| Memory layout (slots x size) |
1 x 1 GB |
| Memory slots |
1x SO-DIMM |
| Maximum internal memory |
2 GB |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
Processor special features
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel 64 |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2 |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Processor package size |
22 mm |
| Processor ARK ID |
36331 |
| Processor code |
SLB73 |
Other features
| Ethernet interface type |
Gigabit Ethernet |
| Supported hard disk drive interfaces |
Serial ATA II |
| Number of hard drives supported |
1 |
| Networking features |
Gigabit Ethernet |
| Graphics adapter family |
Intel |
| Maximum number of SMP processors |
1 |
| Cooling type |
Passive |
Processor
| Conflict Free processor |
N |
| Tjunction |
90 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
12 |
| Processor operating modes |
32-bit |
| Processor front side bus |
533 MHz |
| Processor cache type |
L2 |
| Stepping |
C0 |
| Processor cores |
1 |
| Processor frequency |
1.6 GHz |
| ECC supported by processor |
N |
| Bus type |
FSB |
| Number of Processing Die Transistors |
47 M |
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.5 W |
Storage
| Hard drive capacity |
320 GB |
| Compatible memory cards |
CF |
| Total storage capacity |
320 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA II |
| Number of hard drives installed |
1 |
| Hard drive size |
2.5 " |
Performance
| Audio system |
HD |
| Motherboard southbridge |
Intel ICH7 |
Ports & interfaces
| Line-out |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
Y |
| Serial ports quantity |
2 |
| DC-in jack |
Y |
Design
| Cable lock slot |
Kensington |
Graphics
| On-board graphics adapter family |
Intel GMA |
| On-board graphics adapter |
Y |
Additionally
| InTru™ 3D Technology |
N |
| Processing die size |
26 mm² |
| Graphics |
GMA 950 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel Atom N270 (512K Cache, 1.60 GHz, 533 MHz FSB), 1GB DDR2, 320GB SATA II HDD, Gigabit Ethernet, Intel GMA 950GSE, 1.08kg

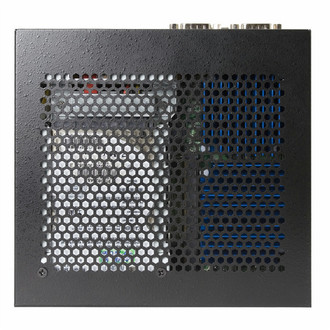

Digital Engine DE2700 is the easy-to-install media player with built-in processor and memory
With integrated graphic and latest Intel Atom technology to suit the most demanding digital signage or kiosk application with affordable pricing
Quick and easy deployment
- Atom N270 CPU on board and 1G DDR memory pre-installed
- Quick bay on the front panel (for 2.5” SATA storage and CF slot with IDE interface)
HD content support with affordability
- DVI-I interface to support dual display
- Media content support up to 480P/720P
Expansion flexibility
- MiniCard slot x1 for optional Wireless 802.11b/g/n, or TV tuner card
Reliability for application market
- Fanless design
- RS232 x2, Giga-LAN x2, USB 2.0 x4
- 65W adapter, optional of 12V cable kit
