Other features
| Hard drive size |
2.5 " |
| Number of processors installed |
1 |
| Processor system buses supported |
533 MHz |
| Power LED |
Y |
| Internal memory |
2 GB |
Ports & interfaces
| Serial ports quantity |
2 |
| DVI port |
Y |
| Headphone outputs |
1 |
| Microphone in |
Y |
Motherboard
| Supported processor frequency (max) |
1.66 GHz |
Storage
| Number of storage drives supported |
1 |
| Compatible memory cards |
CF |
| Card reader integrated |
Y |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
2.5 W |
| Processor cores |
1 |
| Processor frequency |
1.6 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
Memory
| Supported memory types |
DDR2-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
2 GB |
Graphics
| Graphics adapter family |
Intel |
Audio
| Audio system |
Realtec ALC662 |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Chipset |
Intel 945GSE Express |
| Graphics |
GMA 950 |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
DE2700, Intel Atom N270, Intel 945GSE + ICH7M, 2GB DDR2 So-DIMM, 1 x SATAII 2.5" HDD bay, Intel GMA 950GSE, 2.0ch. HDA, Gigabit Lan, 4 x USB2.0, 1.22kg, Black

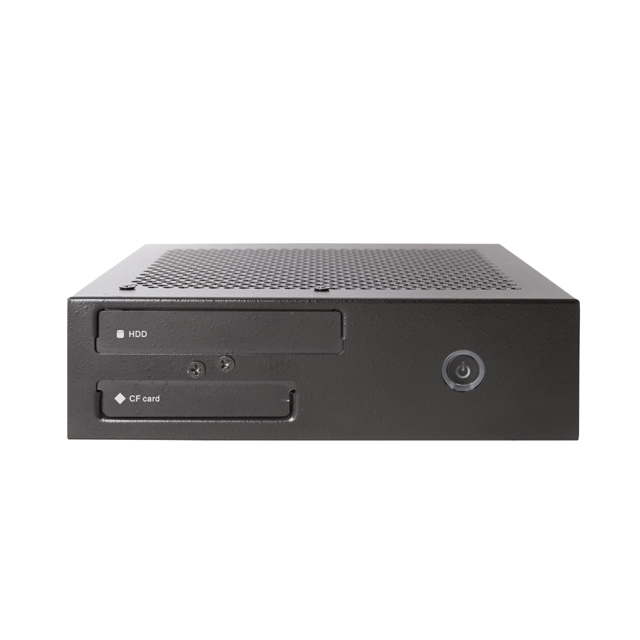

Quick Silver DE2700
Digital Engine DE2700 is the easy-to-install media player with built-in processor and memory
With integrated graphic and latest Intel Atom technology to suit the most demanding digital signage or kiosk application with affordable pricing
Quick and easy deployment
- Atom N270 CPU on board and 1G DDR memory pre-installed
- Quick bay on the front panel (for 2.5” SATA storage and CF slot with IDE interface)
HD content support with affordability
- DVI-I interface to support dual display
- Media content support up to 480P/720P
Expansion flexibility
- MiniCard slot x1 for optional Wireless 802.11b/g/n, or TV tuner card
Reliability for application market
- Fanless design
- RS232 x2, Giga-LAN x2, USB 2.0 x4
- 65W adapter, optional of 12V cable kit
