Performance
| Noise level |
45 dB |
| Audible alarm(s) |
Y |
Power
| Input operation voltage (max) |
278 V |
| Input operation voltage (min) |
160 V |
| Efficiency |
95.8% |
| Maximum current |
2 A |
| Power supply input frequency |
45/65 Hz |
| Surge energy rating |
273 J |
| Output power capacity |
500 VA |
| Output power |
300 W |
Operational conditions
| Non-operating altitude |
0 - 9000 m |
| Operating altitude |
0 - 3000 m |
Battery
| Battery recharge time |
8 h |
| Typical backup time at half load |
13 min |
| Typical backup time at full load |
4 min |
| Replacement battery cartridge |
APCRBC110 |
| Cold start |
Y |
| Number of batteries supported |
1 |
Ports & interfaces
| AC outlets quantity |
4 AC outlet(s) |
Other features
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |

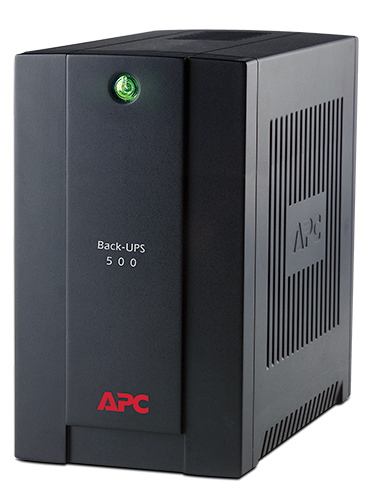

Back-UPS 500VA, 300W, 230V, 4x Schuko CEE 7, 5.5kg
BC500-RS Features
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- LED Indicators
Provide easy-to-read status of the unit and utility power conditions.
- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
- Replace Battery LED
An external Replace Battery LED informs the end-user that the battery needs to be replaced.
- Cold-start capable
Provides temporary battery power when the utility power is out.
- Disconnected battery notification
Warns when a battery is not available to provide backup power.
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Protection
- Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
- Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Availability
- Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Serviceability
- Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Manageability
- Audible alarms
Provides notification of changing utility power and UPS power conditions
- LED status display
Quickly understand unit and power status with visual indicators.
Safety
- Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
