Performance
| Noise level |
55 dB |
| Audible alarm(s) |
Y |
Battery
| Battery type |
RBC117 |
| Battery recharge time |
3 h |
Power
| Efficiency |
98% |
| Output voltage THD |
5% |
| Power supply input frequency |
50/60 Hz |
| Surge energy rating |
540 J |
| Output power capacity |
3000 VA |
| Output power |
2700 W |
Other features
| Interface |
SmartSlot |
| Nominal input voltage |
120 V |
| Nominal output voltage |
120 V |
Design
| Form factor |
Rackmount/Tower |
Operational conditions
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
Ports & interfaces
| AC outlets quantity |
7 AC outlet(s) |

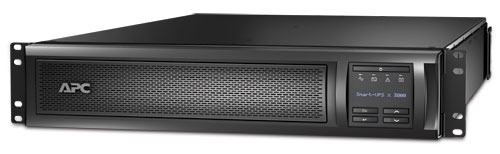

Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart
Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
InfraStruXure Central compatible
Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
SmartSlot
Customize UPS capabilities with management cards.
Cold-start capable
Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Scalable runtime
Allows additional run time to be quickly added as needed.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
