Aqua Computer 23654

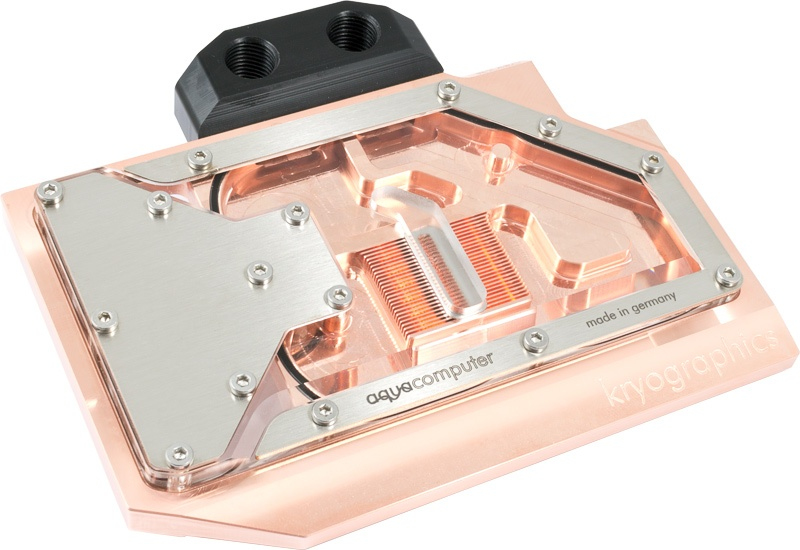

Copper, plexiglass, Derlin, G1/4 Combined GPU/RAM/VRM-cooler for graphics cards of the type Radeon RX 480 with 8 GB or 4 GB GDDR5 according to reference design. This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat watercooler. Additionally the voltage regulators are also cooled effectively.

By incorporating a microstructure with jet plate, the kryographics for RX 480 water block offers outstanding cooling performance and a low flow resistance. The voltage regulator area is supplied with coolant parallel to the GPU area through channels inside the acrylic cover. Due to high precision manufacturing, not only the GPU but also the RAM modules have direct contact to the water block for excellent heat transfer. All relevant areas of the water block are polished for perfect contact to the graphics card. For the voltage regulators, a thermal pad with high thermal conductivity is included. All mounting threads are equipped with spacers made from nickel plated brass for easy installation and to prevent twisting the graphics card.

The kryoconnect water block series features a Delrin connection terminal that has a significantly reduced flow resistance compared to the previous aquagraFX series. The terminal is fastened to the water block by three screws and has G1/4 inlet and outlet ports on each side for flexible installation. Two sealing screws are supplied to seal the unused connection threads. The terminal can be replaced with kryoconnect kits for Crossfire configurations (art. no. 23551, 23552 or 23553, not included in delivery).
