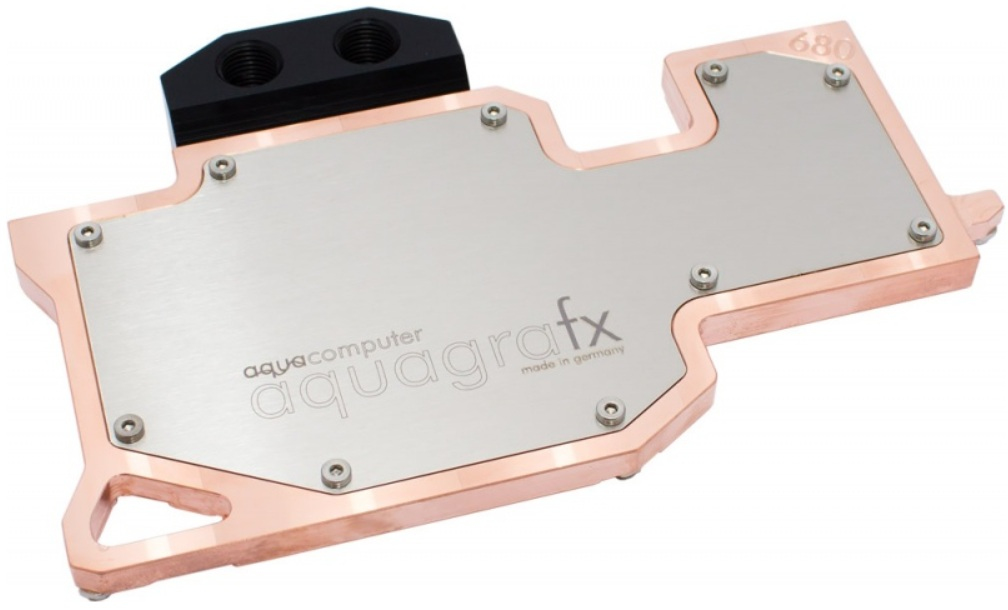

aquagraFX for GTX 680 type 2 G1/4
Combined GPU/RAM/VRM-cooler for graphics cards of the type nvidia GeForce GTX 680 with 2048 MB RAM according to reference design.
This cooler combines the features of a graphics chip cooler and RAM-coolers in an elegant and very flat watercooler. Additionally the voltage regulators are also cooled effectively.
The aquagraFX for GTX 680 offers outstanding cooling performance and a low flow resistance. All mounting threads are equipped with spacers for easy installation and to prevent twisting the graphics card. The areas contacting the GPU and RAM modules are polished for excellent heat transfer. For the voltage regulators, a thermal pad with high thermal conductivity is included.
This water block features the delrin connection terminal first intorduced with the aquagraFX 480/470/460 series. The terminal is fastened to the water block by three screws and has G1/4 inlet and outlet ports on each side for flexible installation. Two sealing screws are supplied to seal the unused connection threads. The terminal can be replaced with twinConnect kits for SLI configurations (art. no. 23497, 23501 or 23532, not included in delivery)
Materials:
- Base part: Copper
- Top cover: Stainless steel
- Terminal: Delrin
Scope of delivery:
- cooler without connectors (screw threads G 1/4)
- mounting material incl. thermally conductive pad
- two sealing plugs for unused connection threads
- Torx screwdriver (for removal of the air cooling unit)
