Technical details
| Compatible tubes (Outer x Inner) |
10.6 x 6.0 |
| Fan connector |
4-pin |
| Maximum airflow |
74 cfm |
| Radiator |
Y |
| Supported processor sockets |
Socket AM3+, Socket FM2, Socket FM2+, Socket FM1, Socket AM3, Socket AM2 |
| Fan speed (max) |
1350 RPM |
| Fan speed (min) |
500 RPM |
| Number of fans |
2 fan(s) |
| Fan |
Y |
Design
| Radiator material |
Aluminium |
Weight & dimensions
| Radiator width |
82 mm |
| Fan diameter |
120 mm |
| Tube length |
326 mm |
| Fan thickness |
25 mm |
| Radiator depth |
82 mm |
| Radiator height |
40 mm |
Power
| Pump voltage |
12 V |
| Fan current |
0.25 A |
| Fan voltage |
12 V |

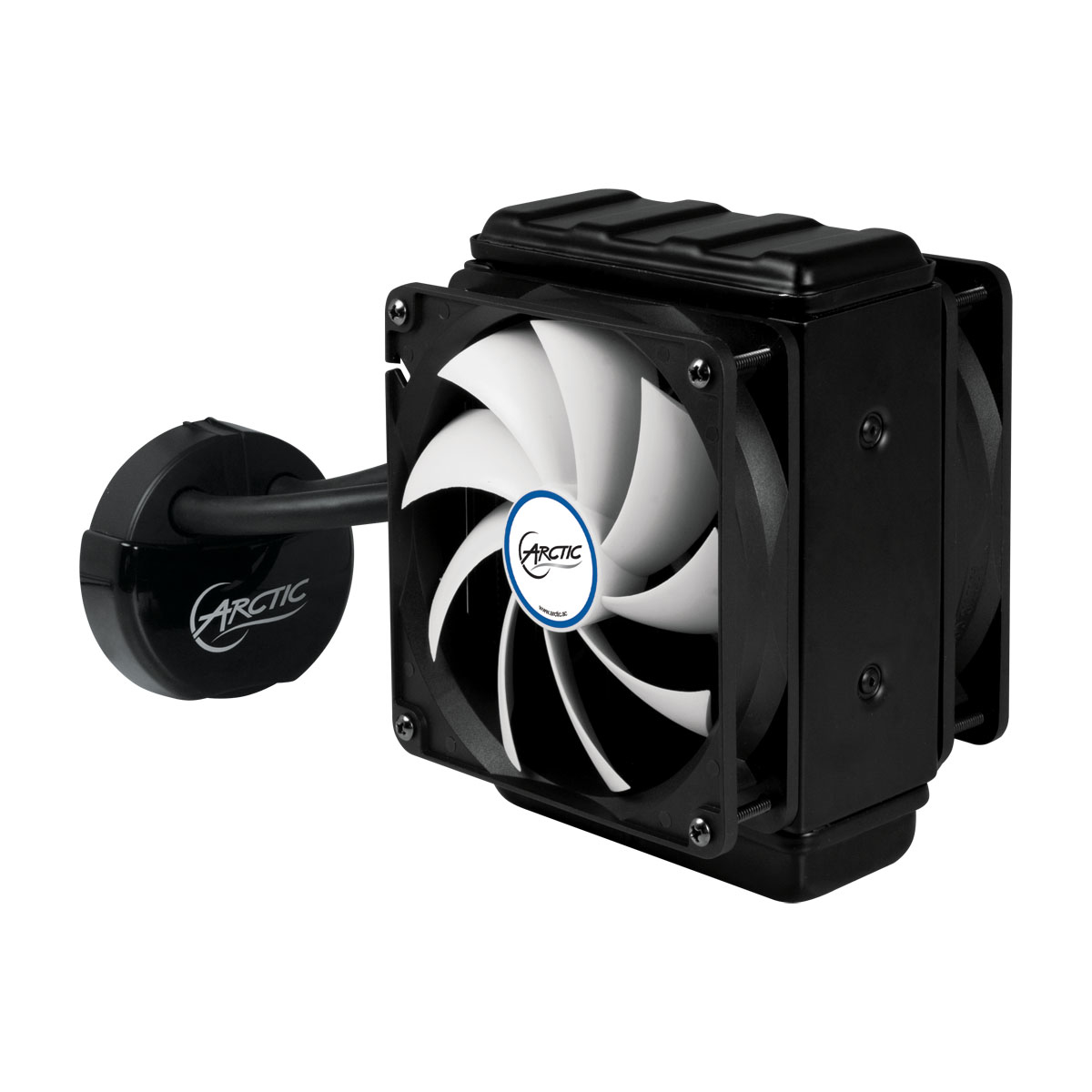

Liquid Freezer 120 - Liquid CPU Cooler for Overclockers
Outstanding CPU cooling performance through Water Cooling Solution with 2 x F12 PWM PST fans, 49 mm deep radiator and efficient water pump.
Extremely Powerful yet Quiet
The Liquid Freezer 120 is not just the most powerful AIO Water Cooler in its class but also the quietest.
Most Efficient Pump
Latest motor technology and smooth tubes offer top performance at only 2 watt power consumption.
Every Unit Performs the Same
A concentric CNC guarantees a smooth and even surface. Thus a consistent series production quality is guaranteed and every unit performs exactly the same.
Optimal Heat Dissipation
Dual low noise 120 mm fans mounted on opposite sides of the radiator provide a great airflow. First fan pushes air through the radiator, second fan pulls the air through it. Controllable with PST function to adjust the fan speed based on CPU temperature.
Quiet and Powerful Fan
We fully designed the F12 fan with CFD (Computational Fluid Dynamics) software and optimized it for high airflow. From all fans tested in our air tunnel and anechoic chamber the F12 offers the highest airflow at a given noise level - by margin
Fits Every Standard Case
We pack a bag of the leading thermal compound, enough for two applications. The MX-4 guarantees to dissipating heat from your CPU in the quickest and most efficient way.
The Liquid Freezer 120 fits in every standard PC case with 120 mm fan option.
Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
