Arduino Mini 05 development board

Name: Arduino Mini 05
Brand: Arduino

MPN: A000087

🚚 Select the country of delivery:

Delivery from:

Germany

Updating price ... 📣 Send Price inquiry Не поставляется

Delivery cost & estimated delivery time:

От

days

Sale and delivery by:

Mercatos.com

. . Imprint / Online Dispute Resolution Terms of Service Cancellation policy Data protection 💳 Payment Methods...

buy now I will buy itASK A QUESTION

Advertising *

Показать все предложения

See all offers

Where to buy and prices (Advertising *)

On Top

в наличии

to seller

* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Ports & interfaces

Number of digital I/O pins	14
PWM digital I/O pins	6
Number of analog I/O pins	8
Wi-Fi	N

Processor

Microcontroller model	ATmega328
Microcontroller frequency	16 MHz

Memory

SRAM (Static Random Access Memory)	2 KB
EEPROM (Electrically Erasable Programmable Read-Only Memory)	1 KB
Flash memory	0.032 MB

Features

DC current per I/O pin	40 mA
Form factor	Arduino
Operating voltage	5 V

Weight & dimensions

Board dimensions	18 x 30 mm

Additionally

Ethernet LAN connection	N

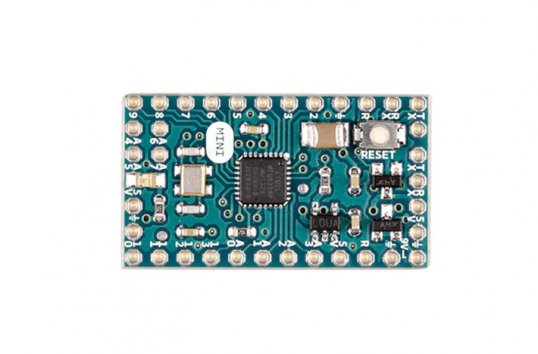

Mini 05, ATmega328, 14 Digital I/O Pins, 8 Analog Input Pins, 6 PWM Digital I/O Pins The Arduino Mini is a small microcontroller board intended for use on breadboards and when space is at a premium. The revision 05 has a new package for the ATmega328, which enables all components to be on the top of the board. It also has an onboard reset button. The 05 version has the same pin configuration as revision 04.
Additional features coming with the 05 version are: - new PCB layout and design - onboard reset button
The Arduino Mini has 14 digital input/output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. It can be programmed with the USB Serial adapter or other USB or RS232 to TTL serial adapter.
