Ports & interfaces
| Number of digital I/O pins |
14 |
| PWM digital I/O pins |
6 |
| Number of analog I/O pins |
6 |
| Wi-Fi |
N |
| USB ports quantity |
1 |
Processor
| Microcontroller model |
ATmega328 |
| Microcontroller frequency |
16 MHz |
Features
| Input voltage (max) |
6 - 20 V |
| DC current per I/O pin |
40 mA |
| Form factor |
Arduino |
| Operating voltage |
5 V |
Memory
| SRAM (Static Random Access Memory) |
2 KB |
| EEPROM (Electrically Erasable Programmable Read-Only Memory) |
1 KB |
| Flash memory |
0.032 MB |
Weight & dimensions
| Board dimensions |
53.4 x 68.6 mm |
Additionally
| Ethernet LAN connection |
N |

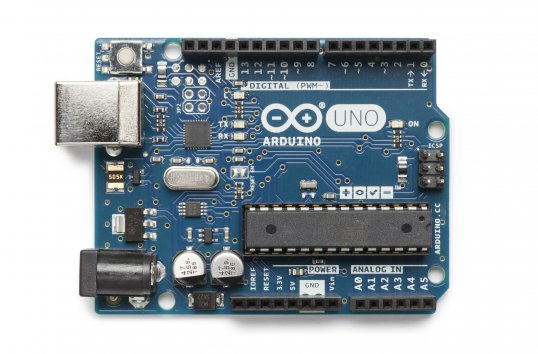

UNO Rev3, ATmega328, 14 Digital I/O Pins, 6 PWM Digital I/O Pins, 6 Analog Input Pins, 25g
Arduino Uno is the ideal board for getting started with electronics, through fun and engaging hands-on projects. This board is your entry to the unique Arduino experience: great for learning the basics of how sensors and actuators work, and an essential tool for your rapid prototyping needs. Arduino Uno Rev3 is the most used and documented board in the Arduino family.
Thanks to the lively and helpful community surrounding the Arduino Uno, no one will find themselves without support.
Arduino Uno Rev3 is a microcontroller board based on the ATmega328P, an 8-bit microcontroller with 32KB of Flash memory and 2KB of RAM. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.
