Ports & interfaces
| Number of digital I/O pins |
20 |
| PWM digital I/O pins |
7 |
| Number of analog I/O pins |
12 |
| USB version |
3.0 (3.1 Gen 1) |
| USB ports quantity |
1 |
Processor
| Microcontroller model |
ATMega32u4 |
| Microcontroller frequency |
16 MHz |
Memory
| SRAM (Static Random Access Memory) |
2.5 KB |
| EEPROM (Electrically Erasable Programmable Read-Only Memory) |
1 KB |
| Flash memory |
0.032 MB |
Features
| DC current per I/O pin |
40 mA |
| Form factor |
Arduino |
| Operating voltage |
5 V |
Weight & dimensions
| Board dimensions |
53 x 73 mm |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
YUN, ATmega 32u4, 20 Digital I/O Pins, 7 PWM Digital I/O Pins, 12 Analog Input Pins, 32g

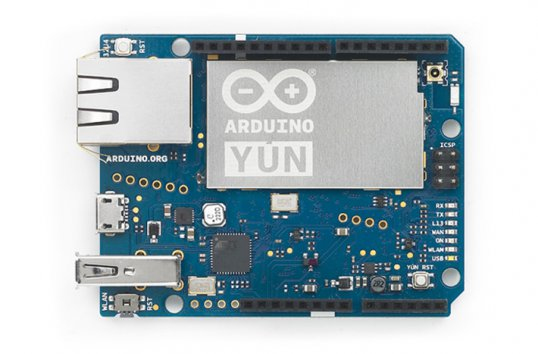

Arduino YÚN is a member of a new groundbreaking line of WiFi products combining the power of Linux with the ease of use of Arduino.
The Arduino YÚN is the combination of a classic Arduino Leonardo (based on the Atmega32U4 processor) with a WiFi system-on-chip running OpenWrt-Yun (a GNU/Linux distribution based on OpenWrt). We embedded the Linux machine directly on the PCB of the Arduino Leonardo and we connected the two so that from Arduino it's very easy to run commands on the Linux side and use it as an Ethernet and WiFi interface.
Warning: Arduino YÚN is not compatible with 12V PoE module.
