Other features
PCI Bus |
64bit/133MHz |
Mac compatibility |
Y |

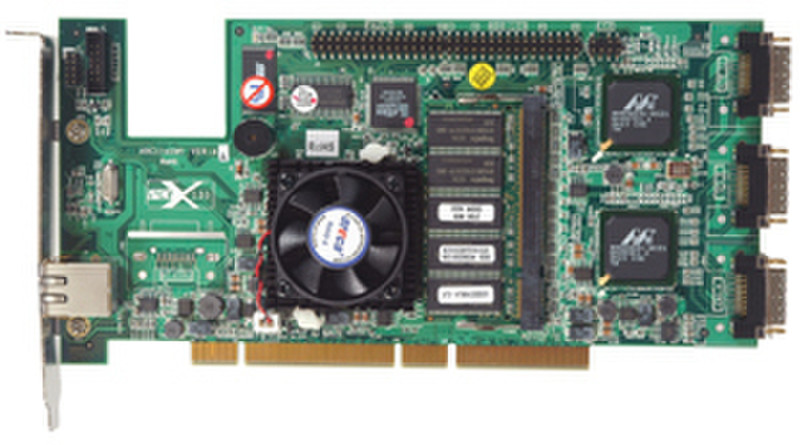

ARC-1130ML, 256MB, SATA
ARC-1110/1120/1130/1160/1130ML/1160ML/1170 (4/8/12/16/24-port PCI-X to SATA ll RAID Adapters)
The ARC-11XX Serial ATA ll RAID host adapter is a high-performance PCI-X bus to SATA ll Disk Array host adapter. The controller can provide up to 4, 8, 12, 16 or 24 SATA ll peripheral devices on a single host adapter. When properly configured, the SATA host adapter can provide non-stop service with a high degree of fault tolerance through the use of RAID technology and advanced array management features. Intel IOP331 processor has integrated the RAID 6 engine inside. It offers Areca the advantage of reduced engineering and development costs, by having the New RAID6 function build-in and integrated part saves on component costs and internal PCI bandwidth.Intel emphasis on architectural commonality in IOPs allows Areca developers to capitalize on their existing code base.
The 4/8 port Serial ATA RAID Host adapter is low-profile PCI cards-ideal for 1U or 2U rack-mount system. It is used the same RAID kernel of its field-proven external RAID controller.
RAID Features
- RAID level 0, 1, 10(1E), 3, 5, 6 and JBOD
- Multiple RAID selection
- Array roaming
- Online RAID level/stripe size migration
- Online RAID capacity expansion and RAID level migration simultaneously
- Instant availability and background initialization
- Automatic drive insertion/removal detection and rebuild
- Greater than 2TB per volume set
- Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
- Support spin down drivers when not in use to extend service life (MAID)
In-Band Manager
- Hot key boot-up McBIOS RAID manager via BIOS
- Support controller's API library for customer to write its own AP
- Support Command Line Interface (CLI)
- Browser-based management utility via ArcHttp Proxy Server
- Single Admin Portal (SAP) monitor utility
- Disk Stress Test (DST) utility for production in Windows
Out-of-Band Manager
- Firmware-embedded Browser-based RAID manager, SMTP manager, SNMP agent, and Telnet function via Ethernet port (for 12/16/24 port Adapter)
- Support controller's API library for customer to write its own AP (for 12/16/24 port Adapter)
- Push Button and LCD display panel
