BIOS
BIOS ACPI |
1.1 |
BIOS memory size |
8 MB |
BIOS type |
UEFI AMI |
BIOS features |
Plug & Play, SMBIOS 2.3, UEFI |
Ports & interfaces
Serial ports quantity |
1 |
IPMI LAN (RJ-45) port |
Y |
VGA (D-Sub) ports quantity |
1 |
Storage
Controller interface type |
SATA3, SAS, SATA2 |
Supported hard disk drive sizes |
2.5, 3.5 " |
Supported storage drive interfaces |
SAS, SAS-2, Serial ATA II, Serial ATA III |
Hot-swap hard drive bays |
Y |
Number of hard drives supported |
18 |
Memory
Supported UDIMM clock speeds |
1066, 1333, 1600 MHz |
Non-ECC |
Y |
Memory form factor |
240-pin DIMM |
Number of DIMM slots |
16 |
ECC |
Y |
Supported memory types |
DDR3-SDRAM, DDR3L-RS-SDRAM, DDR3L-SDRAM |
Memory voltage |
1.35, 1.5 V |
Supported RDIMM clock speeds |
1066, 1333, 1600 MHz |
Maximum UDIMM memory |
128 GB |
Maximum RDIMM memory |
512 GB |
Maximum internal memory |
512 GB |
Processor
Number of processors supported |
2 |
Intel Xeon series |
E5-1600, E5-2600, E5-4600 |
Built-in processor |
N |
Graphics
On-board graphics adapter memory |
16 MB |
Expansion slots
PCI Express x16 slots |
2 |
PCI Express slots version |
3.0 |
Performance
Intelligent Platform Management Interface (IPMI) support |
Y |
Networking
Ethernet LAN data rates |
100, 1000, 10000 Mbit/s |
LAN controller |
Intel X540 |
Copper ethernet cabling technology |
10GBASE-T |
Additionally
Chipset |
Intel C602 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
3 |

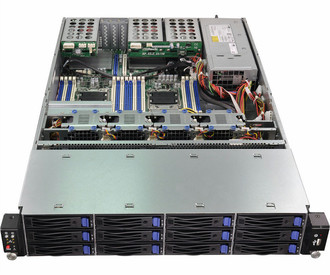

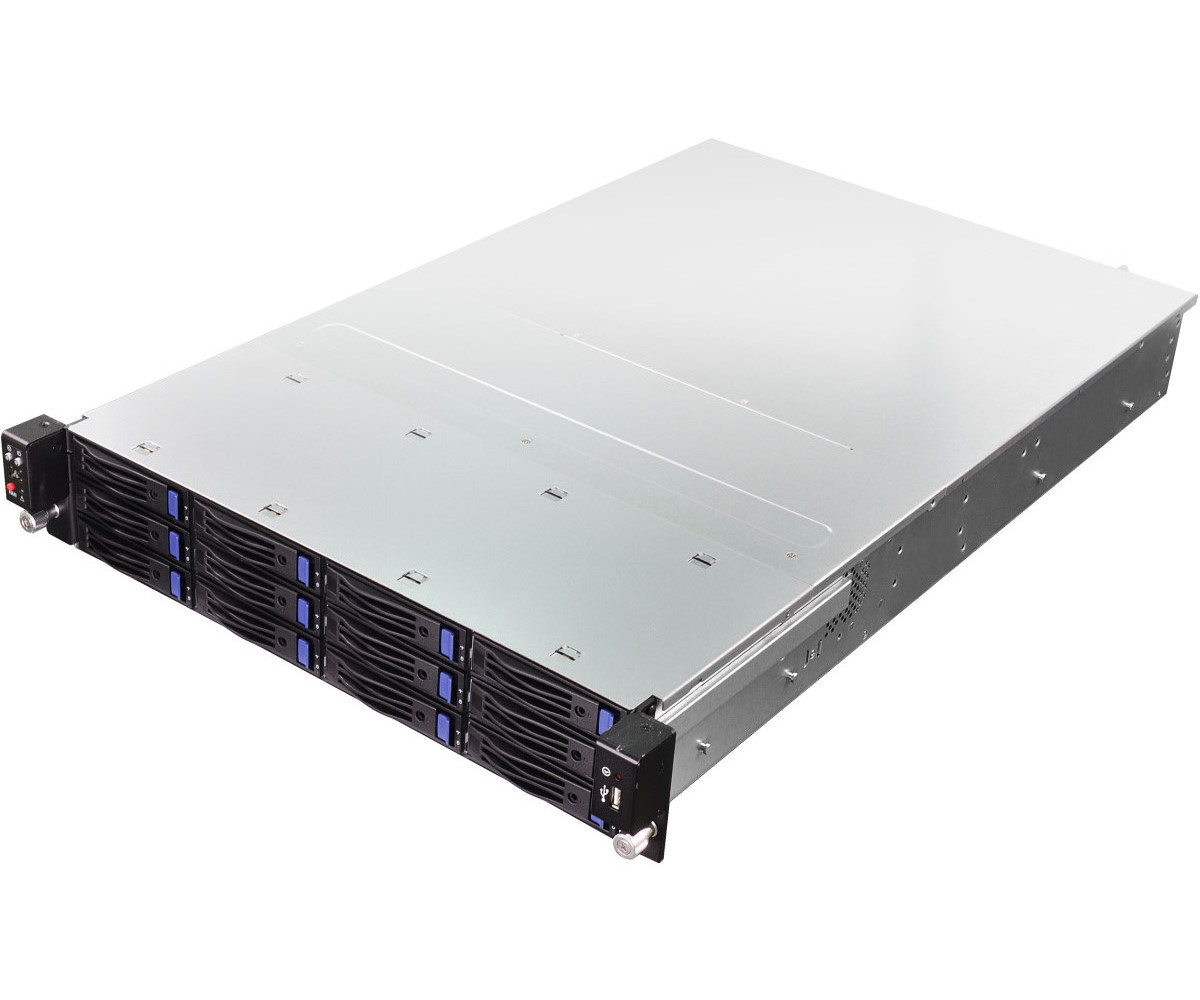

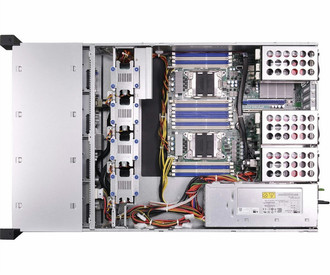

2U Rack, 12 x 3.5/2.5" SATA/SAS, LSI 2 x 20 + 3 x mini SAS 8087, 6 x 2.5" SATA, LGA2011, Intel C602, 16 x DDR3 DIMM, 2 x PCIe 3.0 x16, LAN, VGA, USB 2.0, Serial, 660 x 430 x 88 mm, 17 kg
