Performance
| Motherboard form factor |
ATX |
| Audio system |
ALC888 |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Other features
| Controller (2nd) interface type |
PATA |
| Controller interface type |
SATAII |
Internal I/O
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
5 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Front panel audio connector |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Networking features |
10/100/1000 Mb/s |
Graphics
| Maximum graphics adapter memory |
512 MB |
| On-board graphics adapter |
Y |
| HDCP |
Y |
Memory
| Non-ECC |
Y |
| Number of memory slots |
4 |
| Maximum internal memory |
4 GB |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| eSATA ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Additionally
| Chipset |
AMD 785G |
| Graphics |
Radeon HD 4200 |
| Dual-link DVI |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

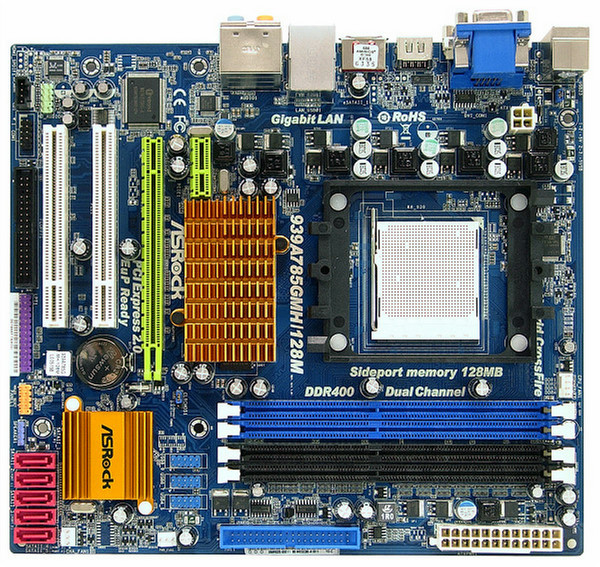

939A785GMH/128M Socket 939, AMD 785G + SB710, DDR 400/333/266, Radeon HD 4200 512MB, 1 x PCIE 2.0, 5 x SATAII 3.0 (RAID), Gigabit LAN, Micro ATX
- Socket 939 for AMD Athlon 64FX / 64X2 / 64 processors.
- Solid Capacitor for CPU power.
- AMD 785G + SB710 Chipsets.
- Supports Dual Channel DDR 400/333/266 with 4 DIMM slots, maximum capacity up to 4GB.
-Integrated AMD Radeon HD 4200 graphics, DX10.1 class iGPU, Shader Model 4.1, Max. shared memory 512MB.
-Integrated 128MB side port memory for iGPU.
-Supports ATI Hybrid CrossFireX.
-1 x PCI Express 2.0 x16 slot (green @ x16 mode).
-Three VGA Output options: D-Sub, DVI-D and HDMI.
-Supports HDCP function with DVI-D port.
-Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with DVI-D port.
-5 x SATAII 3.0 Gb/s, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and "Hot Plug" functions.
-1 x eSATAII Port.
-PCIE x1 Gigabit LAN 10/100/1000 Mb/s.
-ASRock Smart BIOS, OC DNA, OC Tuner, IES, Instant Boot, Instant Flash.
-EuP Ready.
-7.1 CH Windows Vista Premium Level HD Audio (ALC888 Audio Codec).
-Windows Vista Premium 2008 Logo Ready.
-I/O Panel : 1 x VGA/DVI-D Port, 1 x VGA/D-Sub Port, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 4 x Ready-to-Use USB 2.0 Ports, 1 x eSATAII Port, 1 x RJ-45 LAN Port with LED.
