Back panel I/O ports
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| Digital audio optical out |
1 |
| eSATA ports quantity |
2 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Headphone outputs |
1 |
| Firewire (IEEE 1394) ports |
1 |
Networking
| Wi-Fi |
N |
| Bluetooth |
N |
| Wake-on-LAN ready |
Y |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x16 slots |
4 |
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
| PCI Express configurations |
2x8, 1x16, 1x8, 1x4, 1x1 |
Performance
| Cooling type |
Passive |
| Component for |
PC |
| Audio system |
Realtek ALC898 |
| Motherboard chipset family |
AMD |
| Motherboard southbridge |
AMD SB950 |
| Overclocking features |
Asrock AXTU |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
Y |
| Trial software |
Antivirus, CyberLink MediaEspresso 6.5 |
Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
3 |
| Front panel audio connector |
Y |
| Number of EATX power connectors |
1 |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| EPS power connector (8-pin) |
Y |
| Number of SATA III connectors |
8 |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
Other features
| Controller (2nd) interface type |
ASMedia ASM1061 |
| Controller interface type |
AMD SB950 |
Processor
| Maximum number of SMP processors |
1 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Chipset |
AMD 990FX |

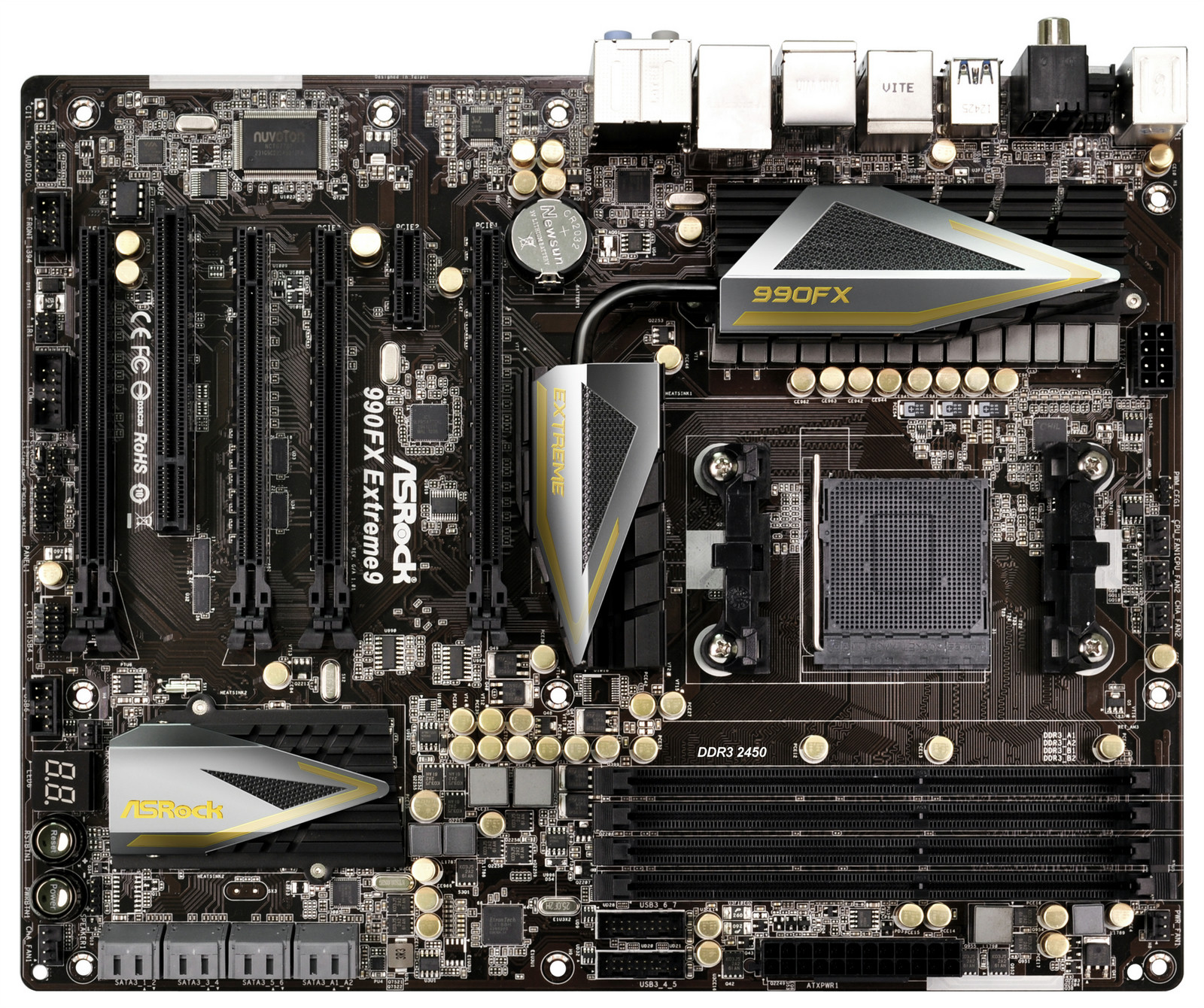

AMD Socket AM3/AM3+, AMD 990FX/SB950, 4 x DDR3 DIMM, 8 x SATA 6 Gbps, 4 x PCIx 2.0 x16 (x16, x4, x16/x8, x8/x8), 1 x PCIe2.0 x1, 1 x PCI, Gigabit LAN, 7.1ch. HDA, ATX
- Premium Gold Caps, Multiple Filter Cap
- Supports Dual-Stack MOSFET (DSM), Digi Power, 12 + 2 power phase design
- Supports AM3+ Processor, 8-Core CPU
- Supports Dual Channel DDR3 2450(OC)
- 4 PCIe 2.0 x16 Slots, Support NVIDIA® 3-Way SLI, AMD 3-Way CrossFireX™
- 8 x SATA3, 2 x eSATA3, 8 x USB 3.0, 8 x USB 2.0
- Supports Hi-Density Power Connector
- Intel® Gigabit LAN
- Supports ASRock X-Boost, XFast 555, Fast Boot, Restart to UEFI, Dehumidifier, OMG, Internet Flash, Easy RAID Installer
- 7.1 CH HD Audio with Content Protection (Realtek ALC898 Audio Codec), supports THX TruStudio™
- Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, 1 x Front USB 3.0 Panel with 2.5" HDD/SSD Rack
