Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
2 |
| Number of M.2 (M) slots |
1 |
| Front panel audio connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| EPS power connector (8-pin) |
Y |
| Number of SATA III connectors |
8 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
Performance
| Component for |
PC |
| Cooling type |
Passive |
| Audio system |
Realtek ALC1150 |
| PC health monitoring |
Voltage, Temperature, FAN, CPU |
| Motherboard chipset family |
AMD |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
1 |
| DVI-D ports quantity |
1 |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
N |
Processor
| Processor thermal power (max) |
100 W |
| Maximum number of SMP processors |
1 |
Graphics
| Discrete graphics support |
Y |
| Graphics adapter family |
AMD |
| Maximum graphics adapter memory |
2048 MB |
| DirectX version |
11.1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Chipset |
AMD A88X |

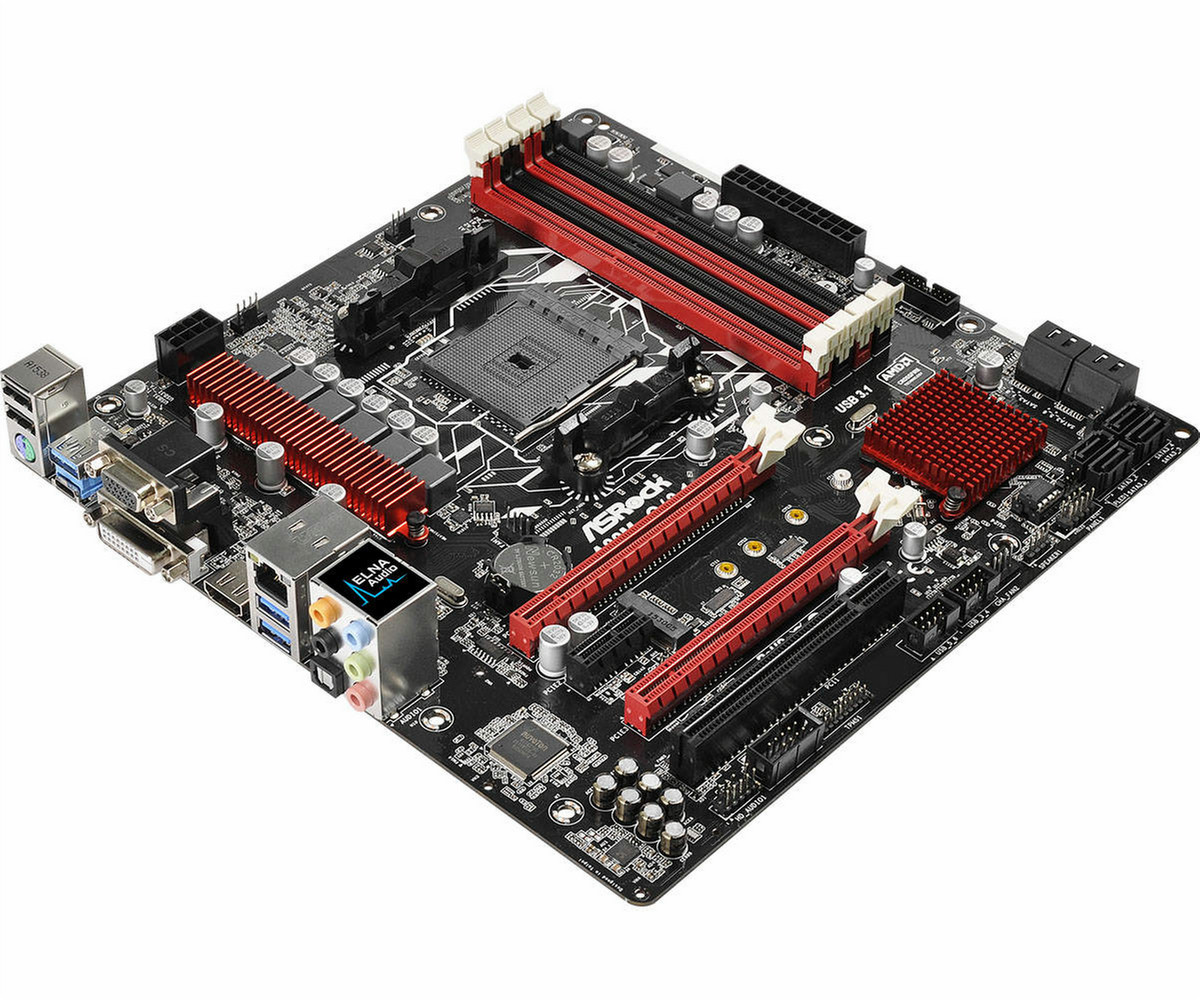

A88M-G/3.1, AMD A88X (Bolton-D4), Socket FM2+ / FM2, 4 x DDR3 2400+, AMD Radeon R7/R5 Series Graphics in A-series APU, 8 x SATA3 6.0 Gb/s, Micro ATX
- ASRock Super Alloy
- Supports Socket FM2+ 95W / FM2 100W processors
- Supports DDR3 2400+(OC)
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x16, 1 PCI 2.0 x1, 1 PCI
- Supports AMD Quad CrossFireX™
- Graphics Output Options: DVI-D, D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), ELNA Audio Caps
- 8 SATA3, 1 M.2
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C), 4 USB 3.0 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
