Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Supported UDIMM clock speeds |
1333, 1600 MHz |
| ECC |
Y |
| Memory channels |
Dual |
| Number of DIMM slots |
4 |
| Maximum internal memory |
32 GB |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.35, 1.6 V |
Internal I/O
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
3 |
| Number of SATA III connectors |
10 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
Processor
| Number of processors supported |
1 |
| Intel Xeon series |
E3-1200 |
| Processor manufacturer |
Intel |
Expansion slots
| PCI slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
3 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x16 dual x8/x8 mode |
Y |
BIOS
| BIOS type |
UEFI AMI |
| BIOS memory size |
8 MB |
| ACPI version |
1.1 |
Design
| Motherboard form factor |
ATX |
| Component for |
Server |
Networking
| LAN controller |
Intel i210 |
| Ethernet interface type |
Gigabit Ethernet |
Back panel I/O ports
| eSATA ports quantity |
1 |
| DVI-I ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| PS/2 ports quantity |
1 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
Storage controllers
| RAID support |
Y |
| Hard drive interface |
Serial ATA III |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel C226 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

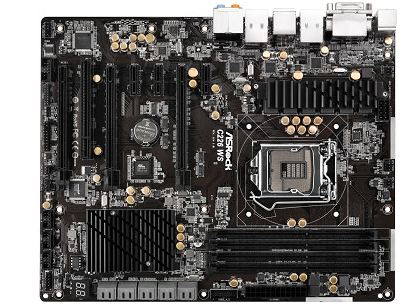

ATX, Intel XeonE3-1200 v3/ Core i7/i5/i3, 4-DIMM DDR3 1600/1333 ECC, Gigabit LAN 10/100/1000 Mb/s
- ATX 12''x9.6''
- Single socket H3 (LGA 1150)
- Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- 4-DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB
- 2 x PCIe 3.0 x16, 1 x PCIe 2.0 x4, 3 x PCIe 2.0 x1, 1 x PCI
- 6 x SATA3 by Intel C226 support RAID 0,1,5,10
- 4 x SATA3 by Marvell 9172 support RAID 0,1
- 2 Intel i210, support Dual GLAN
- 6 USB 3.0 ports (4 rear + 2 via header)
- 10 USB 2.0 ports (4 rear + 6 via header)
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
