Design
| Motherboard form factor |
Mini-STX |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
2400 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Number of storage drives supported |
2 |
| Supported storage drive types |
HDD, SSD |
Motherboard
| Number of processors supported |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Ports & interfaces
| Combo headphone/mic port |
Y |
| Number of SATA III connectors |
2 |
| USB 3.0 (3.1 Gen 1) Type-C ports quantity |
1 |
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Networking
| Bluetooth version |
4.0 |
| LAN controller |
Intel I219-V |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bluetooth |
Y |
Power
| Number of power supply units |
1 |
| Power supply |
120 W |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Packaging content
| Drivers included |
Y |
| Quick start guide |
Y |
| Power cord included |
Y |
Audio
| Audio system |
Realtek ALC283 |
Additionally
| Chipset |
Intel H110 |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

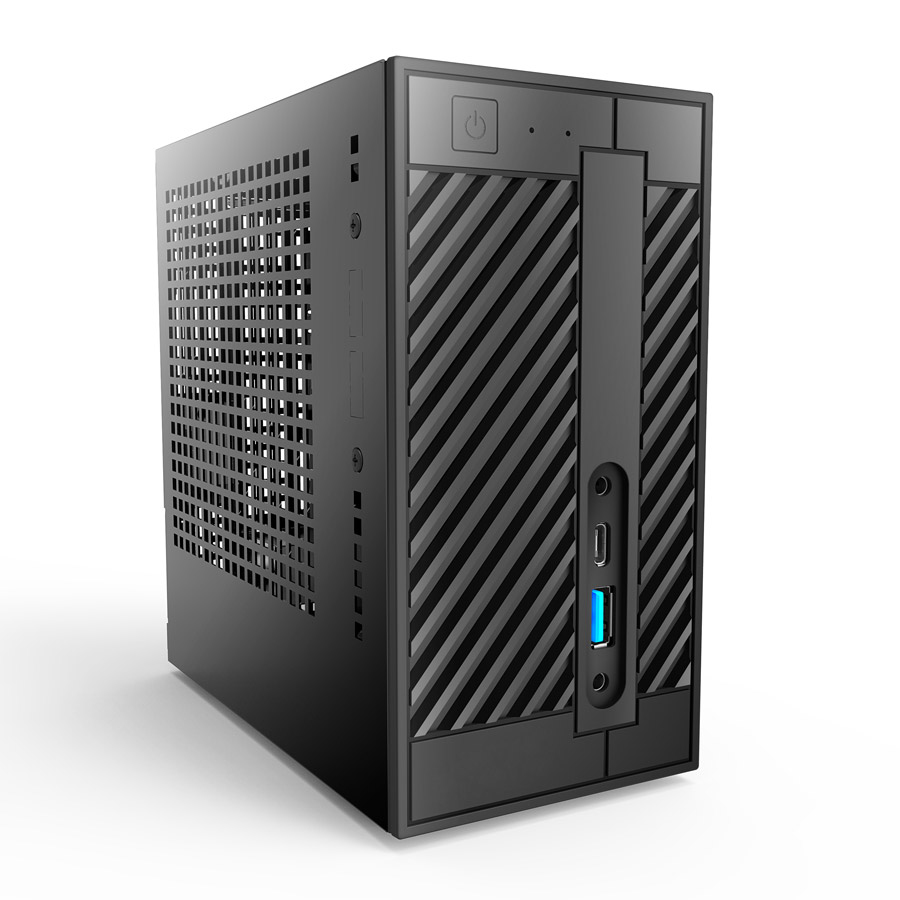

Socket 1151, H110M-STX, Intel H110, 2x SO-DIMM DDR4 2400MHz Max.32GB, Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.0, 2x SATA3, 2x M.2, 3x USB 3.0 A/C, USB 2.0, VGA, HDMI, DP, 120W
About Mini-STX
The Mini Socket Technology Extended (Mini-STX) form factor adds the flexibility to support Intel® LGA 1151 socket-based Intel® processors in the mini PC segment
Smaller Size, Better performance
Compared to T-series CPU models, DeskMini 110 uses 65W CPUs and is still smaller than other HTPCs, bringing up to 23% more performance.
Higher Value, Better performance
Compared to U-series CPU models, DeskMini 110 uses Intel standard CPUs that bring up to 21% more performance, while using cost effective Pentium or Core i3 processors.
DC-In Adapter
The DC-In adapter saves users up to 14% on power consumption compared to the traditional PSU design.
Tons of Customization Options
COM port header, TPM 2.0 chip, slim thermal fan or standard Intel box fan. Customize your own mini-STX.
Two M.2 Slots
A key E 2230 M.2 slot for supporting a Wi-Fi + BT module, and another type 2280 M.2 slot which is directly powered by the CPU, thus boasting 7% better performance than other M.2 slots for supporting PCIe Gen3 x4 M.2 SSDs.
USB 3.0 Type-C
A Type-C USB 3.0 connector for fast charging and delivering up to 5Gbps data transfer rates.
Dual Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.0.
*Available only with DeskMini 110W
Flexible LAN Choice
Settle for the default Intel I219V LAN, or upgrade both your chipset to B150/Q170 and server grade Intel I219LM LAN.
Two SATA3 Headers
There are two SATA3 headers on the opposite side of the motherboard, which supports 2.5" HDDs/SSDs.
Three Graphics Outputs
This motherboard supports all three kinds of graphics D-Sub, HDMI and DP.
*Supports up to 2 displays simultaneously
