Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| ECC |
Y |
| Memory channels |
Dual |
| Number of DIMM slots |
4 |
| Maximum internal memory |
32 GB |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5, 1.35 V |
Design
| Motherboard form factor |
ATX |
| Component for |
Server |
Back panel I/O ports
| Serial ports quantity |
1 |
| IPMI LAN (RJ-45) port |
Y |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
Internal I/O
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
6 |
| Number of SATA II connectors |
2 |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
6 |
| USB 2.0 connectors |
2 |
Networking
| Wake-on-LAN ready |
Y |
| LAN controller |
Intel I210, Realtek RTL8211E |
| Ethernet interface type |
Gigabit Ethernet |
Processor
| Number of processors supported |
1 |
| Intel Xeon series |
E3-1200 |
| Processor manufacturer |
Intel |
Graphics
| On-board graphics adapter memory |
16 MB |
Expansion slots
| PCI slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x4 (Gen 3.x) slots |
1 |
Processor special features
| Intelligent Platform Management Interface (IPMI) support |
Y |
BIOS
| ACPI version |
2.0 |
| BIOS type |
UEFI AMI |
| BIOS memory size |
64 MB |
Storage controllers
| Hard drive interface |
Serial ATA II, Serial ATA III |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
5 |
| Chipset |
Intel C224 |
| Ethernet LAN connection |
Y |

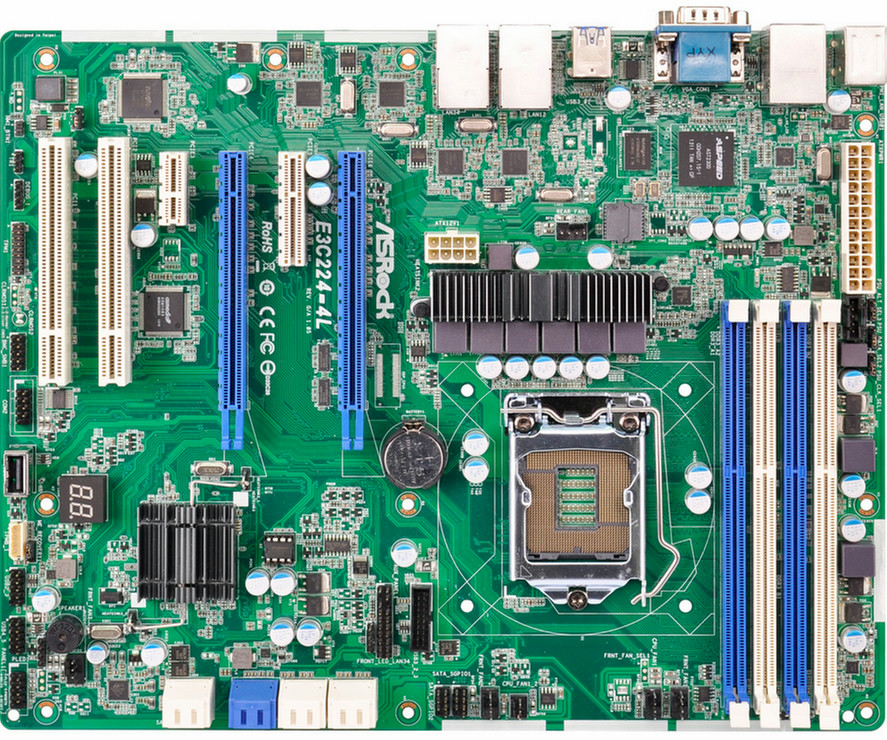

LGA 1150, Intel C224, 4 x 240-pin, DDR3 1600/1333, Gigabit LAN, 4 x Intel i210, 2 x USB 3.0, 2 x USB 2.0
- ATX 12" x 9.6"
- Single socket H3 (LGA 1150)
- Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i3/Pentium/Celeron Processors (Socket 1150)
- 4 x DIMM DDR3 1600/1333 ECC, max. 32GB
- 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 2.0 x1, 2 x PCI
- 4 x SATA3, 2 SATA2 by Intel C224 support RAID 0,1,5,10
- 2 x SATA3 by Marvell 9172 support RAID 0,1
- 4 x Intel i210, support Quad GLAN
- ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
- 4 x USB 3.0 ports (2 rear + 2 via header )
- 7 x USB 2.0 ports (2 rear + 4 via header +1 Type A)
