Memory
Supported memory clock speeds |
1333, 1600, 1866, 1066 MHz |
Number of DIMM slots |
16 |
Maximum UDIMM memory |
128 GB |
Maximum LRDIMM memory |
512 GB |
Maximum internal memory |
128 GB |
Supported memory types |
DDR3-SDRAM |
Memory voltage |
1.5, 1.35 V |
Back panel I/O ports
Serial ports quantity |
1 |
IPMI LAN (RJ-45) port |
Y |
VGA (D-Sub) ports quantity |
1 |
Internal I/O
ATX Power connector (24-pin) |
Y |
TPM connector |
Y |
USB 2.0 connectors |
2 |
Number of SATA III connectors |
2 |
Number of SATA II connectors |
8 |
EPS power connector (8-pin) |
Y |
Networking
Wake-on-LAN ready |
Y |
LAN controller |
Intel I350, Realtek RTL8211E |
Ethernet interface type |
Gigabit Ethernet |
Wi-Fi |
N |
Processor
Number of processors supported |
2 |
Intel Xeon series |
E5-1600, E5-2600, E5-4600 |
Processor manufacturer |
Intel |
Graphics
On-board graphics adapter memory |
16 MB |
BIOS
BIOS type |
UEFI AMI |
BIOS memory size |
64 MB |
ACPI version |
1.1 |
Processor special features
Intelligent Platform Management Interface (IPMI) support |
Y |
Expansion slots
PCI Express x16 (Gen 3.x) slots |
2 |
Design
Component for |
Server |
Motherboard form factor |
SSI EEB |
Storage controllers
Hard drive interface |
Serial ATA II, Serial ATA III |
Additionally
Ethernet LAN (RJ-45) ports quantity |
3 |
Chipset |
Intel C602 |
Ethernet LAN connection |
Y |

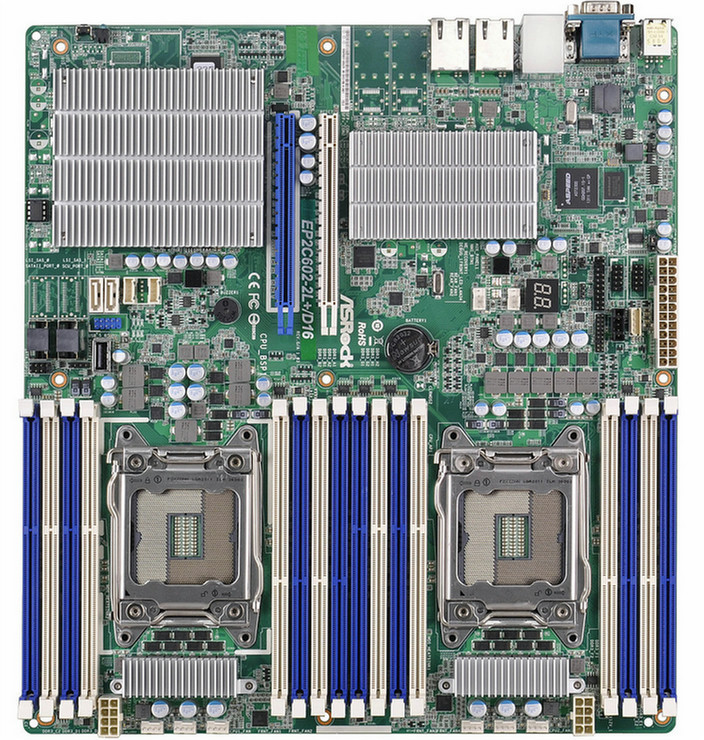

Dual Socket LGA 2011, 16 x DIMM slots, DDR3 1866/1600/1333/1066, VGA, 4 x USB 2.0, 2 x PCIe 3.0 x16, SSI EEB
- EEB 12" x 13"
- Dual socket LGA 2011, Supports Intel Xeon Processor E5-1600/2600/4600 & v2 Series
- 16 x DIMM DDR3 1866/1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 512GB
- 2 x PCIe 3.0 x16
- 2 x SATA3, 8 SATA2( from 2x mini SAS 8087 connector) by Intel C602 support RAID 0,1,5,10
- 1 x Intel i350 support Dual GLAN
- ASPEED 2300 for BMC controller, Realtek RTL8211E for dedicated IPMI GLAN
- 9 x USB 2.0 ports (4 rear + 4 via header + 1 Type A)
