Memory
Supported memory clock speeds |
1600, 1866, 2133 MHz |
Supported DIMM module capacities |
16GB, 32GB, 4GB, 8GB |
Memory channels |
Quad |
Supported RDIMM module capacity |
4GB, 8GB, 32GB, 64GB |
Supported LRDIMM module capacity |
32GB, 64GB |
Number of DIMM slots |
8 |
Maximum internal memory |
64 GB |
Supported memory types |
DDR4-SDRAM |
Memory voltage |
1.2 V |
Design
Motherboard form factor |
ATX |
Component for |
Server |
Back panel I/O ports
Serial ports quantity |
1 |
IPMI LAN (RJ-45) port |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
VGA (D-Sub) ports quantity |
1 |
BIOS
BIOS memory size |
16 MB |
ACPI version |
2.0 |
BIOS type |
UEFI AMI |
Internal I/O
ATX Power connector (24-pin) |
Y |
Power fan connector |
Y |
TPM connector |
Y |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
USB 2.0 connectors |
1 |
Networking
Wake-on-LAN ready |
Y |
LAN controller |
Intel I210 |
Ethernet interface type |
Gigabit Ethernet |
Wi-Fi |
N |
Processor
Number of processors supported |
1 |
Processor manufacturer |
Intel |
Intel Xeon series |
E5-1600, E5-2600 |
Graphics
On-board graphics adapter memory |
16 MB |
Expansion slots
PCI Express x16 (Gen 3.x) slots |
4 |
PCI Express x8 (Gen 3.x) slots |
1 |
Storage controllers
RAID support |
Y |
Hard drive interface |
Serial ATA III |
Additionally
Chipset |
Intel C612 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |

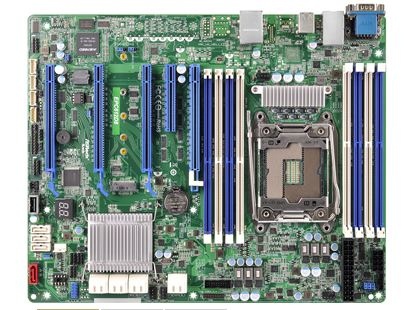

Intel Xeon processor E5-1600/2600 v3 series, LGA 2011 R3, DDR4 2133/1866 LR/R/ECC, 8 x DIMM, C612, Gigabit LAN
- ATX 12'' x 9.6''
- Socket LGA 2011 R3 Intel Xeon processor E5-1600/2600 v3 series
- Supports Quad channel DDR4 2133/1866 LR/R/ECC, 8 x DIMM slots
- Supports 9 SATA3 by C612 (1 support SATA DOM), 2 SATA3 by Marvell 9172
- Supports 4x PCIe 3.0 x16, 1x PCIe 3.0 x8 and 1 mini PCIe slot
- Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E)
- Supports Intel Dual GLAN (Intel i210 + Intel i217)
