Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| PC health monitoring |
CPU, FAN, Temperature, Voltage |
| Audio system |
Realtek ALC1150 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
2133 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
| Intel Core i3/i5/i7 series |
i3-6xxx |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
4 |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
N |
| Discrete graphics support |
Y |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
2 |
| PCI Express x1 (Gen 3.x) slots |
3 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Additionally
| Chipset |
Intel C232 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

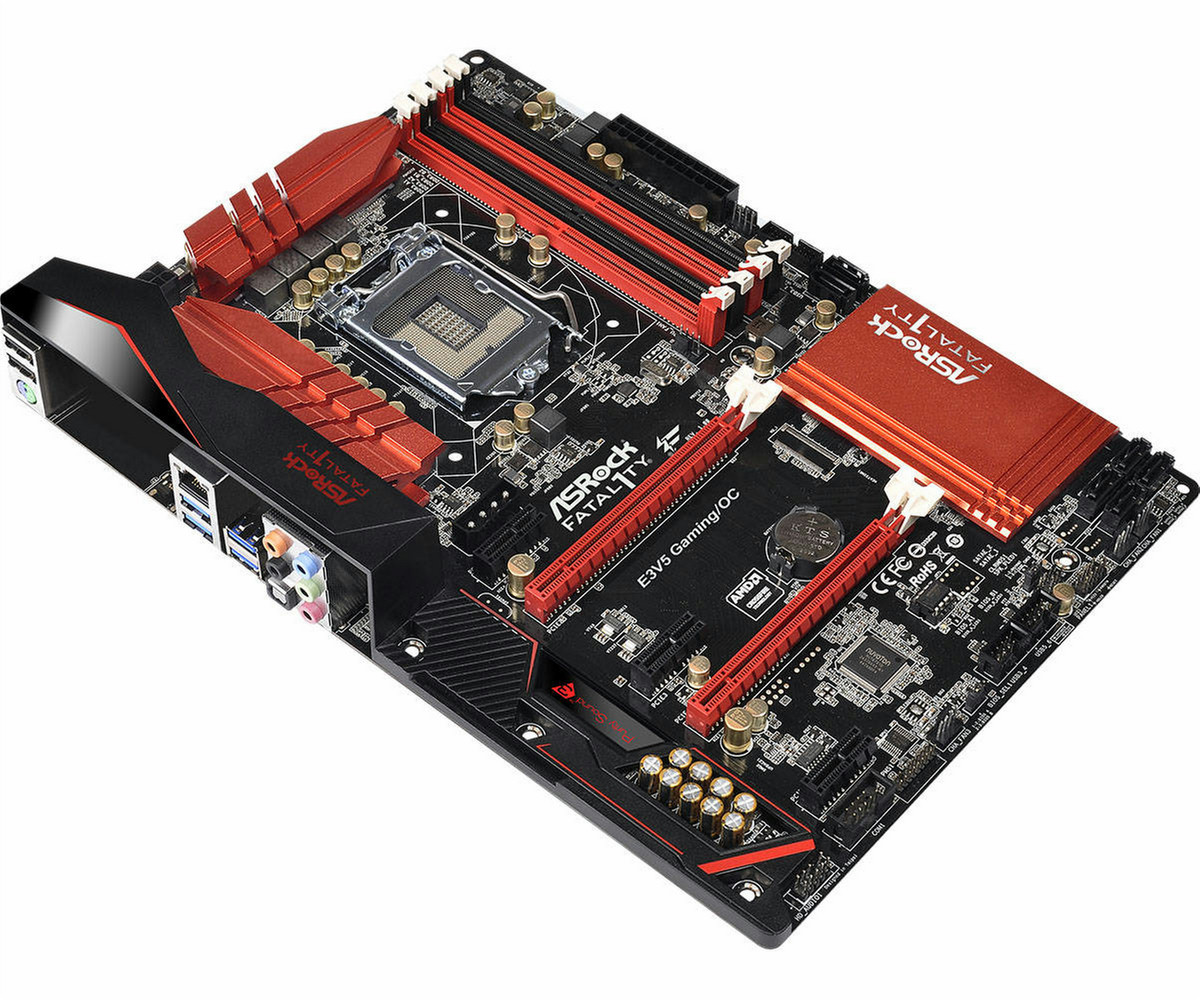

Fatal1ty E3V5 Performance Gaming/OC, Intel C232, Supports the Intel Xeon E3-1200 v5 Processor and 6th Generation Intel Core i3/Pentium/Celeron Processors (Socket 1151), 4 x DDR4 2133, 2 x PCI Express 3.0 x16, 6 x SATA3 6.0 Gb/s, ATX
- ASRock Super Alloy
- Gaming Armor - Memory / VGA Card / Cooling / Internet / Audio
- Supports Intel® Xeon® E3-1200 v5 Processor and 6th Generation Intel® Core™ i3/Pentium®/Celeron® Processors
- Digi Power, 10 Power Phase Design
- Supports Dual Channel DDR4 2133, DDR4 Non-Z OC
- 2 PCIe 3.0 x16, 3 PCIe 3.0 x1
- AMD Quad CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 3 & DTS Connect
- 6 SATA3
- 6 USB 3.0 (2 Front, 4 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop, Key Master, XSplit
