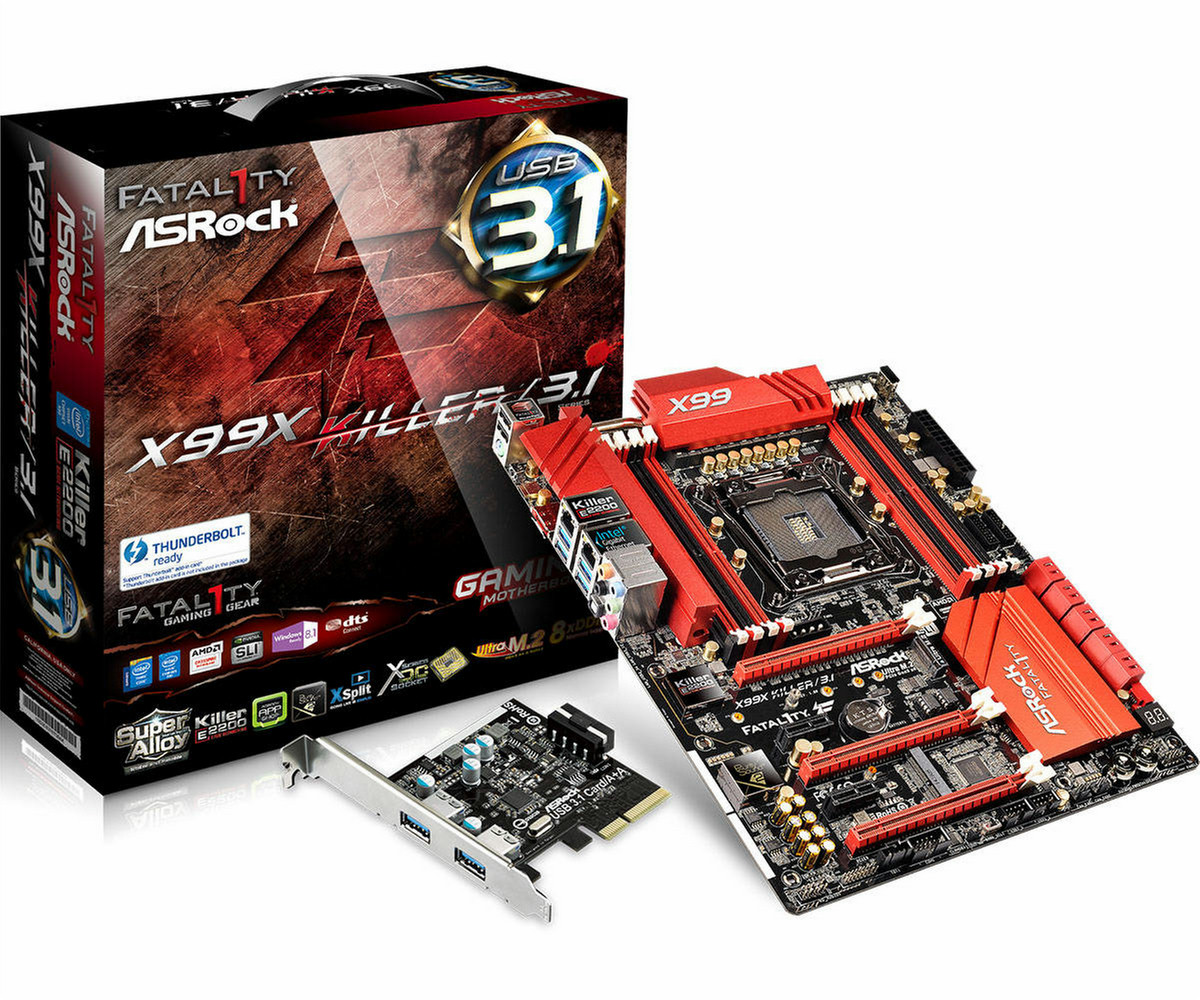

Asrock Fatal1ty X99X Killer/3.1 Intel X99 LGA 2011-v3 ATX

Chipset Intel X99, Socket LGA 2011-v3, DDR4, 128GB, UEFI AMI BIOS, ATX - ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Premium Memory Alloy Choke
- Ultra Dual-N MOSFET (UDM)
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Gaming Armor
- CPU Power - Hi-Density Power Connector, Ultra Dual-N MOSFET, Multiple Filter Cap (MFC)
- Memory - 15μ Gold Contact in DIMM Slots
- VGA Card - 15μ Gold Contact in VGA PCIe Slots, PCIe Power Connector
- Cooling - XXL Aluminum Alloy Heatsink, 2oz Copper PCB, Heat Pipe Design
- Internet - Intel® LAN + Qualcomm® Atheros® Killer LAN
- Audio - Purity Sound™ 2
- Supports Intel® Core™ i7 and Xeon® 18-Core Processors Family for the LGA 2011-3 Socket
- Digi Power, 12 Power Phase design
- Supports Quad Channel DDR4 3200+(OC)
- 3 PCIe 3.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe
- Supports AMD 3-Way CrossFireX™ and NVIDIA® 3-Way SLI™
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
- Intel® Gigabit LAN + Qualcomm® Atheros® Killer LAN
- 10 SATA3, 1 eSATA, 1 SATA Express, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 1 USB 3.1 Type-C 10Gb/s, 2 USB 3.1 Type-A 10Gb/s (Supported by the bundled ASRock USB 3.1 Card/A+A), 8 USB 3.0 (4 Front, 4 Rear), 7 USB 2.0 (4 Front, 1 Back, 1 Fatal1ty Mouse Port, 1 Vertical Type A)
- 1 COM Port Header, 1 TPM Header, 1 Thunderbolt™ AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop, F-Stream, Key Master

<b>Onboard type-C & USB 3.1 card/A+A</b>
An onboard Type C USB 3.1 connector for plugging mobile devices, plus a PCIe x4 add on card that provides 2 Type A USB 3.1 connectors for delivering up to 10Gbps data transfer rates.

<b>No lag, just frag</b>
ASRock Killer Series features the Killer™ E2200 Intelligent Networking Platform is built for maximum networking performance for online games and high-quality streaming media. Featuring Advanced Stream Detect™, Killer E2200 automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge. With this exclusive, automatic traffic prioritization, games and real-time chat get priority over low-level system chatter, giving you the lowest latency for game data on the most controllable network hardware available.

<b>Killer network manager</b>
Use Qualcomm Atheros Killer Network Manager to classify and prioritize online games, HD video and high quality audio for better quality and fewer interruptions in your online experience.
See which applications are hogging bandwidth and tune performance for each, so they don't interfere with your online gameplay or other streams. Monitor and manage the health and performance of your gaming rig with graphical displays, detailed logging and complete redesigned user interface.

<b>XXL Aluminum Alloy Heatsink Design</b>
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.

<b>Premium 60A Power Choke</b>
Compared to traditional chokes, ASRock’s new-gen premium power chokes effectively increase up to 3 times better saturation current, providing enhanced and improved Vcore voltage to the motherboard.

<b>Premium Memory Alloy Choke</b>
Specially designed for memory power delivery, the new-gen alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard.

<b>Ultra Dual-N MOSFET</b>
Combining two silicon dies into one MOSFET, Ultra Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient.

<b>Nichicon 12K Platinum Caps</b>
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
* Tested under industry standard 105 degree Celsius ambient temperature.

<b>Sapphire Black PCB</b>
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

<b>12 Power Phase Design</b>
Designed with a 12 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

<b>Digi Power</b>
More Precise, More Efficient
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

<b>X Series OC Socket</b>
ASRock’s newly designed LGA2011 CPU socket that adds more pins to boost the performance of the CPU and memory, plus it also unlocks several hidden voltage tweaking options for advanced overclocking.

<b>Supports DDR4 ECC / RDIMM Memory Modules</b>
This motherboard is capable of supporting DDR4 ECC and RDIMM (Registered DIMM) memory modules which deliver server-grade performance and durability for high-powered computing systems.
* ECC is supported with Intel® Xeon® processors.

<b>128GB Memory Support</b>
Designed to meet the maximum computing power system, this motherboard adopts Quad-Channel 8 DDR4 DIMM slots. Each slot supports 16GB memory module, thus delivering a maximum capacity up to 128GB.

<b>Ultra M.2 (PCIe Gen3 x4 & SATA3)</b>
The World’s Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.

<b>mini-PCIe Slot</b>
The mini-PCIe slot is a convenient peripheral interface that can be used for connecting WiFi card.

<b>SATA Express Connector</b>
The SATA Express* interface provides PCIe Gen2 x2 (10Gb/s) data transfer speed. This motherboard offers the latest SATA Express connector to enthusiasts to enjoy the ultimate performance.

<b>Purity Sound™ 2</b>
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.

<b>Key Master</b>
What good is a weapon if you are unable to wield it proficiently? Key Master consists of two major features, Sniper Key and Macro Key. It can enhance your mouse and keyboard with customizable macros, sniper modes, key repeat rates and repeat delay, turning your boring old keyboard and mouse into lethal weapons. Key Master may be prohibited by some games. We suggest disabling Key Master if it violates the game's end user license agreement.

Sniper Key - Use Sniper Key to shift the mouse speed when you're in sniper mode, it will greatly sharpen your accuracy.

Macro Key - Tired of those repetitive keystrokes? Create your own set of keyboard hotkeys and macros with Macro Key to save the trouble.

<b>XSplit</b>
XSplit Broadcaster is a desktop application designed to make your multimedia broadcasting, live-streaming and recording a lot easier and more fun. XSplit Gamecaster is a simplified version of XSplit Broadcaster. We’re giving XSplit Broadcaster & XSplit Gamecaster 3-month premium license bundle for FREE! A US$ 24.95 value!

<b>Fatal1ty Mouse Port</b>
Fatal1ty Mouse Port is a customizable technology for PC gamers that is a part of F-Stream. After plugging the USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can use Fatal1ty’s personal preferred mouse polling rate at 500 Hz. F-Stream also provides the flexibility for gamers to adjust the mouse polling rate from 125 Hz to 1000 Hz. This is helpful for professional gamers to experience smoother game play and faster response time.
*Limitations:
1. Fatal1ty mouse port supports USB 1.1 mice.
2. Some mice might not support polling rates up to 1000Hz.
3. Some wireless USB mice might not be supported by Fatal1ty mouse port.
4. Fatal1ty mouse port does not support USB mice connected to a USB hub.

<b>F-Stream</b>
F-Stream is Fatal1ty's multi purpose software suite with a new interface, more new features and improved utilities, including Key Master, Fatal1ty Mouse Port, EZ OC, Auto Tuning, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!

<b>ASRock APP Shop</b>
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

<b>HDD Saver Technology</b>
There's a dedicated 4-pin HDD Saver Connector placed near the SATA ports. By connecting it to the HDDs, you can shut down or turn on the HDDs via software when needed. HDD Saver Technology secures more privacy, saves more energy, and extends HDD life.

<b>Thunderbolt™ Ready</b>
This motherboard has been certified with an ASUS ThunderboltEX II and is compatible with other third party Thunderbolt™ devices as well. With the Thunderbolt™ 2 Add-in-Card, it may support up to six daisy chained Thunderbolt™ devices up to 10 Gbps

<b>Surge Protection</b>
Protects the motherboard from excessive surges from the power supply unit.

<b>Lightning Protection</b>
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.

<b>ESD Protection</b>
USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

<b>USB Key</b>
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

<b>Restart to UEFI</b>
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.

<b>ASRock OMG (Online Management Guard)</b>
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

<b>UEFI Tech Service</b>
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

<b>Dehumidifier</b>
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

<b>Easy Driver Installer</b>
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.

DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
