Memory
| Supported memory types |
DDR3-SDRAM |
| Non-ECC |
Y |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA III connectors |
5 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of chassis fan connectors |
2 |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
Expansion slots
| PCI slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
2 |
Performance
| Motherboard chipset family |
AMD |
| Component for |
PC |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| eSATA ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| S/PDIF out port |
Y |
| PS/2 ports quantity |
1 |
Graphics
| DirectX version |
11.1 |
| HDCP |
Y |
Additionally
| Chipset |
AMD A78 FCH |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

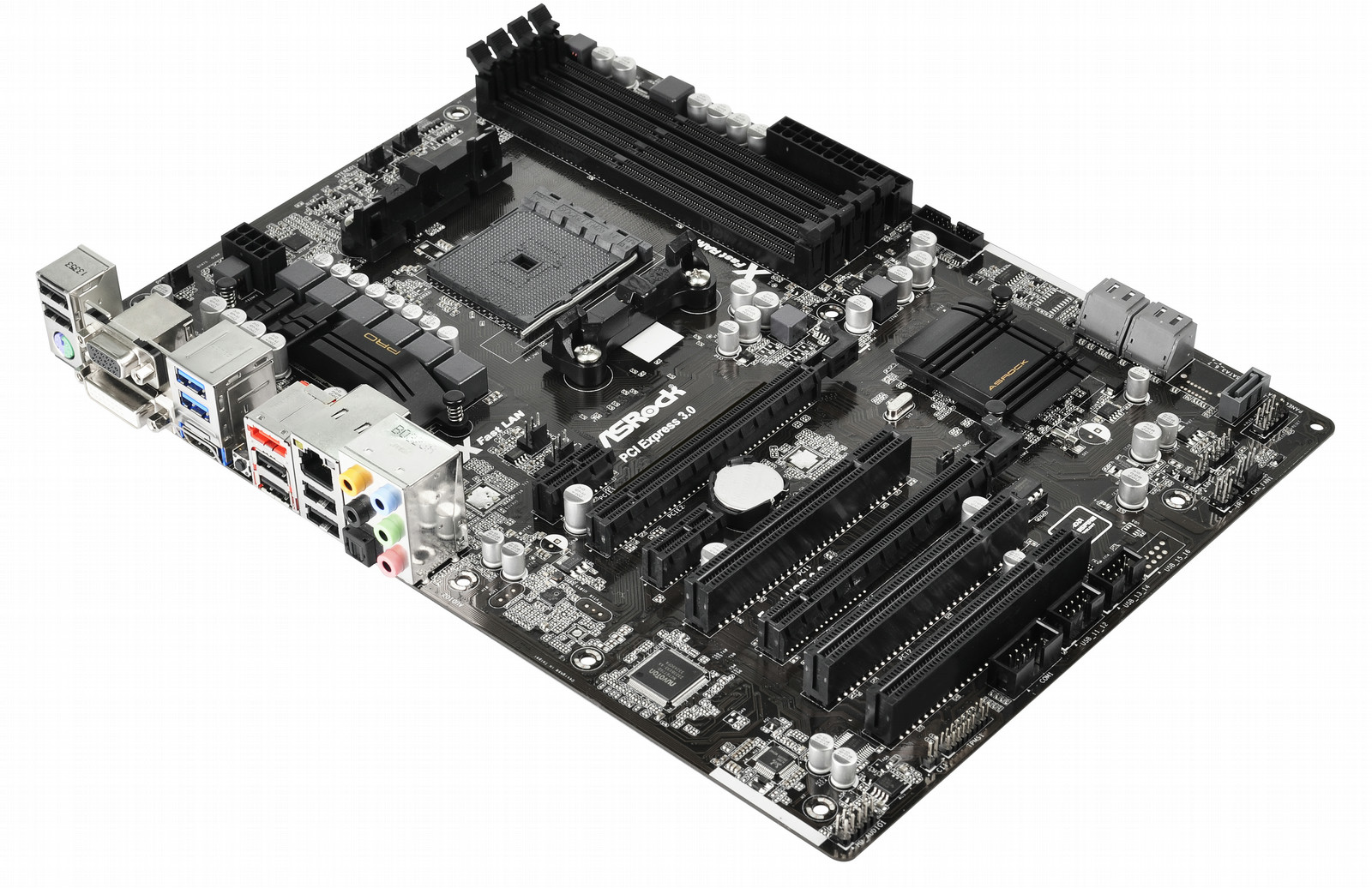

AMD A78 FCH, 4 x DDR3 DIMM, non-ECC, un-buffered, PCI Express 3.0 x16, 1 x PCI Express 2.0 x1, PS/2 x 1, D-Sub, DVI-D, 6 x USB 2.0, 2 x USB 3.0, RJ-45, ATX
<b>FM2/FM2+ APU Support</b>
This motherboard is compatible with both AMD FM2 and FM2+ APUs. Please note that some new features may be only supported by FM2+ APUs.
<b>High Density Glass Fabric PCB</b>
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
<b>All Solid Capacitor Design</b>
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
<b>TI® NE5532 Premium Headset Amplifier</b>
Whoever said that PC's cannot provide decent audio is wrong. Never give in to bad audio quality. Premium Headset Amplifier is what all headphiles been longing for on a PC! It uses TI® NE5532 amplifiers which can deliver high definition audio for up to 600 ohm professional headphones.
<b>4K/2K</b>
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Get ready to lose yourself in this eye popping virtual reality.
* Only FM2+ APU can support up to 4096 x 2160 resolution display via HDMI port.
<b>Triple Monitor</b>
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
<b>Next-Gen PCI-E 3.0 Support</b>
This ASRock motherboard supports the Next-Gen PCI-E 3.0! PCI Express 3.0 can maximize the bandwidth of the next-gen PCI Express 3.0 VGA cards, thus providing ultimate graphics performance.
