Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio system |
VIA VT1705 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
800, 1066, 1333 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA II connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Parallel connector |
Y |
| CPU fan connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
1759 MB |
| On-board graphics adapter |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
Processor
| Processor system buses supported |
533, 800, 1066, 1333 MHz |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel G41 |
| Graphics |
GMA X4500 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

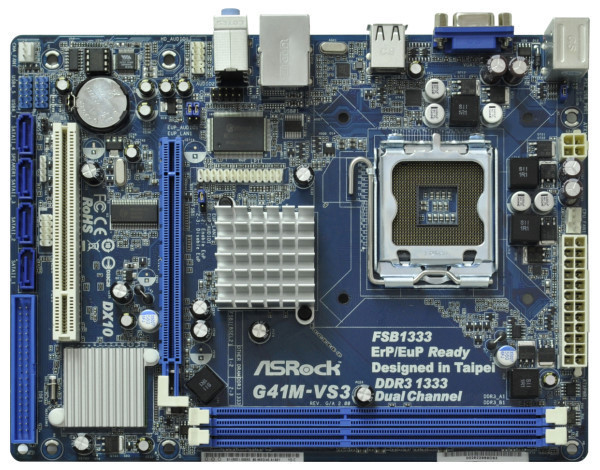

Micro ATX, LGA 775, Intel G41 + ICH7, 2 x DDR3 DIMM, Intel Graphics Media Accelerator X4500, 5.1 CH HD Audio, 10/100 Ethernet
- Supports FSB1333/1066/800/533 MHz CPUs.
- Supports Dual Channel DDR3 1333(OC).
- Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB.
- Supports ASRock XFast USB, XFast LAN, Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, SmartView, APP Charger.
- Free Bundle : CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial.
XFast LAN Technology
ASRock XFast LAN is a smart productivity tool to help you manage your priorities of internet applications, simplify your digital life and accomplish more. The innovative features include : Internet Application Prioritization, Lower Latency in Game, Traffic Shaping and Real-Time Analysis of Your Data. It's the smartest way to control your web programs.
ASRock XFast USB Technology - Faster Than Your Imagination!
ASRock XFast USB Technology redefines the new standard in high performance computing. Proving once again to be the pioneer in motherboard industry, ASRock XFast USB Series Motherboards integrate with the latest XFast USB Technology which delivers the world's fastest USB data transfer speed. According to the below graph, it shows that the ASRock XFast USB technology can even boost USB 2.0 performance up to 384.99%!
