Performance
| Motherboard form factor |
Micro ATX |
| Motherboard southbridge |
Intel ICH7 |
| Motherboard chipset family |
Intel |
| Audio system |
Realtek ALC662, VIA VT1705 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
800, 1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AMI |
| ACPI version |
1.1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| Number of SATA II connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
10.0 |
| Maximum graphics adapter memory |
1759 MB |
| On-board graphics adapter |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Wi-Fi |
N |
| Bluetooth |
N |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
1 |
Processor
| Processor system buses supported |
533, 800, 1066, 1333 MHz |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel G41 |
| Graphics |
GMA X4500 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

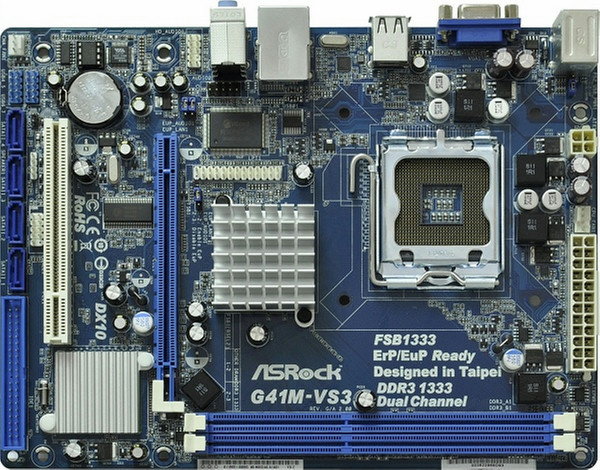

Intel G41, Intel ICH7, 2 x DDR3 DIMM, AMI Legal BIOS, Intel Graphics Media Accelerator X4500, PCI Express x16, PCI, PS/2 x 2, VGA, USB 2.0 x 4, RJ-45 LAN, Micro ATX
Supports FSB1333/1066/800/533 MHz CPUs
Supports Dual Channel DDR3 1333(OC)
Intel® Graphics Media Accelerator X4500, Pixel Shader 4.0, DirectX 10, Max. shared memory 1759MB
Supports ASRock XFast RAM, XFast LAN, XFast USB Technologies
Supports Instant Boot, Instant Flash, OC DNA, OC Tuner, IES, APP Charger
Free Bundle : CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
Instant Boot
ASRock has overcome the technical obstacles and exclusively invented a new technology that allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), it also provides clean OS, and saves the most power energy.
Instant Flash
ASRock Instant Flash is an exclusive and the most user-friendly BIOS flash utility developed by ASRock. It is embedded in Flash ROM which is used to update the system BIOS without having to enter operating systems like MS-DOS or Windows.
Free Bundle - Cyberlink MediaEspresso 6.5 Trial
CyberLink MediaEspresso 6.5 trial now supports hardware transcoding and is optimized to accelerate conversion of all your favorite media files for your favorite portable players. Now you can easily display your favorite movies, songs and photos on iPhone, iPad, PSP, Xbox, Youtube, Facebook etc. Compile, convert and enjoy images and songs as much as you want and enhance your videos to new levels with TrueTheater Technology. Try it today!
Limitations:
30-day trial limitation
Convert videos to the H.264 format 50 times
Google Chrome Browser & Toolbar
Chrome is a fast, simple, and secure web browser, built for the modern web. Google Toolbar is designed to help you find what you're looking for quickly and discover new things along the way. Now ASRock has both Chrome and Google Toolbar bundled with our motherboards so users may enjoy better internet surfing experiences.
