Networking
| Wi-Fi |
Y |
| Wake-on-LAN ready |
Y |
| Bluetooth version |
4.0 |
| Bluetooth |
Y |
Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| PC health monitoring |
CPU, FAN, Temperature, Voltage |
| Audio system |
Realtek ALC892 |
| Component for |
Mini PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
2133 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
| Processor thermal power (max) |
95 W |
| Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
| Number of M.2 (M) slots |
1 |
Graphics
| DirectX version |
12.0 |
| Maximum graphics adapter memory |
1024 MB |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots |
1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel H110 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

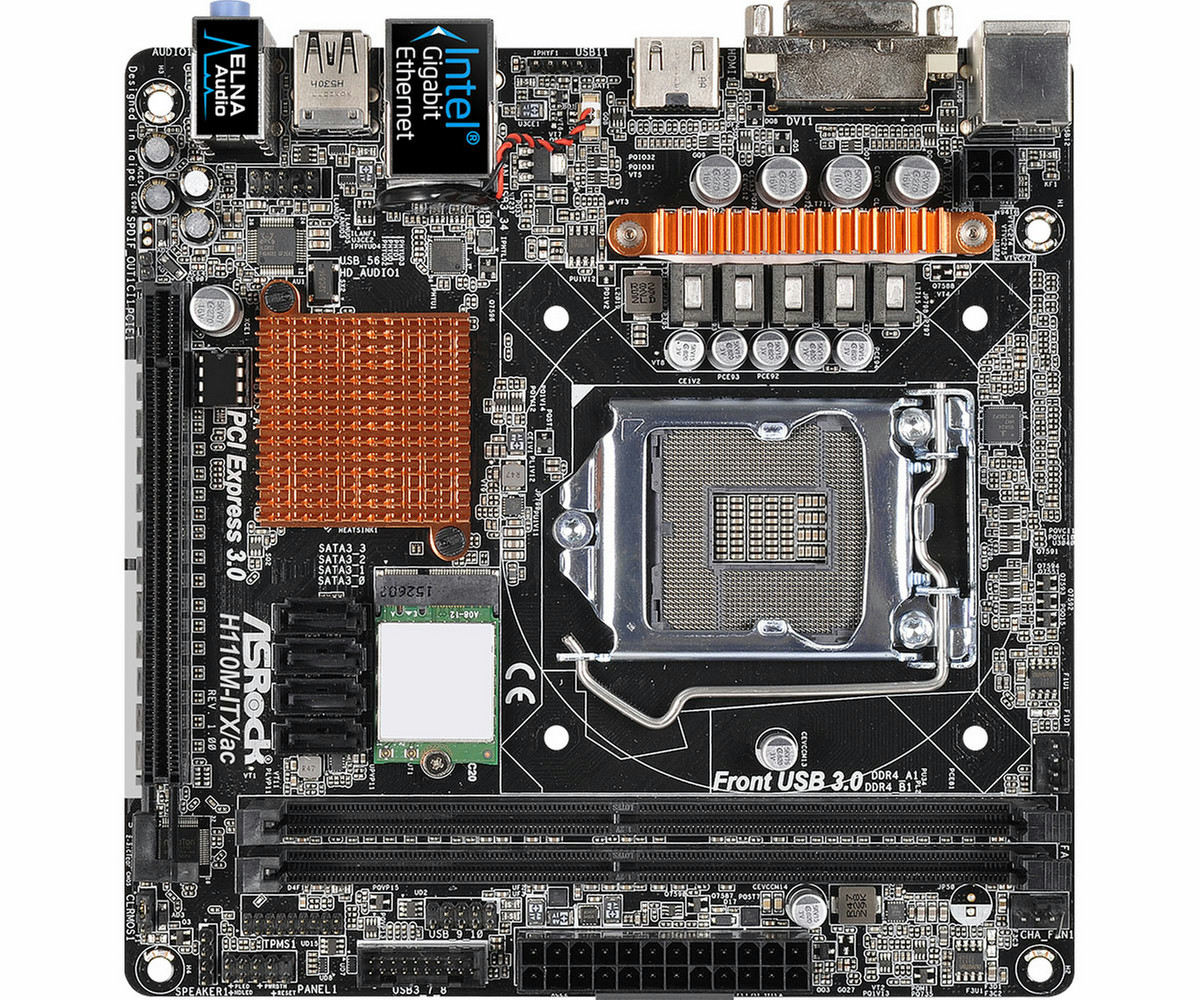

H110M-ITX/ac, Intel H110, Intel Socket 1151, 2 x DIMM DDR4 2133MHz, 1 x PCI Express 3.0 x16, 4 x SATA III, 1 x M.2 Socket (Key E), Dual Band 802.11ac WiFi, Bluetooth 4.0, Mini-ITX
- ASRock Super Alloy
- Supports 6th Generation Intel® Core™ Processors (Socket 1151)
- Supports DDR4 2133
- 1 PCIe 3.0 x16
- Graphics Output Options: DVI-D, HDMI
- 1 Dual Band 802.11ac WiFi + BT v4.0 Module, 2 ASRock WiFi 2.4/5 GHz Antennas
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 4 SATA3, 1 M.2
- 4 USB 3.0 (2 Front, 2 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
