Performance
Motherboard form factor |
Mini ITX |
Motherboard chipset family |
Intel |
Intel Extreme Memory Profile (XMP) |
Y |
Audio system |
HD Audio with Content Protection (Realtek ALC892 Audio Codec) |
Component for |
Mini PC |
Memory
Supported memory clock speeds |
2133 MHz |
Non-ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR4-SDRAM |
Memory channels |
Dual |
Memory slots type |
DIMM |
Number of memory slots |
2 |
Maximum internal memory |
32 GB |
BIOS
BIOS memory size |
8 MB |
BIOS type |
UEFI AMI |
ACPI version |
5.0 |
Processor
Maximum number of SMP processors |
1 |
Processor thermal power (max) |
95 W |
Intel Core i3/i5/i7 series |
i3-6xxx, i5-6xxx, i7-6xxx |
Internal I/O
USB 2.0 connectors |
2 |
Number of SATA connectors |
4 |
ATX Power connector (24-pin) |
Y |
TPM connector |
Y |
USB 3.0 (3.1 Gen 1) connectors |
1 |
Number of SATA III connectors |
4 |
CPU fan connector |
Y |
Chassis intrusion connector |
Y |
Number of chassis fan connectors |
1 |
Front panel audio connector |
Y |
Number of M.2 (M) slots |
1 |
Front panel connector |
Y |
12V power connector |
Y |
Graphics
DirectX version |
12.0 |
Graphics adapter family |
AMD, Intel, NVIDIA |
Discrete graphics support |
Y |
HDCP |
Y |
Networking
Wake-on-LAN ready |
Y |
Bluetooth version |
4.0 |
Wi-Fi |
Y |
Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Bluetooth |
Y |
Packaging content
Trial software |
AntiVirus Software |
Drivers included |
Y |
Utilities included |
Y |
Quick installation guide |
Y |
Back panel I/O ports
Combo headphone/mic port |
Y |
DVI-D ports quantity |
1 |
PS/2 ports quantity |
1 |
Headphone outputs |
1 |
Microphone in |
Y |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
HDMI ports quantity |
1 |
USB connector type |
USB Type-A |
Expansion slots
PCI Express x16 slots |
1 |
PCI Express x16 (Gen 3.x) slots |
1 |
Processor special features
Intel® Quick Sync Video Technology |
Y |
Intel® Insider™ |
Y |
Intel Clear Video Technology |
Y |
Intel® Turbo Boost Technology |
2.0 |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
InTru™ 3D Technology |
Y |
Chipset |
Intel H110 |
Intel HD Audio Technology |
Y |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

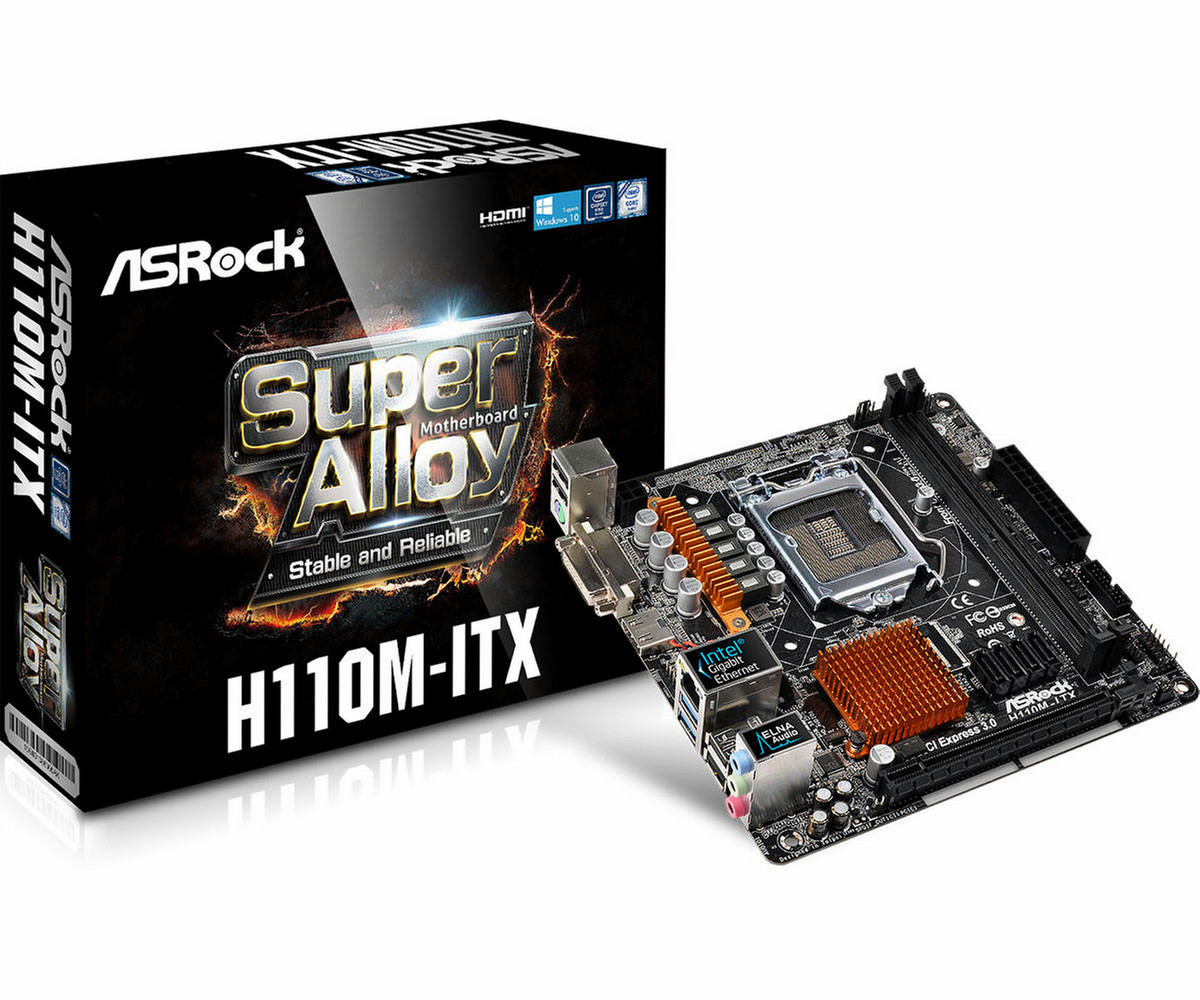

ITX, Intel H110, 2 x DDR4 DIMM 2133 MHz, PCIe 3.0 x16, DVI-D, HDMI, 7.1 CH HD Audio, 4 x SATA3, M.2, 4 x USB 3.0, 17 x 17 cm
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
802.11ac WiFi Dual-Band (2.4/5 GHz)
This motherboard comes with an exclusive 802.11ac WiFi (5G WiFi) module that supports up to 433Mbps wireless networks and Bluetooth v4.0. Experience up to 144% speed boost compared to your old 802.11n WiFi!
UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Win 7 USB Patcher
Due to chipset limitation, when you want to install Windows® 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file, or check this page for more details on how to install Windows® 7 OS.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
ASRock Cloud
ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously!
