Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Audio output channels |
5.1 channels |
| PC health monitoring |
FAN, Temperature |
| Audio system |
Realtek ALC662 |
| Component for |
PC |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Certification |
FCC, CE, WHQL, ErP, EuP |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
1.1 |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| Supported storage drive interfaces |
Serial ATA II, Serial ATA III |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11.1 |
| Maximum graphics adapter memory |
1792 MB |
| On-board graphics adapter |
N |
| Discrete graphics support |
Y |
| Maximum resolution |
1920 x 1200 pixels |
| HDCP |
Y |
Packaging content
| Cables included |
SATA |
| Trial software |
Start8 |
| Drivers included |
Y |
| Bundled software |
Google Chrome |
| Quick installation guide |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
4 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
Networking
| Ethernet interface type |
Gigabit Ethernet |
Processor
| Processor socket |
LGA 1150 (Socket H3) |
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
| Compatible processor series |
Celeron, Core i3, Core i5, Core i7, Pentium, Xeon |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| Chipset |
Intel H81 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

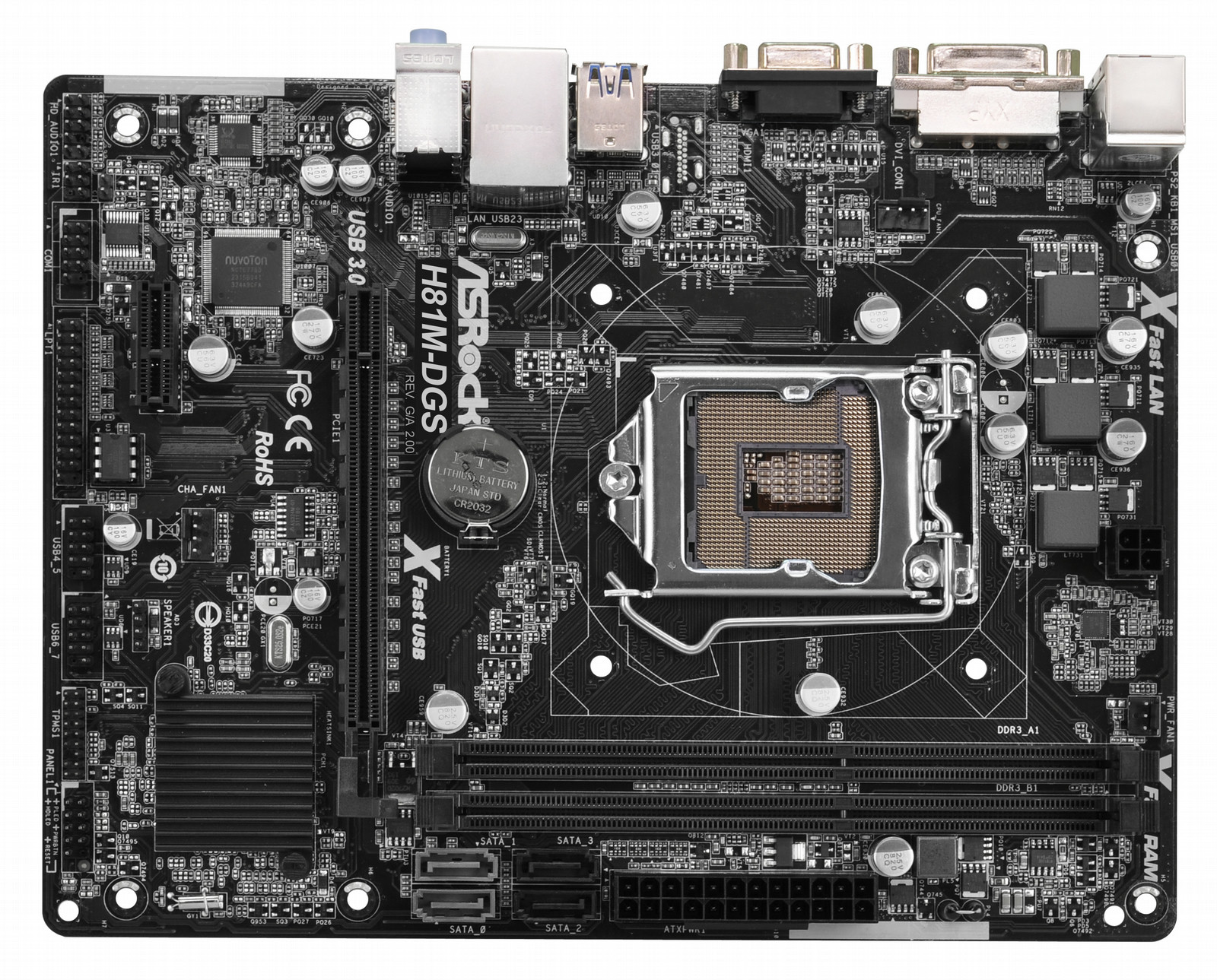

H81M-DGS R2.0, LGA1150, Realtek ALC662, 1x PCIe 2.0 x16, 1x PCIe 2.0 x1, 2x SATA III, 2x SATA II, 2x USB 3.0, 8x USB 2.0
All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast 555, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!
FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
OMG
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
Good Night LED
Are you eager to enjoy an absolutely better stand-by environment than ever before? ASRock Good Night LED technology can offer you a better environment by extinguishing the unessential LED. By enabling Good Night LED in BIOS, the Power / HDD / LAN LED will be switched off when system is on. Not only this, Good night LED will automatically switch off Power and Keyboard LED when the system enters into Standby / Hibernation mode as well.
Internet Flash
Updating the UEFI is easier than ever with ASRock Internet Flash! Simply by a few clicks it searches for available UEFI firmware updates from ASRock's servers, then it automatically downloads and flashes the latest UEFI file within the UEFI setup utility without having to enter Windows® OS.
