Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
| Parallel port via internal header |
Y |
Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| PC health monitoring |
CPU, FAN, Power supply, Temperature |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
Realtek ALC662 |
| Component for |
PC |
| Consumer infrared headers |
Y |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
1.1 |
Graphics
| DirectX version |
11.1 |
| Maximum graphics adapter memory |
1792 MB |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
| HDCP |
Y |
Other features
| Number of processors supported |
1 |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI Express x1 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 2.x) slots |
1 |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Processor
| Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Processor special features
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| Chipset |
Intel H81 |
| Количество слотов PCI Express |
2 |
| Dual-link DVI |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

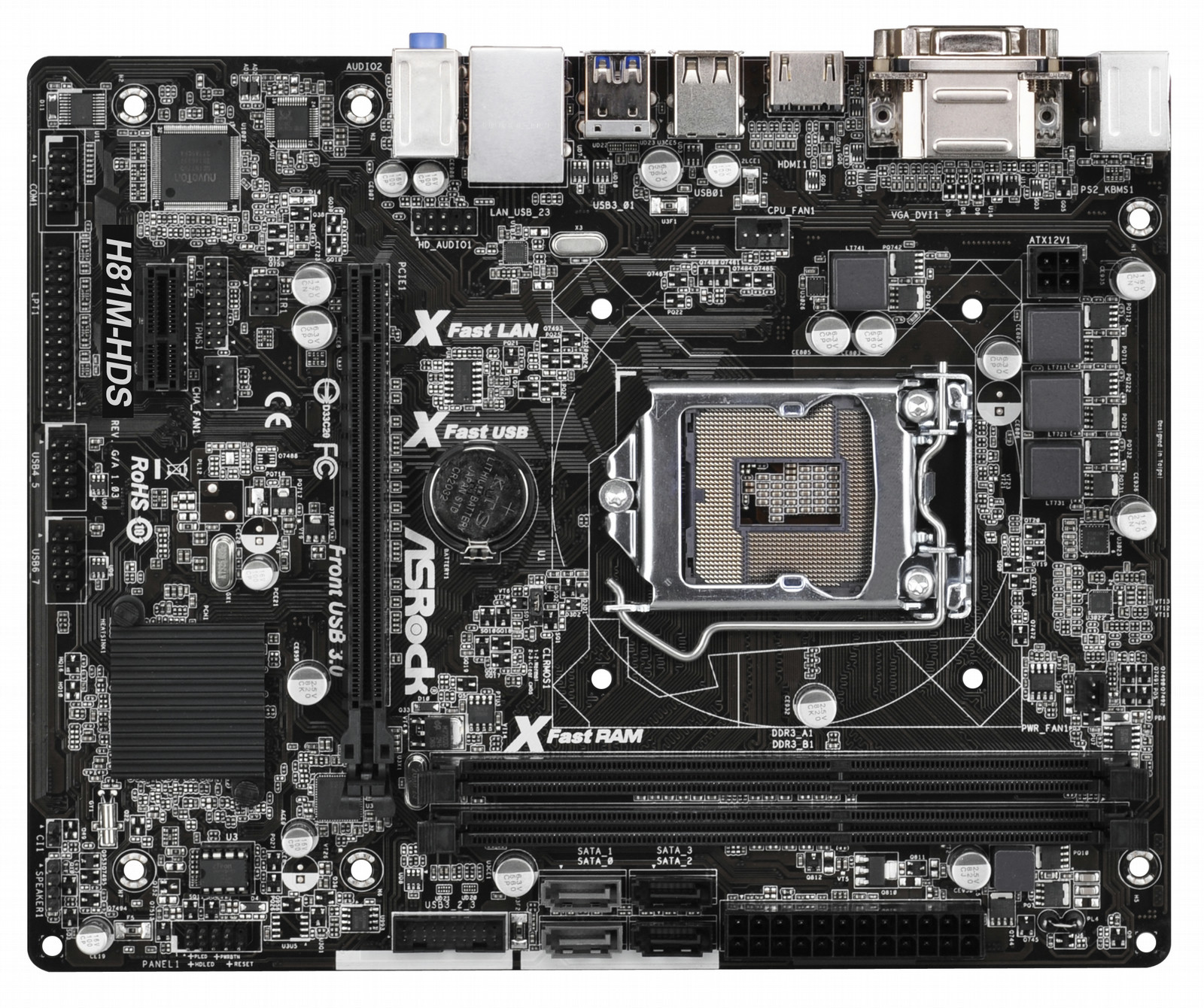

LGA1150, Intel H81, 2 x DDR3 DIMM, 2 x SATA3, 2 x SATA2, 2 x USB 3.0, 4 x USB 2.0, 2 x PS/2, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 5.1 CH HD Audio, Gigabit Ethernet, Micro ATX
- Supports 4th Gen Intel® Core™ i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 Package.
- 100% All Solid Capacitor design.
- Supports Dual Channel DDR3 1600.
- 1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1.
- Graphics Output Options : D-Sub, DVI-D, HDMI.
- Realtek Gigabit LAN.
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec).
- 2 x SATA3, 2 x SATA2, 4 x USB 3.0 (2 Front, 2 Rear). 8 x USB 2.0.
- Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key.
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.
4 USB 3.0 (2 Front, 2 Back)
Can't get enough of those high speed USB 3.0 ports? Besides the two USB 3.0 ports on the rear I/O supported by the chipset, this motherboard also has an added chip to support an additional front USB 3.0 header for two more convenient front USB 3.0 ports.
4 Power Phase Design
Compared to other competitors’ 3 Power Phase design on the motherboards, ASRock adds a finishing touch by implementing 4 Power Phase design and sturdy components for delivering smoother power to the CPU, thus enhancing the motherboard’s performance and stability at lower temperatures.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast 555, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!
FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
OMG
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
HDMI™ (High-Definition Multimedia Interface)
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
