Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Intel Extreme Memory Profile (XMP) |
Y |
| PC health monitoring |
CPU, FAN, Temperature, Voltage |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
HD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
4 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
1.1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
2 |
| Number of SATA II connectors |
2 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Front panel audio connector |
Y |
Graphics
| DirectX version |
11.1 |
| Maximum graphics adapter memory |
1792 MB |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Wi-Fi |
Y |
Back panel I/O ports
| WiFi-AP antenna jack |
1 |
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Packaging content
| Trial software |
Start8, AntiVirus |
| Drivers included |
Y |
| Quick installation guide |
Y |
Processor
| Processor system buses supported |
1600 MHz |
Expansion slots
| PCI Express x16 (Gen 2.x) slots |
1 |
| Mini PCI Express slots (half) |
1 |
Processor special features
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel H81 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

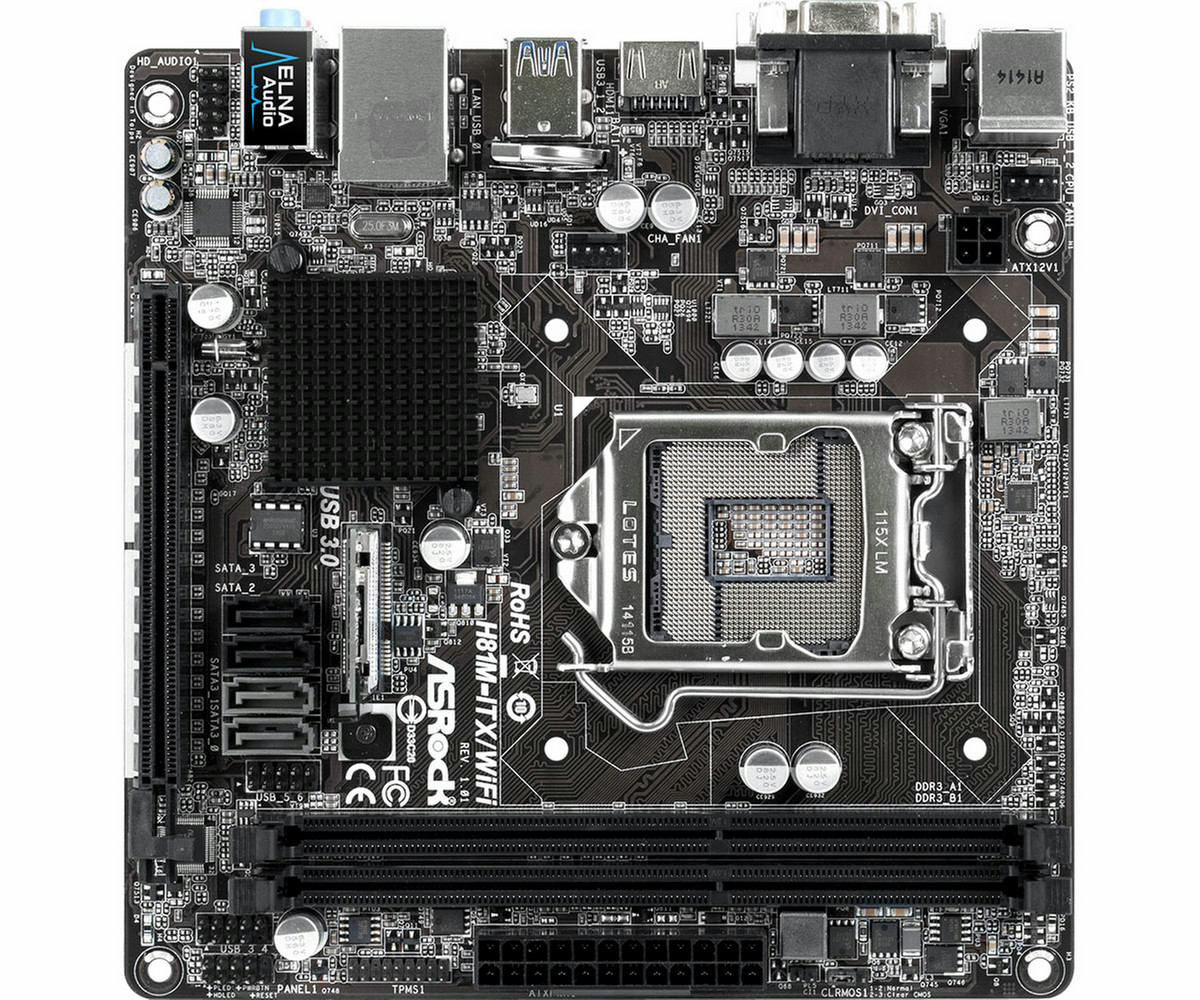

Intel H81, Socket 1150, 2x DDR3/DD3L DIMM, 32Mb AMI UEFI, ACPI 1.1, 5.1 CH HD Audio, Gigabit Ethernet, 802.11n, Mini-ITX
Features
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
USB :Added ICs to protect the onboard USB ports from electrostatic discharges.
LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.
