Performance
Motherboard form factor |
Mini ITX |
Motherboard chipset family |
Intel |
Intel Remote Wake technology |
Y |
PC health monitoring |
CPU, FAN, Power supply, Temperature |
Processor with Intel Graphics Technology required |
Y |
Audio system |
Realtek ALC892 |
Component for |
PC |
Consumer infrared headers |
Y |
Memory
Supported memory clock speeds |
1066, 1333, 1600 MHz |
Non-ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR3-SDRAM |
Memory channels |
Dual |
Memory slots type |
SO-DIMM |
Supported memory module capacities |
2GB, 4GB, 8GB |
Number of memory slots |
2 |
Maximum internal memory |
16 GB |
BIOS
BIOS memory size |
4 MB |
BIOS type |
UEFI AMI |
Clear CMOS jumper |
Y |
ACPI version |
1.1 |
Processor
Maximum number of SMP processors |
1 |
Processor thermal power (max) |
65 W |
Intel Core i3/i5/i7 series |
i3-4xxx, i5-4xxx, i7-4xxx |
Internal I/O
USB 2.0 connectors |
2 |
S/PDIF out connector |
Y |
Number of SATA connectors |
2 |
Number of SATA III connectors |
2 |
CPU fan connector |
Y |
Number of COM connectors |
1 |
Number of chassis fan connectors |
1 |
Front panel audio connector |
Y |
Graphics
DirectX version |
11.1 |
Maximum graphics adapter memory |
1792 MB |
Discrete graphics support |
Y |
HDCP |
Y |
Number of displays supported |
3 |
Expansion slots
Mini PCI Express slots |
1 |
PCI Express x4 (Gen 2.x) slots |
1 |
Packaging content
Drivers included |
Y |
Quick installation guide |
Y |
Back panel I/O ports
Headphone outputs |
1 |
Microphone in |
Y |
DVI-I ports quantity |
1 |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
HDMI ports quantity |
1 |
Processor special features
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Additionally
Chipset |
Intel H81 |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

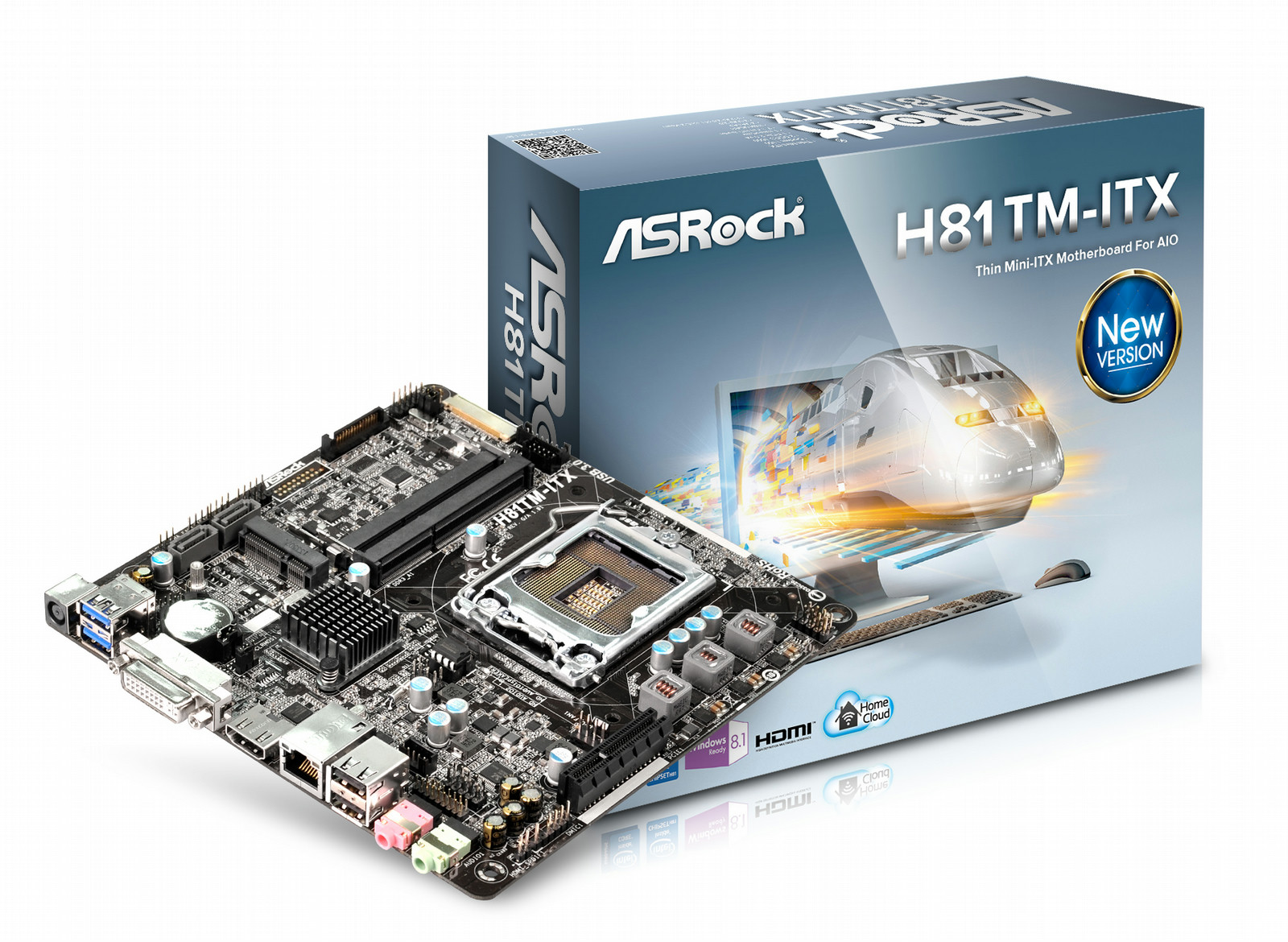

LGA1150, Intel H81, 2 x DDR3 SO-DIMM, 2 x SATA3, 2 x USB 3.0, 2 x USB 2.0, 1 x PCI-E 2.0 x4, 1 x mini-PCI-E, HDMI, DVI-I, LVDS, 7.1 CH HD Audio, Gigabit Ethernet, Mini-ITX
- A-Style : Home Cloud.
- Solid Capacitors for CPU power.
- Supports Dual Channel DDR3 1600 memory, 2 x SO-DIMM slots.
- 1 x PCIe 2.0 x4, 1 x mini-PCIe.
- Graphics Output Options: HDMI, DVI-I and LVDS.
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec).
- Intel® Gigabit LAN.
- 2 x SATA3, 2 x USB 3.0, 6 x USB 2.0 (4 Front, 2 Rear).
- 1 x Digital MIC header.
- Supports A-Tuning, XFast LAN, XFast RAM, Easy Driver Installer, FAN-Tastic Tuning, USB Key.
Home Cloud - Remote Desktop Anytime, Anywhere
This motherboard supports remote wake with the onboard Intel® LAN, so you can connect with your PC from anywhere in the world. You will be able to wake up your PC or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
Imagine yourself as a desperado riding into the sunset, an outcast of the society exiled from your country, or simply at the groceries two blocks away from home. You miss your personal computer so much and you'll need Home Cloud for the following real world scenarios:
Mail
Keep your stored mail near at hand whenever you need it.
Multimedia
Stream your secret stash of vids, music and pics.
TV
Watch your favorite local TV programs by connecting to your PC.
Documents
Access or send files remotely anywhere.
Monitor
Keep an eye on your pets or children when you are away from home.
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast LAN, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!
XFast LAN
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
XFast RAM
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
OMG
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Fast Boot
With ASRock’s exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows® 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
Internet Flash
Updating the UEFI is easier than ever with ASRock Internet Flash! Simply by a few clicks it searches for available UEFI firmware updates from ASRock's servers, then it automatically downloads and flashes the latest UEFI file within the UEFI setup utility without having to enter Windows® OS.
FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
