Processor special features
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Idle States |
N |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
22 mm |
| Processor ARK ID |
35641 |
| Processor code |
SLG9Y |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
Processor
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
12 |
| Processor operating modes |
64-bit |
| Stepping |
C0 |
| Processor front side bus |
533 MHz |
| Processor cache type |
L2 |
| Number of Processing Die Transistors |
94 M |
| Processor core voltage (AC) |
1.25-1.4 V |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
8 W |
| Processor cores |
2 |
| Processor frequency |
1.6 GHz |
| Tcase |
85.2 °C |
| ECC supported by processor |
N |
| Bus type |
FSB |
Memory
| Memory layout (slots x size) |
2 x 1 GB |
| Maximum internal memory |
4 GB |
| Internal memory type |
DDR2-SDRAM |
| Memory clock speed |
800 MHz |
| Internal memory |
2 GB |
Graphics
| Discrete graphics adapter model |
NVIDIA GeForce 9400M |
| On-board graphics adapter |
Y |
| Discrete graphics adapter memory |
256 GB |
Storage
| Hard drive speed |
5400 RPM |
| Total storage capacity |
320 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA II |
Performance
| Audio system |
HD Audio |
| Audio output channels |
7.1 channels |
Optical drive
| Optical drive type |
DVD Super Multi |
Packaging content
| Handheld remote control |
N |
| Display included |
N |
Other features
| TV tuner integrated |
N |
| Acoustic pressure emissions |
26 dB |
| Floppy drive installed |
N |
| Networking features |
Gigabit LAN |
| Power supply type |
19V Adapter |
Ports & interfaces
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DVI port |
N |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| InTru™ 3D Technology |
N |
| Chipset |
NVIDIA ION |
| Processing die size |
52 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |

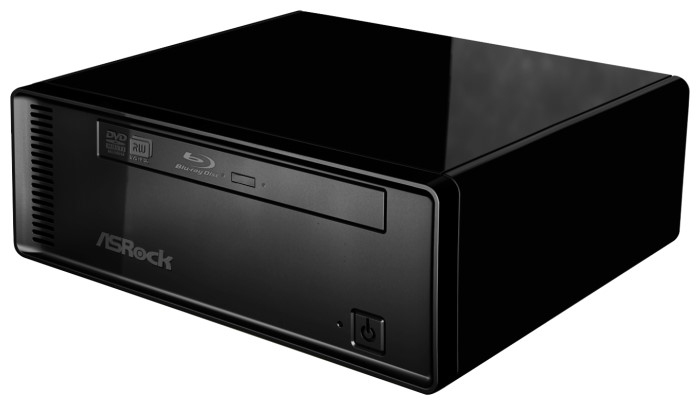

ION 330Pro, Intel Atom 330, 2GB DDR2 800Mhz, 320GB SATA, DVD Super Multi, Black
Intel® Dual Core Atom™ 330.
Equipped with the Intel® Dual Core Atom™ 330 Processor, ASRock ION 330 series bring you the highest performance with the lowest power consumption.
Windows® 7.
Compatible with Windows® 7, we assure every ASRock NetTop ION 330 is the worldwide first ION system passed Windows® 7.
NVIDIA® ION™ GPU with Full HD 1080p playback capability.
ASRock ION 330 series come with the powerful NVIDIA® ION™ graphics processor which is well-known for it’s outstanding graphics performance.
EuP 2.0 Ready.
Save most power consumption with ASRock NetTop ION 330 series ! By adopting Nuvoton NCT6775F IC, these two models have achieved the EuP2.0 standard which indicates the total AC power consumption of the completed system is under 0.5W in off mode.
DTS.
Get the Cinema-Style Sound from your PC! With DTS, ASRock ION 330 series can let you enjoy a better way of experiencing music, movies and games. It delivers the advanced and excellent audio quality, enables you to hear every detail in riveting surround sound.
Capable to support RAID 0, 1 by adopting the 2nd 2.5” HDD.
Unprecedentedly, ASRock ION 330 series are capable to support RAID 0, 1 by adopting the second 2.5” HDD in the 2.5 Liter system! You can enjoy a faster transfer speed and never be afraid the data loss or damages!
Powered eSATA/USB port.
Powered eSATA/USB connector can not only support USB device, but also eSATA devices without additional power source. It is compatible with both eSATA and USB interfaces.
Energy Star 5.0 Level.
We require every ASRock NetTop pass the Energy Star 5.0 standard, in order to avoid unnecessary power consumption.
HDMI.
High-Definition Multimedia Interface eliminates the need for signal conversions and ensures the best quality video.
Instant Boot.
Allows you to turn on your PC and boot up to Windows® in 4 seconds! ASRock Instant Boot not only excels in the Boot Up speed (3~4 sec.), but also provides clean OS and saves the most power energy.
OC Tuner.
ASRock OC Tuner is a user-friendly ASRock overclocking tool which allows you to guard your system by hardware monitor function and overclock your hardware devices to get the best system performance.
