Processor special features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® OS Guard |
Y |
| Intel® Secure Key |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel® Smart Response Technology |
N |
| Intel Clear Video Technology |
Y |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
| Intel vPro Technology |
N |
| Intel® Quick Sync Video Technology |
Y |
| Conflict Free |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Trusted Execution Technology |
N |
| Thermal Monitoring Technologies |
Y |
| Execute Disable Bit |
Y |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
Back panel I/O ports
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| DVI-D ports quantity |
1 |
Performance
| Cooling type |
Passive |
| Audio system |
Realtek ALC892 |
| Component for |
Mini PC |
| PC health monitoring |
Voltage, Temperature, FAN, CPU |
| Motherboard chipset family |
Intel |
| Intel Rapid Storage Technology |
N |
Processor
| Processor cores |
4 |
| Processor frequency |
1.6 GHz |
| Maximum number of SMP processors |
1 |
Memory
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
| Memory slots type |
SO-DIMM |
| Memory channels |
Dual |
| Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
1 |
| Parallel port via internal header |
Y |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
| Number of SATA III connectors |
4 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Expansion slots
| Mini PCI Express slots (half) |
1 |
| PCI Express x1 (Gen 2.x) slots |
1 |
Technical details
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Rapid Storage Technology enterprise |
N |
| Intel Virtualization Technology (VT-x) |
Y |
Graphics
| Graphics adapter family |
Intel |
| On-board graphics adapter |
Y |
| DirectX version |
11.1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Intel HD Audio Technology |
Y |
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Graphics |
HD Graphics |

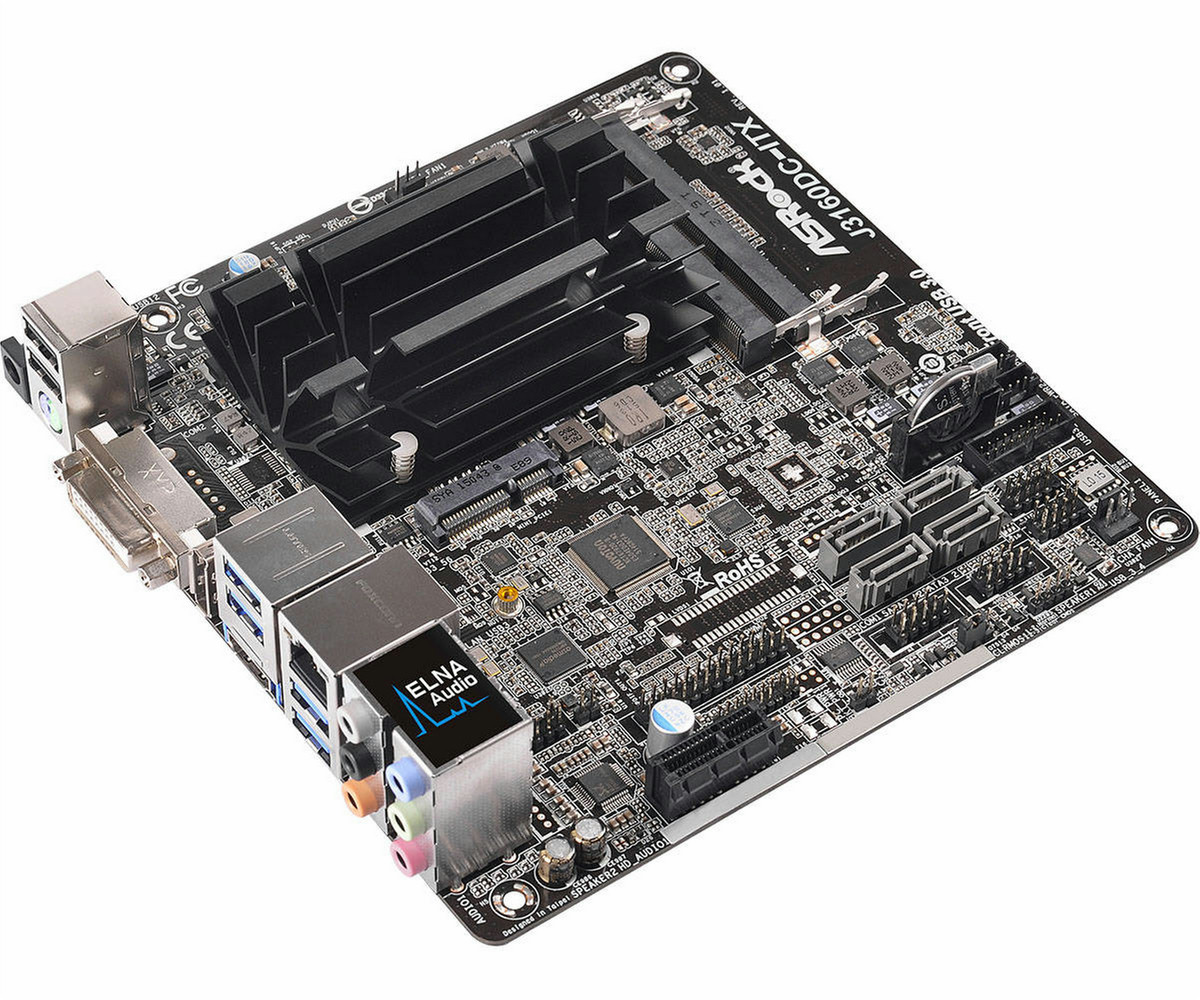

J3160DC-ITX, Intel Quad-Core Processor J3160 (up to 2.24 GHz), 2 x DDR3/DDR3L 1600/1066, Intel HD Graphics 400, 4 x SATA3 6.0 Gb/s, Mini-ITX
- ASRock Super Alloy
- Intel® Quad-Core Processor J3160
- Solid Capacitor design
- Supports Dual Channel DDR3/DDR3L SO-DIMM 1600
- 1 PCIe 2.0 x1, 1 Half-Size Mini-PCIe
- 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header
- 1 x DC Jack (Compatible with the 19V power adapter)
- Graphics Output Options : DisplayPort, DVI-D, HDMI
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 6 USB 3.0 (2 Front, 4 Rear)
- Supports Full Spike Protection, ASRock Live Update & APP Shop
