Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Component for |
Mini PC |
Memory
| Supported memory clock speeds |
1333, 1600, 1866 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
5.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| COM ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| USB connector type |
USB Type-A |
| VGA (D-Sub) ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
2 |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| Ethernet LAN connectors |
1 |
| Audio connector |
Y |
Graphics
| DirectX version |
12.0 |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| HDCP |
Y |
Technical details
| Integrated LAN |
Y |
| Total number of SATA connectors |
2 |
| ECC supported by processor |
N |
Expansion slots
| PCI Express x16 (Gen 2.x) slots |
1 |
Packaging content
| Drivers included |
Y |
| Utilities included |
Y |
| Quick installation guide |
Y |
Processor
| Processor cores |
4 |
| Processor frequency |
1.5 GHz |
Additionally
| Graphics |
Intel HD Graphics 500 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

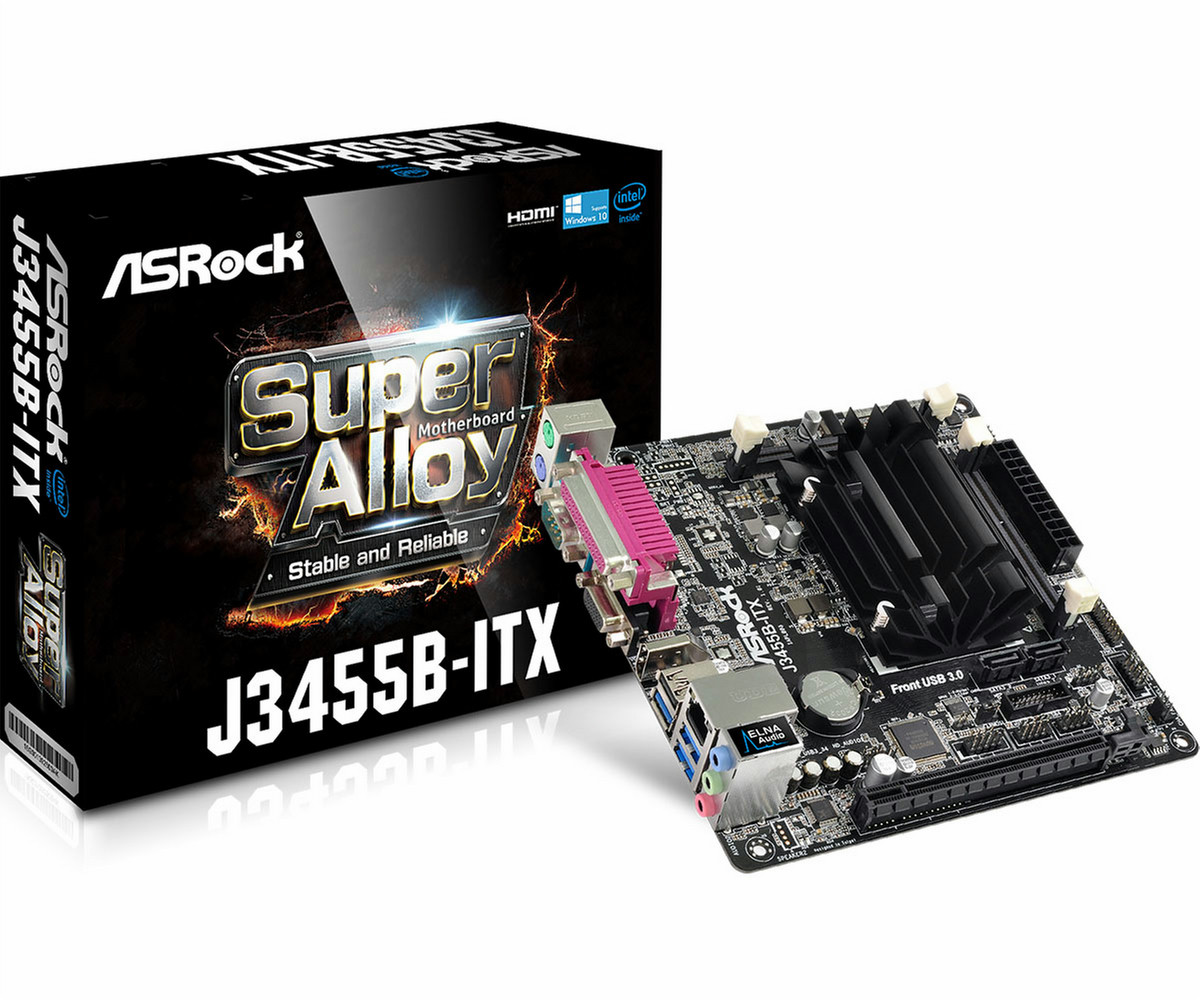

ASRock Super Alloy, Intel Quad Core J3455 2.3 GHz, DDR3 / DDR3L SO-DIMM, 64 Mb AMI UEFI BIOS, ACPI 5.0, SMBIOS 3.0, Intel HD Graphics 500, DirectX 12, D-Sun, HDMI, 4K x 2K @ 30 Hz, 2560 x 1600 @ go Hz, Auto Lip Sync, xvYCC, HBR, H.264, HEVC, 7.1 Realtek ALC887, ELNA, PCIE Gigabit LAN 10/100/100 Mb/s, Realtek RTL8111GT, 802.3 az, PXE, PCI Express 2.0 x16, SATA3 6.0 gb/s, NCQ, AHCI, COM, TPM, 24-pin ATX, USB 2.0, USB 3.0, PS/2, LPT, RJ-45, Mini-ITX
High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
D-Sub, HDMI, Parallel, COM
Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback.
HEVC 10-bit Decoding
Supports HEVC 10-bit decoding to provide substantially improved video quality and higher bit depth video experience. The 10-bit content supports up to 1.07 billion color palette, it can have more detail of image, and greater range between the brightest and darkest part of the image.
Intel® Quad-Core Processor J3455 (Up to 2.3 GHz)
Improved performance, lower power consumption, and new multimedia capabilities.
Supports Standard
& Low Voltage SO-DIMMsCapable of supporting both standard and low-voltage SO-DIMMs.
16GB Memory Support
Each slot supports 8GB memory modules, thus delivering a maximum capacity up to 16GB.
Power Gear
Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
