Processor
| Number of processors installed |
1 |
| Thermal Design Power (TDP) |
13 W |
| Processor cache |
1 MB |
| Processor lithography |
45 nm |
| Processor codename |
Pineview |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| FSB Parity |
N |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Number of Processing Die Transistors |
176 M |
| Processor operating modes |
64-bit |
| Stepping |
B0 |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
| ECC supported by processor |
N |
| Bus type |
DMI |
| Maximum internal memory supported by processor |
4 GB |
| Processor cache type |
L2 |
Ports & interfaces
| DVI port |
Y |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
| Combo headphone/mic port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Processor special features
| Intel Rapid Storage Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel Demand Based Switching |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
49490 |
| Processor code |
SLBXC |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Clear Video Technology |
N |
| Intel® Smart Response Technology |
N |
| Intel Dual Display Capable Technology |
N |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE3, SSE2, SSSE3 |
Storage
| Storage media |
HDD |
| Hard drive size |
2.5 " |
| Hard drive capacity |
320 GB |
| Hard drive speed |
5400 RPM |
| Total storage capacity |
320 GB |
| Card reader integrated |
N |
| Hard drive interface |
Serial ATA |
| Number of hard drives installed |
1 |
Other features
| Networking features |
Gigabit Ethernet |
| Power supply type |
AC/DC |
| Form factor |
2,5L sized PC |
| Platform |
PC |
| Compliance industry standards |
IEEE 802.3, 802.3u, 802.3ab |
| Graphics adapter family |
NVIDIA |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi |
Y |
Packaging content
| Display included |
N |
| Handheld remote control |
Y |
Graphics
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
NVIDIA ION |
Performance
| Audio output channels |
7.1 channels |
| Audio system |
HDA |
Memory
| Memory clock speed |
800 MHz |
| Memory layout (slots x size) |
1 x 2 GB |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
4 GB |
| Internal memory |
2 GB |
| Internal memory type |
DDR2-SDRAM |
Optical drive
| Optical drive type |
Blu-Ray DVD Combo |
Additionally
| AC adapter bundled |
Y |
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Processing die size |
87 mm² |

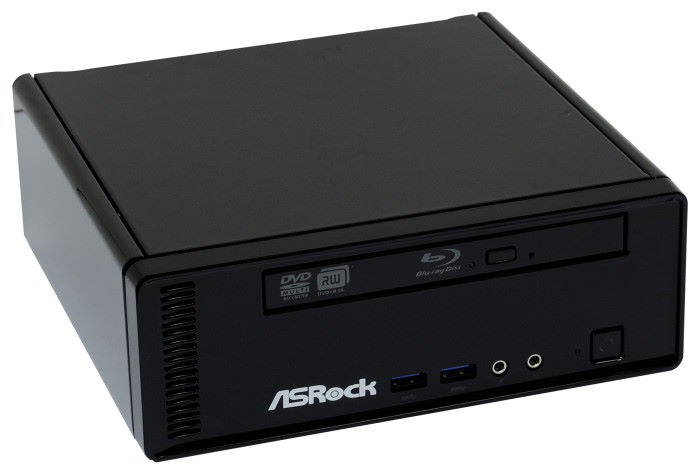

Intel ICH8M, Intel Atom D525 (1M Cache, 1.80 GHz), 2048 DDR2, 320GB SATA HDD, GeForce GT218, BD Combo, Gigabit Ethernet, 802.11b/g/n, Black
dts
Supporting industry's leading audio solution of the DTS Connect, ASRock ION 3D brings the cinema quality sound for your HTPC. With more personal computers being used as home media centers, DTS Connect is the perfect solution to enhance your entertainment experience by using your home theater's Audio/Video receiver. To deliver the best quality sound for users, ASRock ION 3D supports 7.1 CH HD Audio with DTS Connect technology, it will surely be your perfect choice for a professional HTPC.
HDMI 1.4a
Keeping you in tune with life, the ASRock ION 3D allows users to enjoy the next dimension in HTPC entertainment. ASRock ION 3D is equipped with HDMI 1.4a output which supports 3D formats for movie and game.
USB3.0
Supporting data transfer rate up to 5Gb/s and 10X faster than USB2.0 with optimized power efficiency. USB3.0 promises a major leap forward transfer speed and capacity.
ASRock AIWI
Turn Your iPhone Into Gamejoystick
Wanna play PC games like Wii? ASRock AIWI software makes your dreams come true! Using ASRock AIWI to connect your apple devices to the ASRock HTPC via WLAN, then you can interact with PC games with delicate touches and body motion while getting responsive shakes and vibrations that correspond to the game stores.
ASRock App Charger
Fast Charge & Charge Anytime
Simply installing the App Charger driver, it makes your iPhone charge up to 40% faster than before. ASRock App Charger supports continuous charging when your PC enters Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5). The App Charger technology has been fully applied on ASRock Full series motherboards.
High speed 1T2R WiFi 802.11n
ASRock ION 3D series mini HTPC is equipped with two invisible antennas (placed in a vertical/horizontal position) hidden inside the front panel, which provide larger signal coverage and faster connection speed. With the unrestricted-direction antennas design, the HTPC can be used as the wireless network receiver, as well as the network bandwidth sharing device. ASRock ION 3D series support 802.11n wireless network which provide better signal coverage and faster speed than ordinary network sharing devices.
Mini Size and Silent Operation
Mini size. Ultra silence. ASRock ION 3D has a volume of 2.5 liters only, which enables you to put inside the TV cabinet and connect it with LCD TV. Running a silent operation which is merely 24.1dB, ION 3D HTPC series ensure you an ultra silent computing environment as well.
Low Power Consumption
ASRock ION 3D series is an eco-friendly HTPC that reduces electricity cost through the unique power-saving components. Compared with desktop computer, ASRock ION 3D produces lower power consumption (merely 27W) and saves more power as well as electricity cost.
Ultra Durable
By using of 100% Japan-made high-quality conductive polymer capacitors which can extend the system life to at least 2.5 longer, ASRock ION 3D HTPC series provide the stability, reliability and longevity essential to meet the power, processor, and other components needs for running today’s most demanding applications and games.
