Memory
| Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Unbuffered memory |
Y |
| Non-ECC |
Y |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of chassis fan connectors |
1 |
| Parallel port via internal header |
Y |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| Number of COM connectors |
2 |
| CPU fan connector |
Y |
| Number of SATA III connectors |
2 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| ATX Power connector (24-pin) |
Y |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
UEFI AMI |
Performance
| Component for |
Mini PC |
| Cooling type |
Passive |
| Audio system |
Realtek ALC887 |
| PC health monitoring |
Voltage, Temperature, FAN, CPU |
| Motherboard chipset family |
Intel |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
| DVI-D ports quantity |
1 |
Processor
| Processor frequency |
1.6 GHz |
| Processor cores |
2 |
| Maximum number of SMP processors |
1 |
Packaging content
| Quick installation guide |
Y |
| Drivers included |
Y |
Graphics
| Discrete graphics support |
Y |
| Graphics adapter family |
Intel |
| On-board graphics adapter |
Y |
| DirectX version |
11.1 |
Expansion slots
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x1 (Gen 2.x) slots |
2 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Graphics |
HD Graphics |

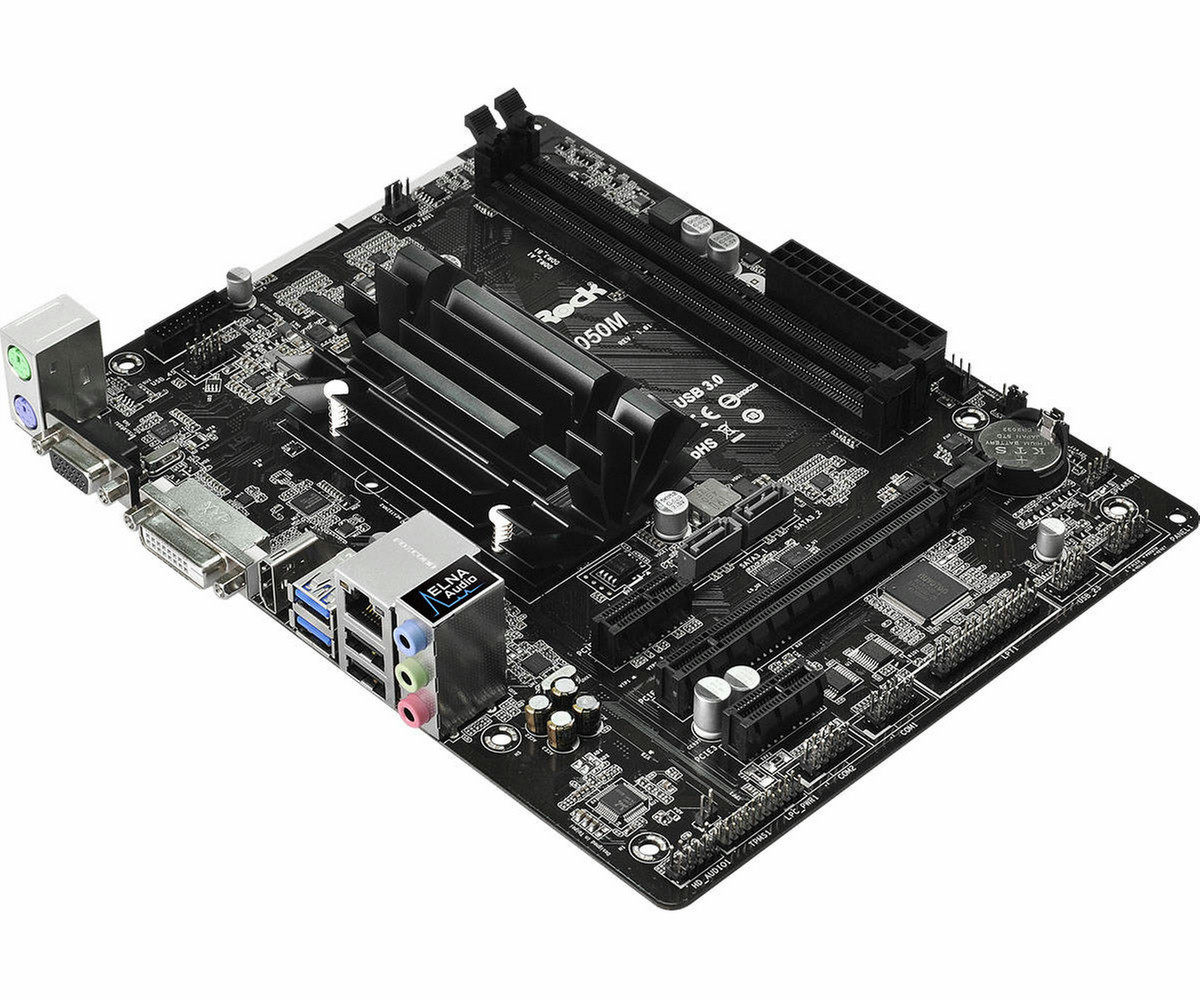

N3050M, Intel Dual-Core Processor N3050, 2 x DDR3/DDR3L 1600/1066, Intel 8th generation graphics, 2 x SATA3 6.0 Gb/s, Micro ATX
- Intel® Dual-Core Processor N3050
- Solid Capacitor design
- Supports DDR3/DDR3L 1600 memory, 2 DIMM slots
- 1 PCIe 2.0 x16, 2 PCIe 2.0 x1
- Graphics Output Options : D-Sub, DVI, HDMI
- Built-in Intel® 8th generation (Gen 8) graphics, DirectX 11.1, Pixel Shader 5.0
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 2 SATA3, 4 USB 3.0 (2 Front, 2 Rear), 6 USB 2.0 (4 Front, 2 Rear)
- 1 x TPM Header, 2 x COM Port Headers, 1 x Print Port Header
- Supports ASRock APP Shop, Full Spike Protection
