Networking
| Ethernet LAN data rates |
1000, 10, 100 Mbit/s |
| Wi-Fi |
Y |
Performance
| Audio output channels |
7.1 |
| Audio system |
HD w/ THX TruStudio Pro |
Processor
| Processor codename |
Arrandale |
| Processor cache type |
Smart Cache |
| Stepping |
K0 |
| Processor cores |
2 |
| Processor frequency |
2.4 GHz |
| Memory bandwidth supported by processor (max) |
17.1 GB/s |
| Maximum internal memory supported by processor |
8 GB |
| PCI Express slots version |
2.0 |
| Number of processors installed |
1 |
| Processor cache |
3 MB |
| Processor lithography |
32 nm |
| Thermal Design Power (TDP) |
35 W |
| Maximum number of PCI Express lanes |
1 |
| Memory clock speeds supported by processor |
800, 1066 MHz |
| Memory channels supported by processor |
Dual |
| Conflict Free processor |
N |
| PCI Express configurations |
1x16 |
| Tjunction |
90 °C |
| FSB Parity |
N |
| Number of Processing Die Transistors |
382 M |
| CPU multiplier (bus/core ratio) |
18 |
| Processor operating modes |
64-bit |
| ECC supported by processor |
N |
| Memory types supported by processor |
DDR3-SDRAM |
| Bus type |
DMI |
Memory
| Memory layout (slots x size) |
2 x 2 GB |
| Internal memory |
4 GB |
| Internal memory type |
DDR3-SDRAM |
| Memory clock speed |
1066 MHz |
| Memory slots |
2x SO-DIMM |
| Maximum internal memory |
8 GB |
Processor special features
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
Y |
| Supported instruction sets |
SSE4.1, SSE4.2 |
| Intel Rapid Storage Technology |
N |
| Graphics & IMC lithography |
45 nm |
| Intel Fast Memory Access |
Y |
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Physical Address Extension (PAE) |
36 bit |
| Intel Virtualization Technology (VT-x) |
Y |
| Processor package size |
37.5 mm |
| Processor ARK ID |
49020 |
| Processor code |
SLBUK |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Physical Address Extension (PAE) |
Y |
| Intel 64 |
Y |
| Intel Dual Display Capable Technology |
Y |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Smart Cache |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Storage
| Compatible memory cards |
MMC, MS PRO, SD |
| Total storage capacity |
500 GB |
| Card reader integrated |
Y |
| Storage media |
HDD |
| Hard drive capacity |
500 GB |
| Hard drive speed |
7200 RPM |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| Microphone in |
Y |
| eSATA ports quantity |
1 |
| DC-in jack |
Y |
| DVI port |
Y |
| Combo headphone/mic port |
N |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
Other features
| Graphics adapter family |
NVIDIA |
| Form factor |
3L sized PC |
| Networking features |
Gigabit Ethernet |
Graphics
| On-board graphics adapter family |
Intel HD Graphics |
| On-board graphics adapter |
Y |
| Discrete graphics adapter model |
NVIDIA GeForce GT 425M |
| On-board graphics adapter base frequency |
500 MHz |
| On-board graphics adapter dynamic frequency (max) |
667 MHz |
| Number of displays supported (on-board graphics) |
2 |
Packaging content
| Display included |
N |
| Handheld remote control |
Y |
Optical drive
| Optical drive type |
DVD Super Multi |
Power
| Power supply input voltage |
19 V |
| Power supply |
90 W |
Additionally
| System bus data transfer rate |
2.5 GT/s |
| InTru™ 3D Technology |
N |
| Processing die size |
81 mm² |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

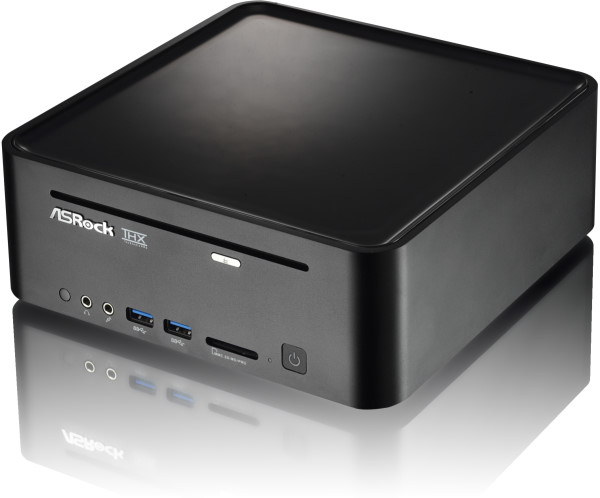

Vision 3D 137D, PC, Intel® Core™ i3-370M Mobile Processor, DVD Super Multi
Work
Your office, redefined. Create professional tasks in minutes, connect to the Internet instantly and do your office tasks efficiently, it’s all simple with Vision 3D!
Entertainment
Experience the absolutely realistic Blu-ray 3D display! Get immersed and involved in your perfect 3D HTPC entertainment!
Play
Gaming in your own style! Imagine playing games with the fantastic 3D display. Get the 3D gaming experience you’ve always wanted!
Leisure
Believe what you’ve heard! Vision 3D ensures stunning audio quality and lets you feel perfection!
