Memory
| Supported memory types |
DDR4-SDRAM |
| Unbuffered memory |
Y |
| ECC |
Y |
| Non-ECC |
Y |
| Number of memory slots |
8 |
| Maximum internal memory |
128 GB |
| Memory slots type |
DIMM |
| Memory channels |
Quad |
Internal I/O
| USB 2.0 connectors |
2 |
| Number of SATA III connectors |
10 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| TPM connector |
Y |
| PCI Express power connectors (6-pin) |
1 |
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Number of chassis fan connectors |
2 |
| 12V power connector |
Y |
| Number of M.2 (M) slots |
1 |
| Thunderbolt headers |
1 |
| Number of SATA Express connectors |
1 |
| Front panel audio connector |
Y |
| Number of COM connectors |
1 |
| CPU fan connector |
Y |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
UEFI AMI |
| BIOS switch button |
Y |
| Clear CMOS button |
Y |
Expansion slots
| PCI Express x16 slots |
6 |
| PCI Express x16 (Gen 3.x) slots |
5 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 dual x8/x8 mode |
Y |
Packaging content
| Drivers included |
Y |
| Quick installation guide |
Y |
| Utilities included |
Y |
Performance
| Intel Extreme Memory Profile (XMP) |
Y |
| Motherboard chipset family |
Intel |
| Intel Rapid Storage Technology |
Y |
| Overclocking features |
Untied Overclocking Technology |
| Audio system |
HD Audio with Content Protection (Realtek ALC1150 Audio Codec) |
| Component for |
PC |
Graphics
| Graphics adapter family |
NVIDIA, AMD |
| Discrete graphics support |
Y |
Back panel I/O ports
| Combo headphone/mic port |
Y |
| eSATA ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| PS/2 ports quantity |
2 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
Processor
| Maximum number of SMP processors |
1 |
Processor special features
| Intel® Turbo Boost Technology |
2.0 |
Additionally
| Chipset |
Intel X99 |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Ethernet LAN connection |
Y |

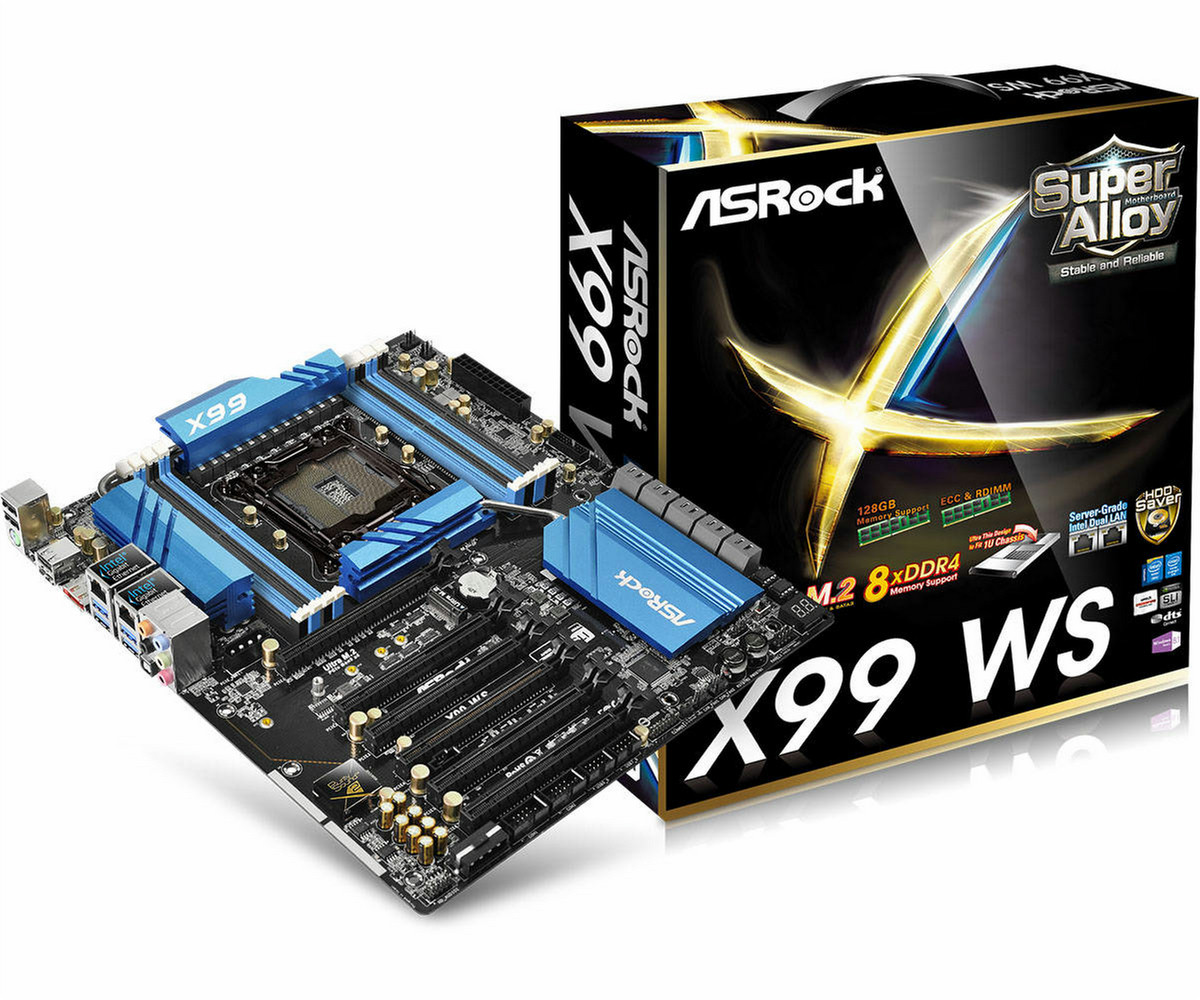

ATX, X99, LGA 2011-3, 8 x DDR4 DIMM, 5 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 1 x Optical SPDIF, 4 x USB 3.0, 4 x USB 2.0, 10 x SATA 3, Ultra M.2, eSATA, 7.1 CH HD Audio, 19.1 x 18.8 cm
<b>A-Tuning</b>
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.
<b>USB Key</b>
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
<b>Restart to UEFI</b>
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
<b>ASRock OMG (Online Management Guard)</b>
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
<b>UEFI Tech Service</b>
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
<b>Dehumidifier</b>
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
<b>Easy Driver Installer</b>
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
