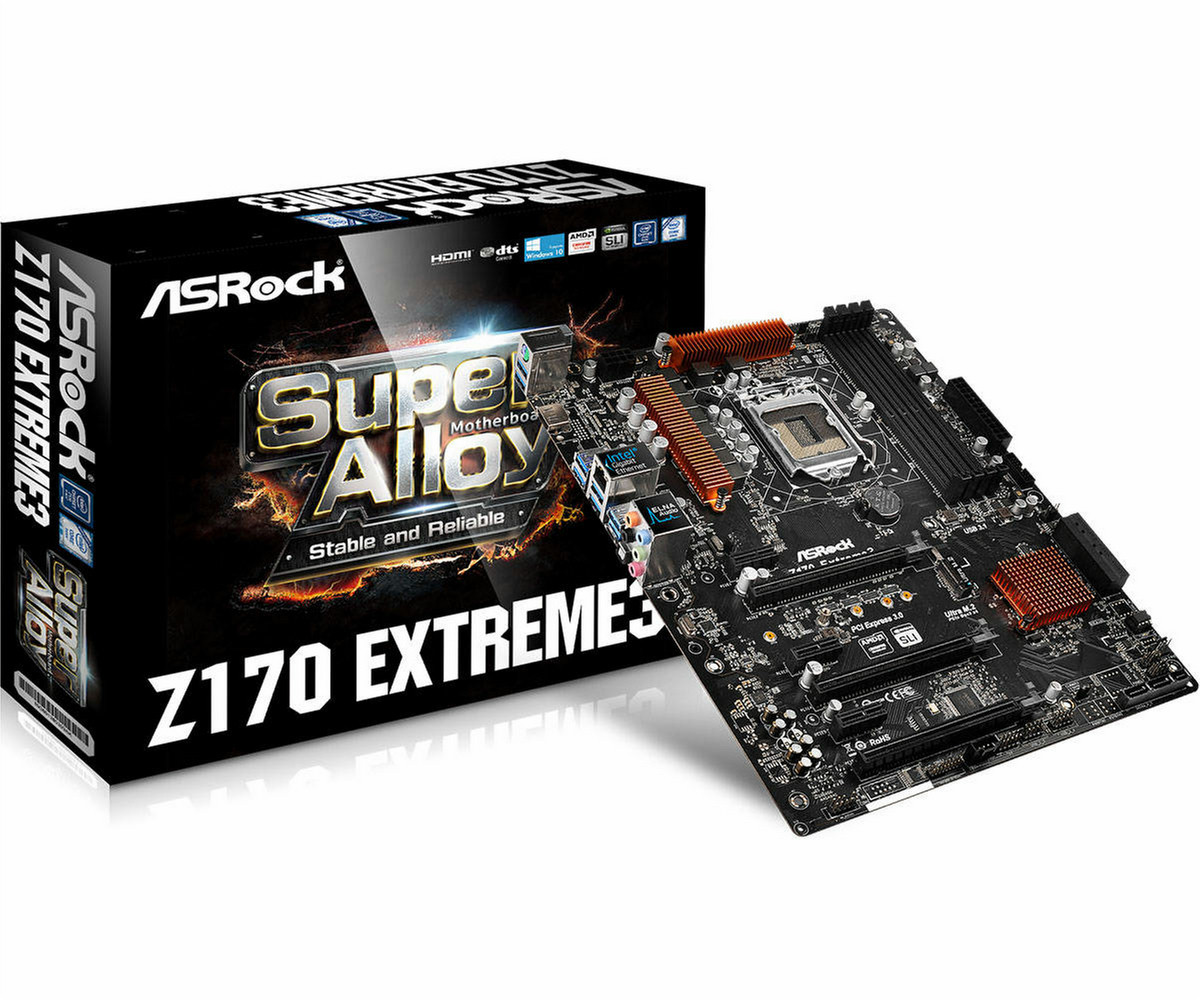

Asrock Z170 Extreme3 Intel Z170 LGA1151 ATX motherboard

ATX, Intel Z170, 4 x DDR4 DIMM, 3 x PCIe 3.0 x16, 3 x PCie 3.0 x1, HDMI, 7.1 CH HD Audio, 6 x SATA3, 3 x SATA Express, Ultra M.2, 2 x USB 3.1, 8 x USB 3.0, 30.5 x 24.4 cm Supports NVIDIA® Quadro and AMD FirePro Workstation Graphics Cards
Three PCIe Gen3 x16 slots that not only support ordinary graphics cards, but are also fully compatible with professional NVIDIA® Quadro and AMD FirePro workstation graphics solutions.

Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.

USB 3.1 10 Gb/s Type-A + C
A pair of onboard Type-A and Type-C USB 3.1 connectors for delivering up to 10Gbps data transfer rates.USB 3.1 doubles the data transfer rateUSB 3.1 Type-C doubles the charge speed!

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end 100 Series motherboards.

8 Power Phase Design
The power phase design offers smooth power delivery to the CPU, unmatched overclocking capabilities, lower temperature for advanced gamers, and reinforced system stability for taking on all sorts of arduous computing tasks.

DDR4 OC
Originally an Easter egg, now the hidden option DDR4 OC may be summoned from the UEFI using certain memory modules, such as Samsung or Kingston DDR4 memory DIMMs. It unlocks the hidden potential of those memory modules and maximizes the performance!

UEFI EZ Mode
EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

Supports DDR4 3866+ (OC)
Supports the latest DDR4 memory modules and most extreme memory performance!

Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.

ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.

Win 7 USB Patcher
Due to chipset limitation, when you want to install Windows® 7 on this MB, you may need to use “Win 7 USB Patcher” to create a new ISO file, or check this page for more details on how to install Windows® 7 OS.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

ASRock Cloud
ASRock Cloud* technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously!
