Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1866, 2133, 2400, 2800 MHz |
| Non-ECC |
Y |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Supported memory module capacities |
2GB, 4GB, 8GB |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
| ACPI version |
1.1 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
3 |
| Number of SATA III connectors |
6 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Number of chassis fan connectors |
2 |
| Front panel audio connector |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
1 |
Graphics
| Discrete graphics support |
Y |
| HDCP |
Y |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z87 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

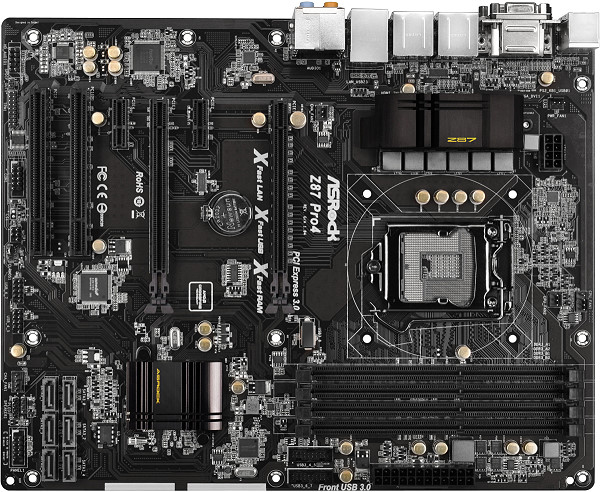

LGA1150, 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, DVI-D, D-Sub, HDMI, 6 x SATA3, 9 x USB 3.0, 8 x USB 2.0
This motherboard supports remote wake with the onboard Intel® LAN, so you can connect with your PC from anywhere in the world. You will be able to wake up your PC or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
Imagine yourself as a desperado riding into the sunset, an outcast of the society exiled from your country, or simply at the groceries two blocks away from home. You miss your personal computer so much and you'll need Home Cloud for the following real world scenarios:
Mail
Keep your stored mail near at hand whenever you need it.
Multimedia
Stream your secret stash of vids, music and pics.
TV
Watch your favorite local TV programs by connecting to your PC.
Documents
Access or send files remotely anywhere.
Monitor
Keep an eye on your pets or children when you are away from home.
