Performance
Motherboard form factor |
ATX |
Intel Rapid Storage Technology |
Y |
Motherboard chipset family |
Intel |
Intel Extreme Memory Profile (XMP) |
Y |
Audio system |
Realtek ALC1150 |
Component for |
PC |
Memory
Supported memory clock speeds |
1066, 1333, 1600, 1866, 2133, 2400, 2800, 2933, 3200 MHz |
Non-ECC |
Y |
Unbuffered memory |
Y |
Supported memory types |
DDR3-SDRAM, DDR3L-SDRAM |
Memory channels |
Dual |
Memory slots type |
DIMM |
Number of memory slots |
4 |
Maximum internal memory |
32 GB |
BIOS
BIOS memory size |
16 MB |
BIOS type |
UEFI AMI |
ACPI version |
1.1 |
Internal I/O
USB 2.0 connectors |
2 |
ATX Power connector (24-pin) |
Y |
PCI Express power connectors (6-pin) |
1 |
TPM connector |
Y |
USB 3.0 (3.1 Gen 1) connectors |
2 |
Number of SATA III connectors |
10 |
CPU fan connector |
Y |
Number of COM connectors |
1 |
Front panel audio connector |
Y |
Number of SATA Express connectors |
1 |
Thunderbolt headers |
1 |
Number of M.2 (M) slots |
1 |
Front panel connector |
Y |
Graphics
DirectX version |
11.1 |
Maximum graphics adapter memory |
512 MB |
Graphics adapter family |
Intel |
Discrete graphics support |
Y |
HDCP |
Y |
Number of displays supported |
3 |
Back panel I/O ports
eSATA/USB 2.0 ports quantity |
1 |
PS/2 ports quantity |
1 |
S/PDIF out port |
Y |
DVI-I ports quantity |
1 |
DisplayPorts quantity |
1 |
USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
HDMI ports quantity |
1 |
DisplayPort version |
1.2 |
Processor special features
Conflict Free |
Y |
Intel® Smart Response Technology |
Y |
Intel® Turbo Boost Technology |
2.0 |
Intel vPro Technology |
N |
Expansion slots
PCI Express x1 (Gen 2.x) slots |
2 |
PCI Express x16 (Gen 2.x) slots |
1 |
PCI Express x16 (Gen 3.x) slots |
2 |
Technical details
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Processor
Intel Core i3/i5/i7 series |
i3-4xxx, i3-5xxx, i5-4xxx, i5-5xxx, i7-4xxx, i7-5xxx |
Additionally
Chipset |
Intel Z97 |
Graphics |
HD Graphics |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
2 |

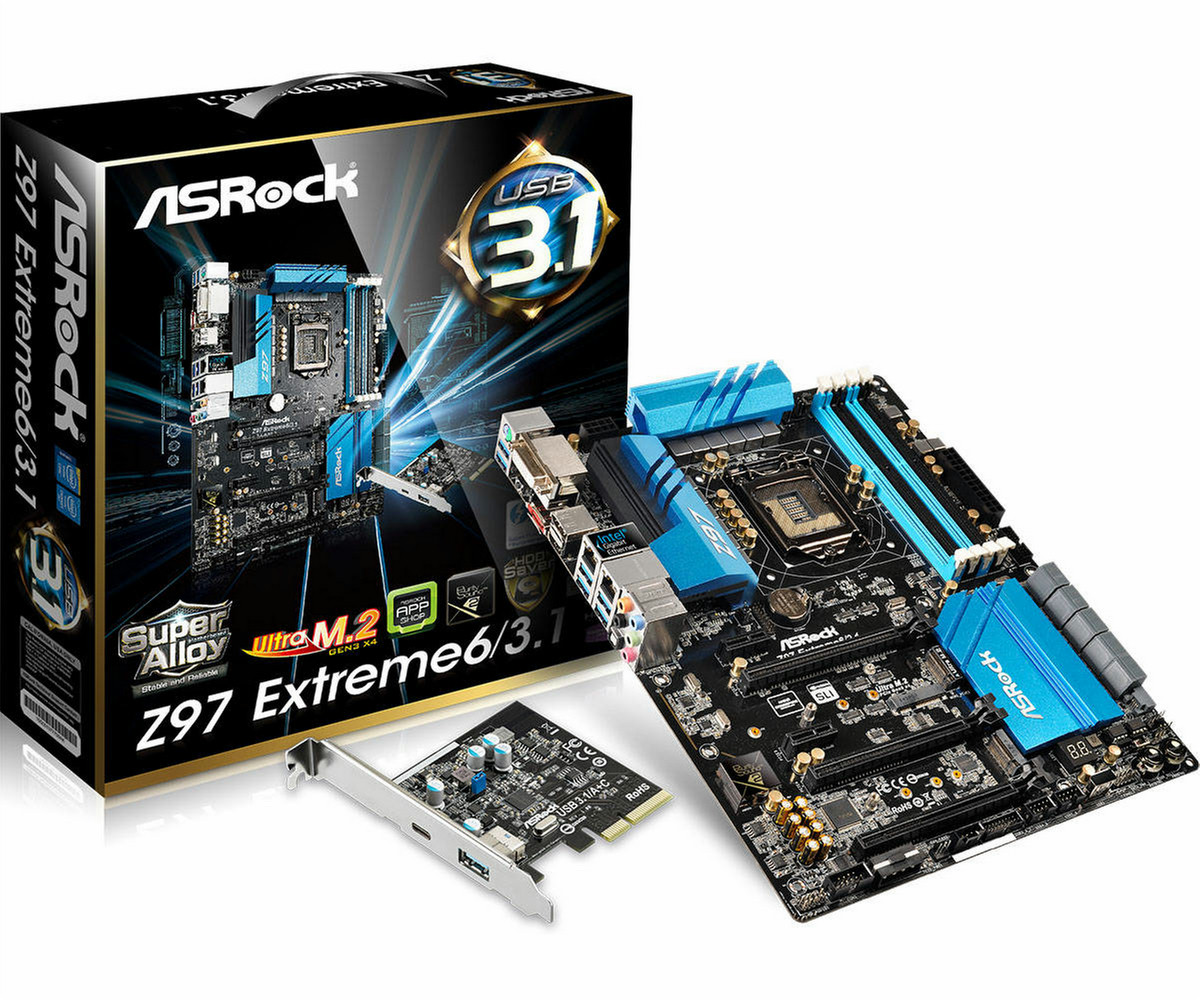

Chipset Intel Z97, Socket 1150, 4 DIMM DDR3/DDR3L, Dual, 32GB, Intel HD Graphics, 512MB, 4096 x 2304, ATX
- ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Alloy Choke
- Dual-Stack MOSFET (DSM)
- NexFET™ MOSFET
- Nichicon 12K Platinum Caps
- Sapphire Black PCB
- Supports 5th Generation, New 4th and 4th Generation Intel® Processors (Socket 1150)
- Digi Power, 12 Power Phase design
- Supports Dual Channel DDR3/DDR3L 3200+(OC),
- 2 PCIe 3.0 x16, 1 PCIe 2.0 x16, 2 PCIe 2.0 x1, 1 mini-PCIe,
- Supports AMD Quad CrossFireX™ and NVIDIA® Quad SLI™
- Graphics Output Options: DVI-I, HDMI, DisplayPort 1.2
- 7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity Sound™ 2 & DTS Connect
- Dual LAN: 1 Intel® Gigabit LAN, 1 Realtek Gigabit LAN
- 1 SATA Express, 10 SATA3, 1 eSATA, 1 Ultra M.2 (Gen3 x4), 1 M.2 (Gen2 x2 & SATA3)
- 2 USB 3.1 10Gb/s (1 Type-A + 1 Type-C) (Supported by the bundled ASRock USB 3.1/A+C), 10 USB 3.0 (4 Front, 6 Rear), 5 USB 2.0 (4 Front, 1 Vertical Type A)
- 1 COM Port Header, 1 TPM Header, 1 Thunderbolt™ AIC Connector
- Supports ASRock HDD Saver Technology, Full Spike Protection, APP Shop
A PCIe x4 add on card that provides a Type A USB 3.1 connector for delivering up to 10Gbps data transfer rates, plus a Type C USB 3.1 connector for plugging mobile devices.
XXL Aluminum Alloy Heatsink Design
The extra large aluminum alloy heatsinks take away heat dramatically. As the MOSFETs and chipsets areas are well covered by these heatsinks to protect them from overheating, MOSFET and chipsets can perform with lower temperature, and your motherboard and system will be more stable and reliable.
Premium Alloy Choke
The new generation alloy chokes effectively increase up to 90% saturation current and feature a highly magnetic and heat resistant design, making the motherboard more efficient, stable and reliable.
Dual-Stack MOSFET for CPU Power
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
NexFET MOSFET for Memory Power
The next generation NexFET MOSFETs control the power supply to DRAM slots more efficiently. They provide lower RDS(on) 2.9 mΩ, delivering higher efficiency and lower temperature.
NexFET MOSFETs in memory areas use a special design for protecting them from electrostatic discharge and offer up to 7.5 times the ESD protection levels compared to traditional MOSFETs.
* Human Body Mode.
Nichicon 12K Platinum Caps
Supreme 12K platinum capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Platinum Caps that offer 20% longer lifespans and provide more stability and reliability.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Ultra M.2 (PCIe Gen3 x4)
The World’s Fastest M.2 Socket - PCIe Gen3 x4
The onboard M.2 socket is a new interface for connecting Next Generation Form Factor (NGFF) SSDs or other devices. ASRock is the first in the world to implement PCIe Gen3 x4 M.2 socket on motherboards. The ultimate Ultra M.2 interface pushes the speed up to 32Gb/s which is 6X faster compared to other M.2 Gen2 x1 solutions that are limited to 5Gb/s.
Purity Sound™ 2
Purity Sound™ 2 includes 7.1 CH HD audio with Realtek ALC1150 audio codec, 115dB SNR DAC with Differential Amplifier, TI® NE5532 Premium Headset Amplifier, cap less Direct Drive technology, EMI shielding cover, PCB isolate shielding and DTS Connect. As Nichicon audio capacitors are what every audiophile has been longing for on a PC, ASRock applied these high quality capacitors for Purity Sound™ 2.
This frequency response chart was tested with 32 ohm normal headphones. It indicates how traditional audio solution's frequency response drops drastically at low frequencies. Compared to traditional audio solution's (2.0dB) at 20 Hz bass low freq area, Purity Sound™ 2 still maintains its frequency response (0.4dB) and provides better bass with the TI® NE5532 amplifier, improving the bass quality by 20% (1.6dB)!
SATA Express Connector
The SATA Express* interface provides PCIe Gen2 x2 (10Gb/s) data transfer speed. This motherboard offers the latest SATA Express connector to enthusiasts to enjoy the ultimate performance.
mini-PCIe Slot
The mini-PCIe slot is a convenient peripheral interface that can be used for connecting WiFi card.
Dual LAN
Dual Gigabit LAN – This motherboard provides two gigabit LAN ports, Intel® I218V & Realtek RTL8111GR.
15μ Gold Contact in DIMM & VGA PCIe Slot (PCIE2)
Unlike other motherboards come with only 3-4µ gold contact, this motherboard is coated with 15µ gold contact in the DRAM slots and PCIe x16 slot, thus providing better anti-oxidation protection than usual.
Thunderbolt™ Ready
This motherboard has been certified with an ASUS ThunderboltEX II and is compatible with other third party Thunderbolt™ devices as well. With the Thunderbolt™ 2 Add-in-Card, it may support up to six daisy chained Thunderbolt™ devices up to 10 Gbps
ASRock Thunderbolt™ Technology Expert
- Up to 10 Gbps : The fastest connection to your PC
- Bi-directional data transfer with PCI Express and DisplayPort
- Daisy Chain : Up to 6 Thunderbolt™ devices
- Large, high-resolution displays (Supports 4K)
ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM and a whole lot more.
USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!
Restart to UEFI
Fast Boot is so fast that it is impossible for users to enter the UEFI setup utility during POST. Therefore, ASRock Restart to UEFI technology allows users to easily enter the UEFI setup utility automatically when turning on the PC next time. It is designed for those who constantly need to enter the UEFI setup utility.
ASRock OMG (Online Management Guard)
Limit and control your children's time spent on the internet. ASRock OMG (Online Management Guard) technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.
UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.
Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!
ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.
Tired of listening to crappy audio that makes your ears bleed? Experience high-quality surround sound from your personal computer. DTS Connect is a blanket name for a two-part system, including DTS Interactive and DTS Neo:PC, it is used on the computer platform only, in order to convert PC audio into the DTS format.
This motherboard supports HDMI™ (High-Definition Multimedia Interface) which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.
