Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Other features
| WLAN data transfer rates supported |
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 144, 270, 300 Mbit/s |
| Mobile network connection |
N |
| xDSL connection |
N |
| Bandwidth (second) |
2.4835 GHz |
| Bandwidth (first) |
2.4 GHz |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
10 dBi |
Management features
| Reset button |
Y |
| WPS push button |
Y |
| Web-based management |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
4 10/100Base-TX Ports with 1-port PoE, up to 300Mbps, IPv4 / IPv6, 2 x 5dBi, 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK, 802.1x
Industrial Wireless LAN

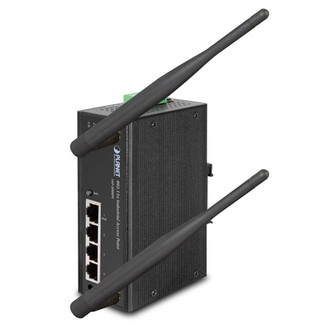

For robust wireless access, PLANET IAP-2000PE Industrial Access Point brings users a new choice. The IAP-2000PE is specially designed for the Wi-Fi application over a TCP/IP network in a hardened environment. The IAP-2000PE comes with 802.11n Wireless interface for up to 300Mbps wireless performance and provides 4 10/100Mbps copper ports with 1-port IEEE 802.3af PoE PD(Powered Device) inject interface delivered in an IP30 rugged strong case. The IAP-2000PE is rated to operate at the temperature ranging from -10 to 60 degrees C. The IAP-2000PE is the ideal solution to wireless transmission in any harsh industrial environment.
IPv6 / IPv4 Web and SNMP Management
The IAP-2000PE supports both IPv6 and IPv4 web management functions. Its SNMP feature allows the system administrator to remotely monitor and control the network devices more efficiently. With the easy and friendly management interface and plenty of management functions included, the IAP-2000PE is the best choice for system Integrators to build the large wireless service and for SMBs to connect with the IPv6 network.
Steady and Wide-ranging Wireless Network Communication
The IAP-2000PE features 802.11n radio with 2T2R antenna technology compliant with 802.11b/g/n standards. It is equipped with two external 5dBi High-Gain antennas providing strong signal and excellent performance even in the long range or bad environment. With detachable RP-SMA connector design in the IAP-2000PE, it allows users to manually exchange higher gain antenna for further wireless coverage range.
Multiple Operating Modes
The IAP-2000PE supports multiple wireless communication connectivities: Wireless AP, Wireless Repeater, WDS Point-to-Point (PtP) and Point-to-Multipoint (PtMP), allowing various applications that give users more comprehensive experience. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.
Wide Range of Wireless Security Supports
To secure the wireless communication, the IAP-2000PE supports up-to-date encryption, such as WPA-PSK / WPA2-PSK with TKIP/AES encryption. In order to simplify the security settings, the IAP-2000PE supports Wi-Fi Protected Setup (WPS), which has two connections: PBC and PIN. By just clicking the options, the secure connection between AP and wireless client will be built immediately.
Easy Installation and Wide Range of Power Usages
The IAP-2000PE is packaged in a strong IP 30 case that allows either DIN rail or panel mounting for efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operations. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for highly available applications requiring dual or backup power inputs.
Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af Power over Ethernet standard, the IAP-2000PE can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless AP deployment becomes more flexible and worries free from the power outlet locations.
