Management features
| Multicast support |
Y |
| MIB support |
RFC-1213, IF, RFC-1493, RFC-2863 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Switching capacity |
16 Gbit/s |
| Throughput |
11.9 Mpps |
Networking
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

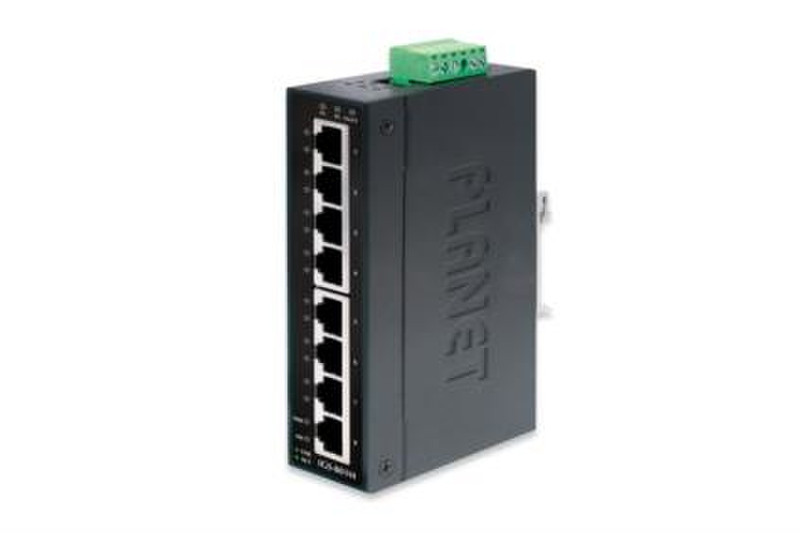

ASSMANN Electronic IGS-801T. Switch type: Managed network switch, Switch layer: L2, MIB support: RFC-1213, IF, RFC-1493, RFC-2863. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEE. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s, Throughput: 11.9 Mpps. Colour of product: Black, International Protection (IP) code: IP30
