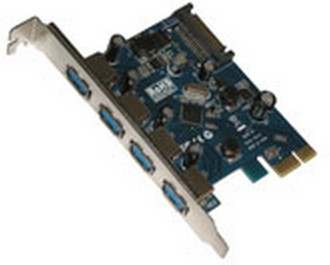

Astrotek 4x USB3.0 PCIe

4x USB3.0 PCIe RENESAS - Chipset : RENESAS 720201.
- PCI Express Base Specification 2.0.
- 4x USB 3.0 Downstream Port.
- Compliant with USB specification 3.0 rev. 1.0 compliant.
- Max. 5Gb/s transfer rate per port.
- Supports Super-speed (5Gb/s), High-speed (480Mb/s), Full-speed (12Mb/s), & Low-speed (1.5Mb/s).
- Supports USB 3.0, USB 2.0 & USB 1.1 devices.
- Compliant with Intel xHCI (eXtensible Host Controller Interface) specifications Revision 1.0.
- Supports USB Battery Charging Specification Rev. 1.2.
- Supports PCI Bus Power Management Interface Specification rev. 1.2.
- Supports USB Wake-up function(total max. 5V/600mA).
- Different USB Port Power configurations : Both on-board 5V/3.6A regulation & ATX SATA/Molex power connector; Or, Only on-board 5V/3.6A regulation; Or, Only ATX SATA/Molex power connector.
- On-board 12V to 5V/3.6A regulation for each USB 3.0 5V/900mA power consumption.
- 1.5A MOSFET Power Switch Protection & Over-current sensing for each port.
- Supports Hot Swap, Plug & Play.
- Drivers support Windows XP, Vista, 7, & Server 2008 Release 2 (x86 & x64).
- Linux Kernel 2.6.31 native support.
