Power
| Power supply type |
Auto Switch, Redundant |
| Power supply |
700 W |
| Number of power supply units |
1 |
Storage
| Hard drive interface |
SCSI |
| Hot-swap |
Y |
Processor
| Processor frequency |
3.6 GHz |
Ports & interfaces
| Expansion slots |
3 x PCI-X 64-bit / 133, 100, 66MHz\n1 x SODIMM socket for ZCR\n1 x PCI-X 64 bit / 133MHz, Support Low Profile Card |
Other features
| Hot-swap hard drive bays |
8 |
| Mac compatibility |
N |
| Hard disk drive type |
Hot Swap SCSI |
| DVD interface type |
Slim |
| Non-operating relative humidity (non-condensing) |
20 - 90% |
Certificates
| Electromagnetic emissions |
CE, EN55022 & EN55024 |
Memory
| Internal memory |
16 GB |
| Internal memory type |
DDR-SDRAM |

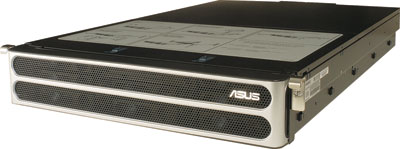

AP2400R-E2 AS8 dual xeon, Dual Intel® Xeon™ 604-pins, 3,6 GHz+.
It is a challenge to combine powerful functions in this limited 2U system and still keep the stability; however, ASUS' special multi-fan module design successfully solves the thermal problem, and the redundancy system design makes AP2400R-E2 (AS8) work more reliably than any other 2U servers.
AP2400R-E2 (AS8) supports dual Intel® Xeon™ processors with 800MHz FSB up to 3.6GB and also supports up to 16GB DDR RAM, which offer the most powerful computing ability. AP2400R-E2 (AS8) has up to 8 hot-swap SCSI HDD expansion capability, which provides 2 more bays compare to the other brands.
Adaptec® SO-DIMM ZCR supported provides customer affordable RAID upgrade.
System administrator or service engineer can use single finger to pull out the 2U server system from the Rack.
Any error of the 7pcs hot-swap middle fans can be identified by status LED. Each middle fan was equipped with a holder, which allows to hot-swap, hot-plug, or replace quickly and easily while the system is half pulled out from the 19" Rack.
