ASUS ASMB3-SOL Plus (V3)

ASMB3-SOL PLUS (V3) - RAM - 40KB, ROM - 256KB, I2C, Timer, UART, LPC, Lin Pin Count, IPMI 2.0 IPMI 2.0 Management Card with Out-of-Band Management Capability
Through the integration of ASMB3-SOL PLUS (V3) (IPMI) and ASWM (ASUS System Web-based Management), MIS is capable of monitoring the running status of major components via LAN or Serial Port, such as CPU and memory utilization, storage capacity and networking transfer rate...etc. MIS can also pre-configure the critical values for the monitored items. When system event occurs, MIS will be notified by SNMP trap and take necessary pro-active actions to maintain the system in health all the time.

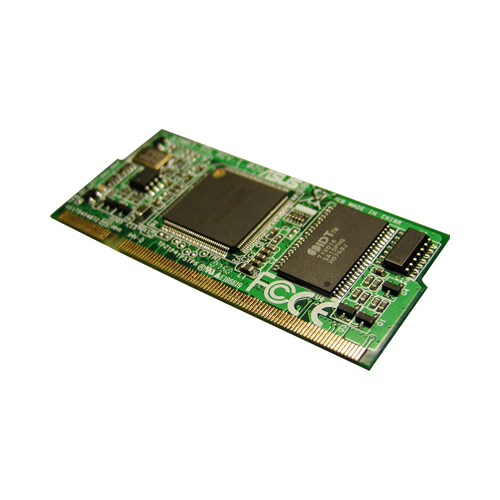

The ASMB3-SOL PLUS (V3) module is supported by the new generation ASUS server systems. Designed with SO-DIMM interface, the ASMB3 module is horizontally populated on the motherboard. There is no system expansion slot to be sacrificed for advanced server management function. Featured with the slim dimension, ASMB3-SOL PLUS (V3) conserves space significantly and keeps good system thermal flow path.

The ASMB3-SOL PLUS (V3) module offers advanced server management functions including "remote power on/off/reset", "remote control via SOL" (Serial-over-LAN) and "remote SEL" (system event log reading when the system is out-of-band). Through enhanced data encryption (in Advanced Encryption Standard), the internet security can be protected. Moreover, with the help of ASUS P505 PDA phone, ASMB3-SOL PLUS (V3) easily reduces the cost of manpower by event-notification to standard mobile phone via SMS system. Furthermore, the module supports Dynamic Host Configuration Protocol (DHCP), which avoids manually assigning IP address by setting DHCP mode to receive IP address automatically.

Interrupt - I2C, Timer, UART, LPC
System timer - 16-bit.
